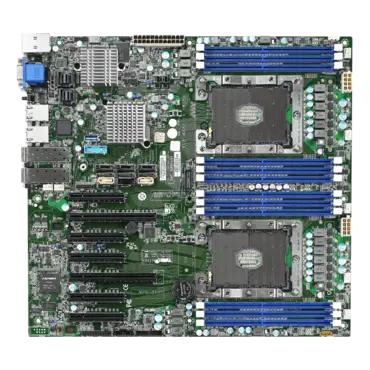

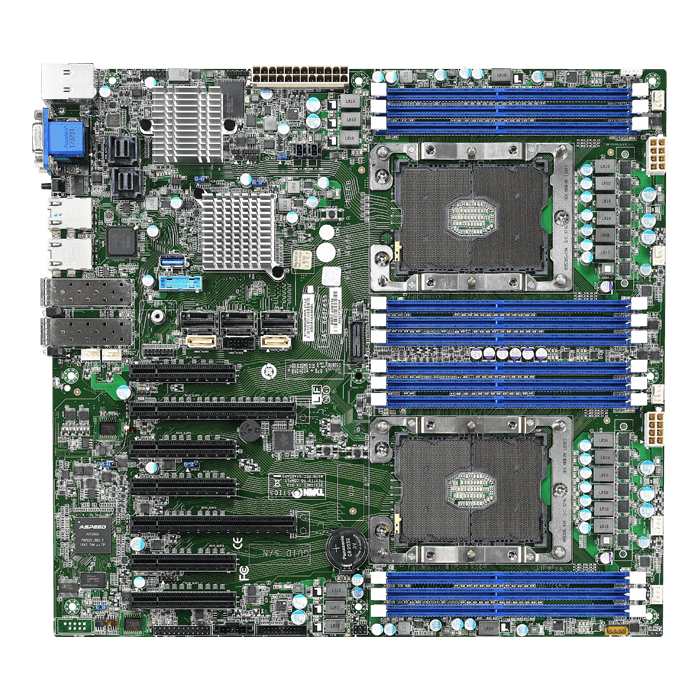

Tempest CX S7103 (S7103WGM2NR-2F-L2), Intel C622, LGA 3647 / 2, DDR4-2666 1.5TB 3DS LRDIMM / 12, SATADOM / 2, VGA, 10GbLAN SFP+ / 2, E-ATX Retail
Quantity:
- SKU: 12270395
- Manufacturer: TYAN
- MPN: S7103WGM2NR-2F-L2
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$755.97
- Industry Standard 12" x 13" EATX Form Factor
- Dual Socket Xeon Scalable Processor Family
- (12) DIMM slots supporting up to 1.5TB RAM
- (7) PCIe slots, including (2) x16 + (5) x8 slots
- AST2500 BMC with Redfish support
- (2) 10GBase-SFP+ Ethernet Ports
- (14) SATA 6G & (8) 12G LSI SAS Ports
- NVDIMM Support
| Processor | Q'ty / Socket Type | (2) LGA3647 | ||||
| Supported CPU Series | Intel Xeon Scalable Processor | |||||
| Thermal Design Power (TDP) Wattage | Max up to 205W | |||||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | |||||
| Chipset | PCH | Intel C622 | ||||
| Memory | Supported DIMM Qty | (6)+(6) DIMM slots | ||||
| DIMM Type / Speed | DDR4 ECC RDIMM/LRDIMM 2666/2400/2133 | |||||
| Capacity | Up to 384GB RDIMM/ 768GB LRDIMM *Follow latest Intel DDR4 Memory POR | |||||
| Memory channel | 6 Channels per CPU | |||||
| Memory voltage | 1.2V | |||||
| Expansion Slots | PCI-E | (2) PCI-E Gen3 x16 slots / (5) PCI-E Gen3 x8 slots | ||||
| LAN | Q'ty / Port | (2) 10GbE ports, (1) GbE port dedicated for IPMI | ||||
| Controller | Intel I350-AM2 / Intel C622 PCH | |||||
| PHY | Realtek RTL8211E | |||||
| Storage | SAS | Connector | (2) Mini-SAS HD connectors (totally support 8 ports) | |||
| Controller | LSI SAS3008 | |||||
| Speed | 12.0 Gb/s | |||||
| RAID | RAID 0/1/10 (LSI Integrated RAID) | |||||
| SATA | Connector | (2) Mini-SAS (8-ports) | ||||
| Controller | Intel C622 | |||||
| Speed | 6.0 Gb/s | |||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | |||||
| sSATA | Connector | (1) Mini-SAS (4-ports) / (2) SATA-DOM | ||||
| Controller | Intel C622 | |||||
| Speed | 6.0 Gb/s | |||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | |||||
| Graphic | Connector type | D-Sub 15-pin | ||||
| Resolution | Up to 1920x1200 | |||||
| Chipset | Aspeed AST2500 | |||||
| Input /Output | Others | (1) ID button | ||||
| USB | (2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear) / (1) Type-A USB3.0 port | |||||
| COM | (1) DB-9 COM Connector | |||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | |||||
| RJ-45 | (1) GbE port dedicated for IPMI | |||||
| Front Panel | (1) 2x12-pin SSI front panel header | |||||
| SATA | (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors | |||||
| Power | SSI/ATX 24-pin + 8-pin power connectors | |||||
| SFP+ | (2) 10GbE ports | |||||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | ||||
| System Monitoring | Chipset | Aspeed AST2500 | ||||
| Fan | Total (1) 2 x 10-pin headers | |||||
| Temperature | Monitors temperature for CPU & memory & system environment | |||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |||||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |||||
| Others | Watchdog timer support | |||||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |||||
| BIOS | Brand / ROM size | AMI / 32MB | ||||
| Feature | Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S0,S1,S5 | |||||
| Physical Dimension | Form Factor | EATX | ||||
| Board Dimension | 12"x13" (305x330mm) | |||||
| Regulation | FCC (DoC) | Class A | ||||
| CE (DoC) | Class A | |||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | ||||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |||||
| RoHS | RoHS 6/6 Compliant | Yes | ||||
| Operating System | OS supported list | Please refer to our AVL support lists. | ||||
| Package Contains | Motherboard | (1) S7103 Motherboard | ||||
| Manual | (1) Quick Installation Guide | |||||
| Installation CD | (1) TYAN Device Driver CD | |||||
| I/O Shield | (1) I/O Shield | |||||
| Cable | SATA | (2) SATA signal cables | ||||
