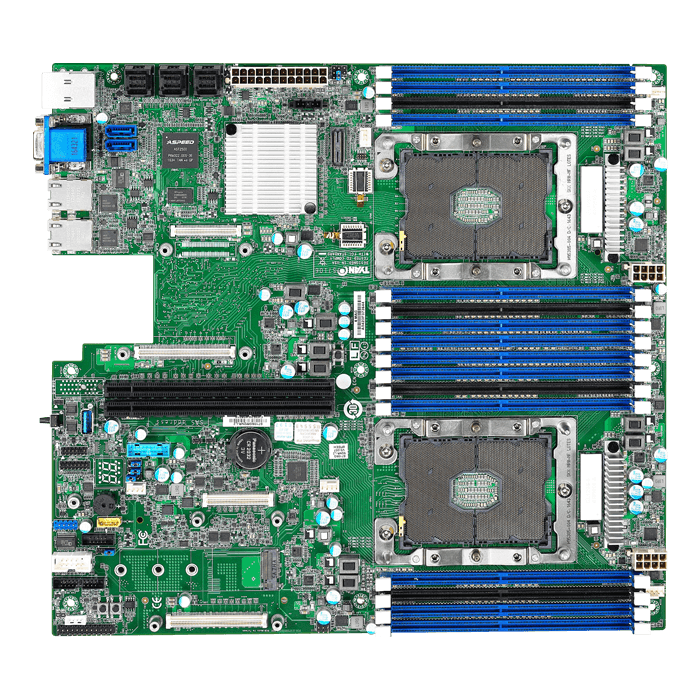

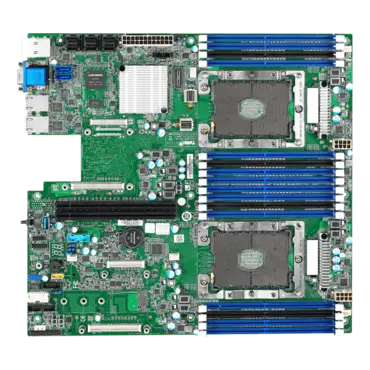

Tempest CX S7106 (S7106GM2NR), Intel C621, LGA 3647 / 2, DDR4-2666 2TB 3DS LRDIMM / 16, VGA, M.2, GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 11633699
- Manufacturer: TYAN
- MPN: S7106GM2NR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$671.47
- Industry Standard 12" x 13" EATX Form Factor
- Dual Socket Xeon Scalable Processor Family
- (16) DIMM slots supporting up to 2TB DDR4 RAM
- (2) PCIe x24 slots for riser card deployment
- (14) SATA ports & (1) NVMe M.2 port
- (1) PCIe x16 OCP LAN Mezzanine supporting speeds up to 100Gb/s
- (1) PCIe x16 Storage Mezzanine for SAS or NVMe Retimer
- AST2500 BMC with IPMI 2.0 and Redfish
| Q'ty / Socket Type | (2) LGA3647 | |||||
| Supported CPU Series | Intel Xeon Scalable Processor | |||||
| Thermal Design Power (TDP) Wattage | Max up to 205W | |||||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | |||||
| Chipset | PCH | Intel C621 | ||||
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots | ||||
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 | |||||
| Capacity | Up to 512GB RDIMM/ 1,024GB LRDIMM/ 768GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | |||||
| Memory channel | 6 Channels per CPU | |||||
| Memory voltage | 1.2V | |||||
| Expansion Slots | PCI-E | (2) PCI-E Gen3 x24 slots | ||||
| Others: | (2) PCI-E Gen3 x16 OCP 2.0 slots (conn.A+conn.B) | |||||
| LAN | Q'ty / Port | (2) GbE ports, (1) PHY dedicated for IPMI | ||||
| Controller | Intel I210-AT | |||||
| PHY | Realtek RTL8211E | |||||
| Storage | SATA | Connector | (2) Mini-SAS HD (8-ports) | |||
| Controller | Intel C621 | |||||
| Speed | 6.0 Gb/s | |||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | |||||
| sSATA | Connector | (2) SATA-III / (1) Mini-SAS HD (4-ports) | ||||
| Controller | Intel C621 | |||||
| Speed | 6.0 Gb/s | |||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | |||||
| M.2 connector | (1) M.2 connector (2280/2260/2242) by PCI-E interface | |||||
| Graphic | Connector type | D-Sub 15-pin | ||||
| Resolution | Up to 1920x1200 | |||||
| Chipset | Aspeed AST2500 | |||||
| Input /Output | Others | (1) UID button | ||||

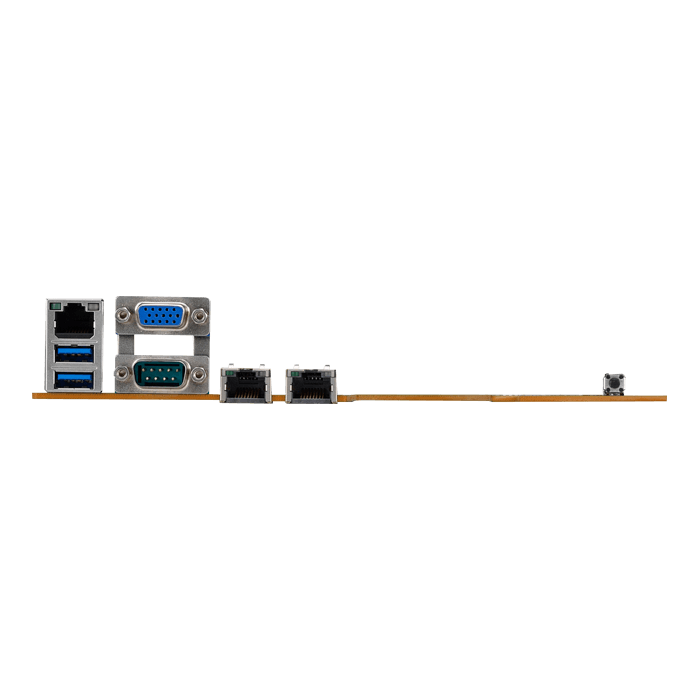

| USB | (2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear) / (2) USB 2.0 ports (via cable) / (1) Type-A USB3.0 port | |||||
| COM | (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) | |||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) / (1) VGA port (via cable) | |||||
| RJ-45 | (2) GbE ports, (1) Dedicated for IPMI | |||||
| Front Panel | (1) 2x12-pin SSI front panel header | |||||
| SATA | (2) SATA-III connectors + (3) Mini-SAS HD (4-in-1) connectors | |||||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | |||||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | ||||
| System Monitoring | Chipset | Aspeed AST2500 | ||||
| Fan | Total (5) 4-pin headers | |||||
| Temperature | Monitors temperature for CPU & memory & system environment | |||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |||||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |||||
| Others | Watchdog timer support | |||||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |||||
| BIOS | Brand / ROM size | AMI / 32MB | ||||
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 | |||||
| Physical Dimension | Form Factor | EATX | ||||
| Board Dimension | 12"x13" (305x330mm) | |||||
| Regulation | FCC (DoC) | Class B | ||||
| CE (DoC) | Class A | |||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | ||||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |||||
| RoHS | RoHS 6/6 Compliant | Yes | ||||
| Operating System | OS supported list | Please refer to our AVL support lists. | ||||
| Package Contains | Motherboard | (1) S7106 Motherboard | ||||
| Manual | (1) Quick Installation Guide | |||||
| Installation CD | (1) TYAN Device Driver CD | |||||
| I/O Shield | (1) I/O Shield | |||||
| Cable | SATA | (2) SATA signal cables | ||||
