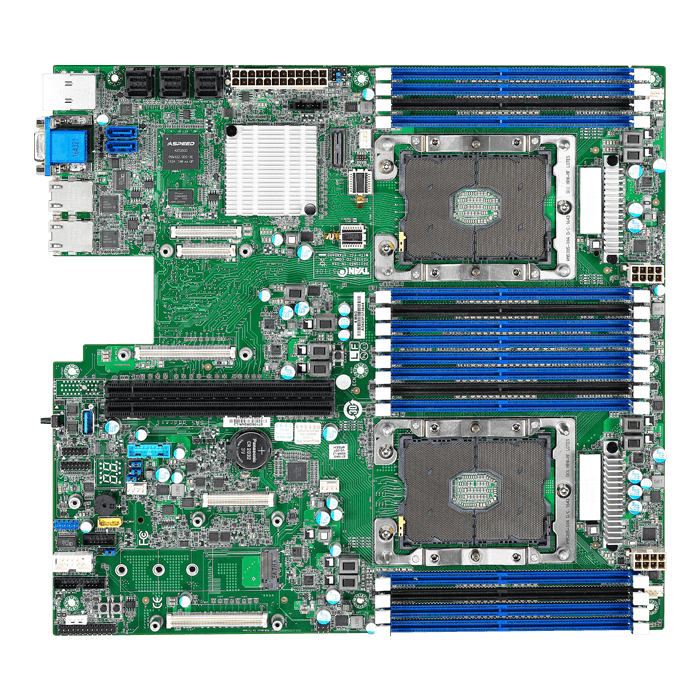

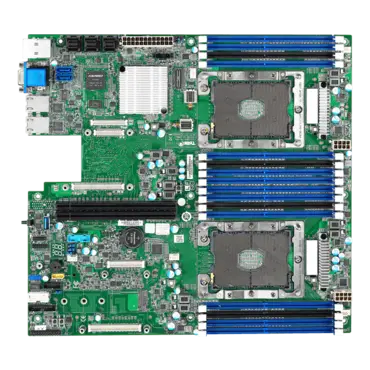

Tempest CX S7106 (S7106GM2NR-L2), Intel C622, LGA 3647 / 2, DDR4-2666 2TB 3DS LRDIMM / 16, VGA, M.2, GbLAN / 2, E-ATX Retail

SKU: 12247758

Manufacturer: TYAN

MPN: S7106GM2NR-L2

Availability: Unknown


Price: $533.59
or as low as $17/month
Quantity:
  • Industry Standard 12" x 13" EATX Form Factor
  • Dual Socket Xeon Scalable Processor Family
  • (16) DIMM slots supporting up to 2TB DDR4 RAM
  • (2) PCIe x24 slots for riser card deployment
  • (14) SATA ports & (1) NVMe M.2 port
  • (1) PCIe x16 OCP LAN Mezzanine supporting speeds up to 100Gb/s
  • (1) PCIe x16 Storage Mezzanine for SAS or NVMe Retimer
  • AST2500 BMC with IPMI 2.0 and Redfish
Processor Q'ty / Socket Type (2) LGA3647
Supported CPU Series Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 205W
System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset PCH Intel C622
Memory Supported DIMM Qty (8)+(8) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Capacity Up to 512GB RDIMM/ 1,024GB LRDIMM/ 768GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x24 slots
Others: (1) PCI-E Gen3 x16 OCP 2.0 slots (conn.A+conn.B) / (1) PCI-E Gen3 x16 OCP 2.0 slots (conn.A+conn.B+conn.C)
LAN Q'ty / Port (2) GbE ports, (1) PHY dedicated for IPMI
Controller Intel I210-AT
PHY Realtek RTL8211E
Storage SATA Connector (2) Mini-SAS HD (8-ports)
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-III / (1) Mini-SAS HD (4-ports)
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
M.2 connector (1) M.2 connector (2280/2260/2242) by PCI-E interface
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500

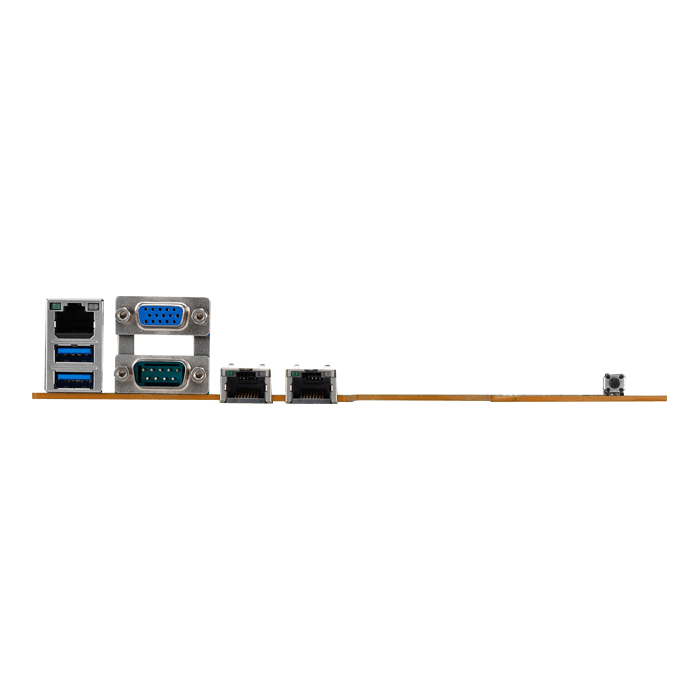

Input /Output Others (1) UID button
USB (2) USB3.0 ports (via cable) / (2) USB3.0 ports (at rear) / (2) USB 2.0 ports (via cable) / (1) Type-A USB3.0 port
COM (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2)
VGA (1) D-Sub 15-pin VGA port (at rear) / (1) VGA port (via cable)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA-III connectors + (3) Mini-SAS HD (4-in-1) connectors
Power SSI 24-pin + 8-pin + 8-pin power connectors
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Physical Dimension Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation FCC (DoC) Class B
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S7106 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
