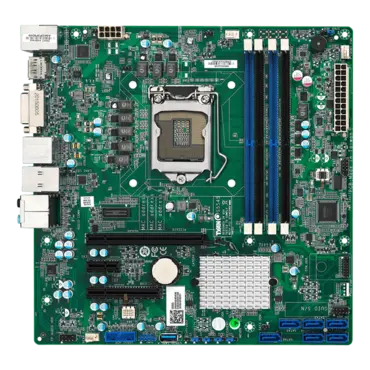

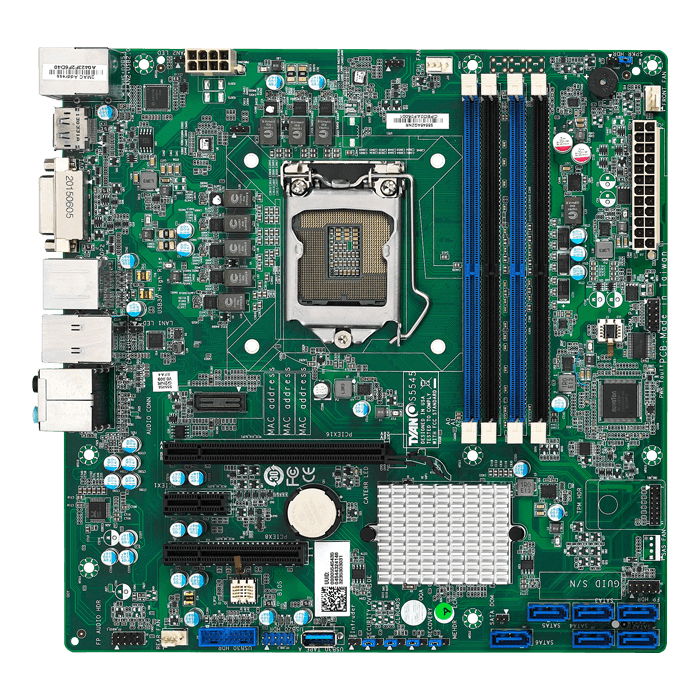

Tempest EX S5545 (S5545AG2NR), Intel Q170, LGA 1151, DDR4-2400 64GB non-ECC UDIMM / 4, DVI-D, GbLAN / 2, microATX Retail
Quantity:
- SKU: 12248155
- Manufacturer: TYAN
- MPN: S5545AG2NR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$291.16
- 6th/7th Generation Core i3/i5/i7 Workstation Motherboard
- 9.6" x 9.6" µATX Form Factor
- 4 U-DDR4 DIMM Slots
- Q170 PCH
- 2 onboard GbE LAN
- 3 Video outs - 2 Display Port, 1 DVI-D
- 7.1 Channel High Definition Audio
- Intel AMT 11.0 Manageability
| Processor | Socket Type / Q'ty | LGA1151 / (1) | |||
| Supported CPU Series | 7th/6th Gen. Intel Core i7/i5/i3 Processors | ||||
| Thermal Design Power (TDP) Wattage | Max up to 95W | ||||
| Chipset | PCH | Intel Q170 | |||
| Memory | Supported DIMM Qty | (4) DIMM slots | |||
| DIMM Type / Speed | Unbuffered non-ECC UDIMM DDR4 2133/2400 | ||||
| Capacity | Up to 64GB | ||||
| Memory channel | 2 Channels | ||||
| Memory voltage | 1.2V | ||||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x16 slot / (1) PCI-E Gen3 x8 slot ( w/ x4 link) / (1) PCI-E Gen.3 x1 slot | |||
| LAN | Q'ty / Port | (2) GbE ports | |||
| Controller | Intel I210-AT | ||||
| PHY | Intel I219-LM (Intel AMT support) | ||||
| Storage | SATA | Connector | (6) SATA | ||
| Controller | Intel Q170 | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||||
| Graphic | Connector type | (1) DVI-D / (2) Display port 1.2 | |||
| Chipset | Intel Processor Graphics(pGFX) | ||||
| Audio | Chipset | Realtek ALC892-GR | |||
| Feature | 7.1 ch | ||||
| Input /Output | USB | (4) USB 2.0 ports (2 at rear, 2 via cable) / (7) USB3.0 ports (4 at rear, 2 via cable, 1 TYPE-A) | |||
| COM | (1) header | ||||
| RJ-45 | (2) GbE ports | ||||
| DVI | (1) DVI-D connector | ||||
| Audio | (1) 5 holes Audio Jack+SPDIF fiber connector | ||||
| SATA | (6) SATA-III connectors | ||||
| Display port | (2) Display ports 1.2 | ||||
| TPM Module | Interface | 2 x 8 pin header | |||
| System Monitoring | AMT Feature | Support Power on/ Power off/ Restart at remote side | |||
| Chipset | NCT6683D-T | ||||
| Fan | Total (3) 4-pin headers | ||||
| Temperature | Monitors temperature for CPU & system environment | ||||
| Others | Watchdog timer support | ||||
| BIOS | Brand / ROM size | 16MB | |||
| Feature | Hardware Monitor / PXE boot support / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S3,S4,S5 | ||||
| Physical Dimension | Form Factor | Micro ATX | |||
| Board Dimension | 9.6"x9.6" (243.8x243.8mm) | ||||
| Regulation | FCC (DoC) | Class A | |||
| CE (DoC) | Class A | ||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||
| RoHS | RoHS 6/6 Compliant | Yes | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | |||
| Package Contains | Motherboard | (1) S5545 Motherboard | |||
| Manual | (1) Quick Installation Guide | ||||
| Installation CD | (1) TYAN Device Driver CD | ||||
| I/O Shield | (1) I/O Shield | ||||
| Cable | SATA | (2) SATA signal cables | |||
