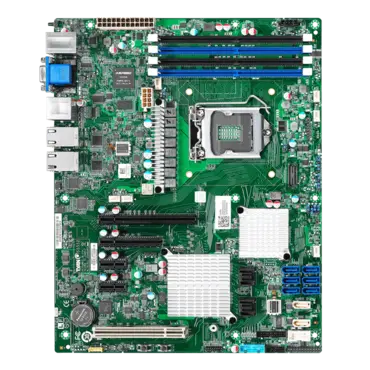

Tempest EX S5552-EX (S5552WGM4NR-EX), Intel C246, LGA 1151, DDR4-2666 128GB ECC UDIMM / 4, DP, GbLAN / 4, ATX Retail

  • SKU: 13225585
  • Manufacturer: TYAN
  • MPN: S5552WGM4NR-EX
Starting At
  • 12" x 9.6" ATX form factor
  • C246 PCH
  • 8 SATA 6G ports
  • Up to 4 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
  • 8-port SAS 12G IOC
  • 1 PCIe Gen.3 x16 (x8 link) + 1 PCIe Gen.3 x4 + 2 PCIe Gen.3 x1 + 1 PCI slots
  • AST2500 BMC with Redfish support
  • 1 VGA + 1 Display Port
  • EMC Class B
  • 7-year longevity of supply
  • Wide operating temperature 0-55?
Processor Q'ty / Socket Type (1) LGA1151
Supported CPU Series Intel Celeron G4900 Series Processors and Intel Pentium Processor G5000 Series / Intel Xeon E-2200/2100 series processors / 9th/8th Gen. Intel Core i3 processors
Thermal Design Power (TDP) Wattage Max up to 95W
Chipset PCH Intel C246
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed UDIMM ECC DDR4 2666/2400/2133
Capacity Up to 128GB / *Follow latest Intel DDR4 Memory POR
Memory channel 2 Channels
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen3 x8 slot ( w/ x4 link) / (1) PCI-E Gen3 x16 slot (w/ x8 link) / (2) PCI-E Gen3 x1 slots
PCI (1) PCI 32-bit slot
LAN Q'ty / Port (4) GbE ports + (1) GbE dedicated for IPMI
Controller Intel I210
PHY Realtek RTL8211E
Storage SAS Connector (2) Mini-SAS HD connectors (8 ports)
Controller LSI SAS3008
Speed 12Gb/s
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
SATA Connector (6) SATA
Controller Intel C246
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM
Controller Intel C246
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)

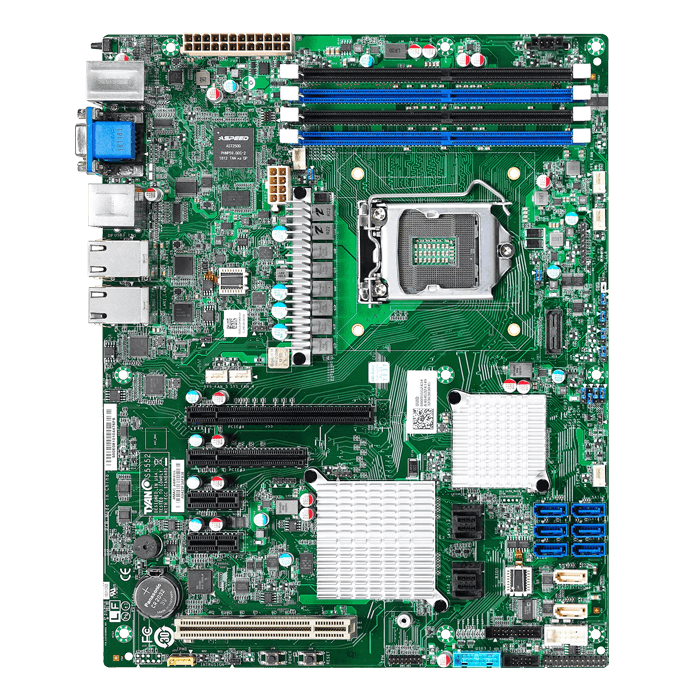

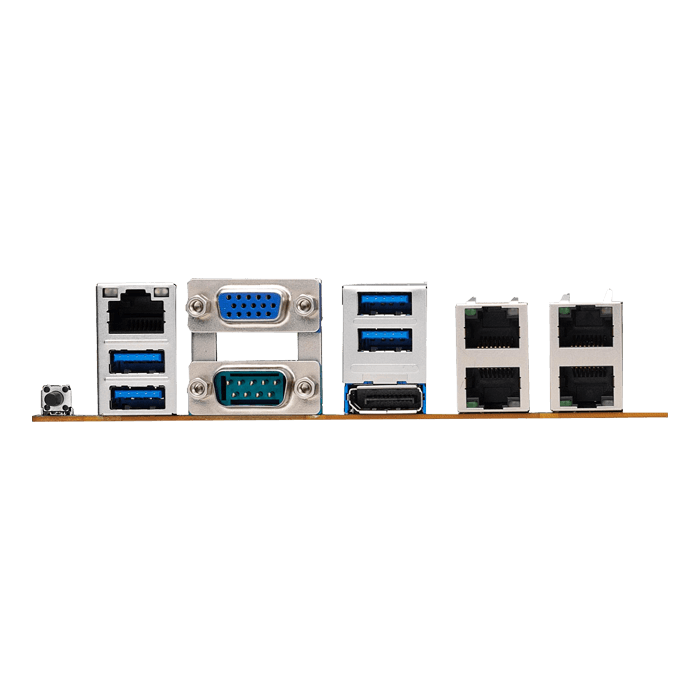

Graphic VGA Connector type (1) D-Sub 15-pin
Resolution Up to 1920x1200 @60Hz
Chipset Aspeed AST2500
Display Port Connector type (1) Display port 1.2
Resolution Up to 4096X2304 @60Hz
Chipset Intel Processor Graphics (pGFX)
Input /Output USB (4) USB3.1 Gen2 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (4) GbE ports, (1) GbE dedicated for IPMI
SAS (2) Mini-SAS HD (4-in-1) connectors
SATA (6) SATA-III connectors + (2) SATA-DOM connectors
Display port (1) Display port 1.2
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / PXE boot support / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5
Physical Dimension Form Factor ATX
Board Dimension 12" x 9.6" (305 x 243.8mm)
Regulation FCC (SDoC) Class B
CE (DoC) Class B
RCM Class B
VCCI Class B
Operating Environment Operating Temp. 0° C ~ 55° C (32° F~ 131° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5552 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
