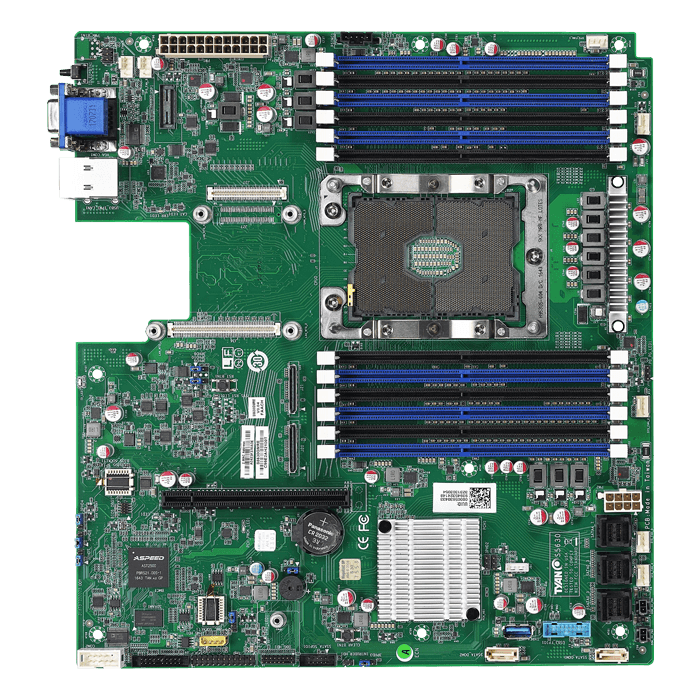

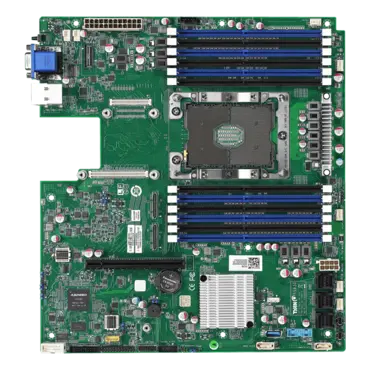

Tempest SX S5630 (S5630GMRE), Intel C621, LGA 3647, DDR4-2666 1.5TB 3DS LRDIMM / 12, SATADOM / 2, VGA, SSI CEB Retail

SKU: 11842705

Manufacturer: TYAN

MPN: S5630GMRE

Availability: Unknown


Price: $363.40
or as low as $12/month
Quantity:
  • 12" x 10.9" SSI CEB form factor
  • 12 DIMM slots
  • 14 SATA 6G + 4 NVMe Ports
  • 1 PCIex16 slot
  • x16 OCP v2.0 LAN mezzanine slot
  • AST2500 BMC with Redfish support
Processor Q'ty / Socket Type (1) LGA3647
Supported CPU Series Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 205W
Chipset PCH Intel C621
Memory Supported DIMM Qty (12) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot
Others: (1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.B)
LAN Q'ty / Port (1) PHY
PHY Realtek RTL8211E
Storage NVMe (2) PCI-E x8 SFF-8612 OCuLink connectors for (4) NVMe ports
SATA Connector (2) Mini-SAS HD (8-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM / (1) Mini-SAS HD (4-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output Others (1) ID button
USB (5) USB3.0 ports (2 at rear, 2 via cable, Type-A)
COM (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2)
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (1) GbE port dedicated for IPMI
Audio Line-in, Line-out, Mic-in, Surround, Side surround, CEN/LFE at rear
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors
Power ATX 24-pin + 8-pin power connectors
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Physical Dimension Form Factor SSI CEB
Board Dimension 12"x10.9" (305x276.86mm)
Regulation FCC (DoC) Class A
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5630 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
