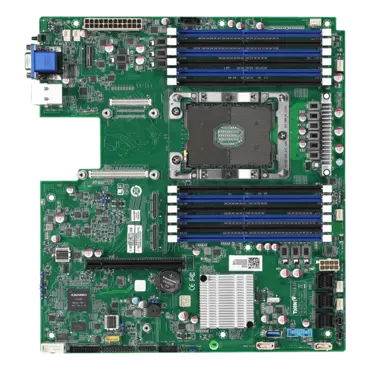

Tempest SX S5630 (S5630GMRE-L2), Intel C622, LGA 3647, DDR4-2933 1.5TB 3DS LRDIMM / 12, SATADOM / 2, VGA, SSI CEB Retail
Quantity:
- SKU: 13225402
- Manufacturer: TYAN
- MPN: S5630GMRE-L2
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$391.00
- 12" x 10.9" SSI CEB form factor
- 12 DIMM slots
- 14 SATA 6G + 4 NVMe Ports
- 1 PCIex16 slot
- x16 OCP v2.0 LAN mezzanine slot
- AST2500 BMC with Redfish support
| Processor | Q'ty / Socket Type | (1) LGA3647 | |
| Supported CPU Series | Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor | ||
| Thermal Design Power (TDP) Wattage | Max up to 205W | ||
| Chipset | PCH | Intel C622 | |
| Memory | Supported DIMM Qty | (12) DIMM slots | |
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM) | ||
| Capacity | Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 6 Channels | ||
| Memory voltage | 1.2V | ||
| Notification: | DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x16 slot | |
| Others: | (1) PCI-E Gen3 x8 OCP slot / (1) KR 10GbE Card connector | ||
| LAN | Q'ty / Port | (1) PHY | |
| PHY | Realtek RTL8211E | ||
| Storage | NVMe | (2) PCI-E x8 SFF-8612 OCuLink connectors for (4) NVMe ports | |
| SATA | Connector | (2) Mini-SAS HD (8-ports) | |
| Controller | Intel C621 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| sSATA | Connector | (2) SATA-DOM / (1) Mini-SAS HD (4-ports) | |
| Controller | Intel C621 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| Input /Output | Others | (1) ID button | |
| USB | (5) USB3.0 ports (2 at rear, 2 via cable, Type-A) | ||
| COM | (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) | ||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||
| RJ-45 | (1) GbE port dedicated for IPMI | ||
| Audio | Line-in, Line-out, Mic-in, Surround, Side surround, CEN/LFE at rear | ||
| Front Panel | (1) 2x12-pin SSI front panel header | ||
| SATA | (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors | ||
| Power | ATX 24-pin + 8-pin power connectors | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Fan | Total (6) 4-pin headers | ||
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 | ||
| Physical Dimension | Form Factor | SSI CEB | |
| Board Dimension | 12" x 10.9" (305 x 276.86mm) | ||
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Package Contains | Motherboard | (1) S5630 Motherboard | |
| Manual | (1) Quick Installation Guide | ||
| Installation CD | (1) TYAN Device Driver CD | ||
