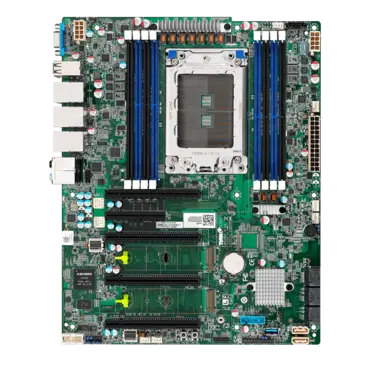

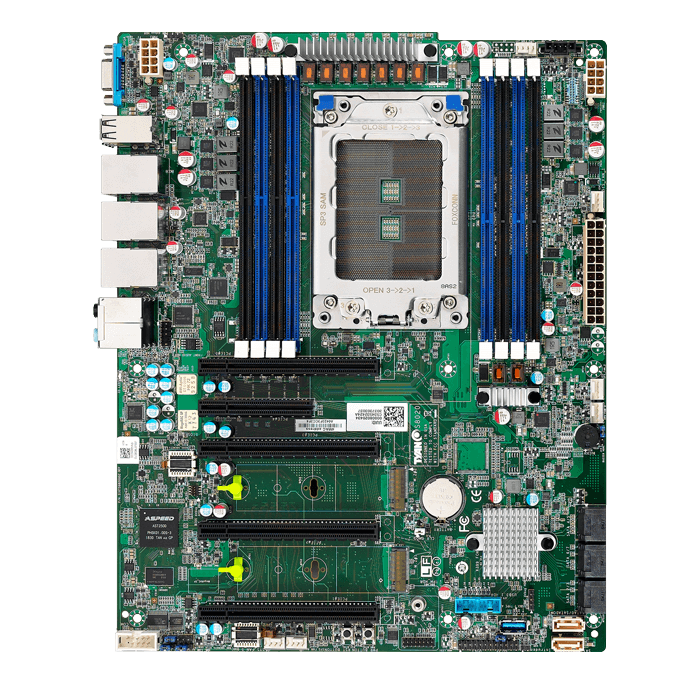

Tomcat EX S8020 (S8020AGM2NR-EX), AMD X399, TR4, DDR4-2933 256GB ECC UDIMM / 8, SATADOM / 2, VGA, GbLAN / 2, ATX Retail
Quantity:
- SKU: 13226083
- Manufacturer: TYAN
- MPN: S8020AGM2NR-EX
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$456.73
- 12" x 9.6" ATX form factor
- X399 chipset w/ 8 DIMM slots
- 2 1000Base-T LAN w/ shared IPMI port
- 4 PCIe Gen.3 x16 slots (1 in x8 link)
- 1 PCIe Gen.2 x8 slot (w/ x4 link)
- 7.1 channel HD audio
- AST2500 BMC with IPMI v2.0 support
- EMC Class B certification
| Processor | Q'ty / Socket Type | (1) AMD Socket TR4 | |
| Supported CPU Series | (1) AMD Ryzen Threadripper Processor | ||
| Thermal Design Power (TDP) Wattage | Max up to 250W | ||
| Chipset | Chipset | AMD X399 | |
| Memory | Supported DIMM Qty | (8) DIMM slots | |
| DIMM Type / Speed | UDIMM ECC/Non-ECC DDR4 2933 | ||
| Capacity | Up to 256GB | ||
| Memory channel | 4 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen2 x8 slot (w/ x4 link) / (1) PCI-E Gen3 x16 slot (w/ x8 link) / (3) PCI-E Gen3 x16 slots | |
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Intel I210 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (6) SATA / (2) SATA-DOM |
| Controller | AMD X399 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10 | ||
| NVMe | Connector (M.2) | (2) 2280 (by PCI-E interface) | |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| Audio | Chipset | Realtek ALC892-CG | |
| Feature | 7.1 ch | ||
| Input /Output | USB | (4) USB 2.0 ports (4 @ rear) / (2) USB3.1 Gen2 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) / (4) USB3.1 Gen1 ports (@ rear) / (1) USB3.1 Gen1 port (Type-A) | |
| COM | (1) header | ||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||
| RJ-45 | (2) GbE ports, (1) GbE dedicated for IPMI | ||
| Audio | (1) 5 holes Audio Jack+SPDIF fiber connector | ||
| Front Panel | (1) 2x12-pin SSI front panel header | ||
| SATA | (6) SATA-III connectors + (2) SATA-DOM connectors | ||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||
| System Monitoring | Chipset | Aspeed AST2500 | |
| Fan | Total (6) 4-pin headers | ||
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S0,S3,S4,S5 | ||
| Physical Dimension | Form Factor | ATX | |
| Board Dimension | 12" x 9.6" (305 x 243.8mm) | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class B | |
| CE (DoC) | Class B | ||
| RCM | Class B | ||
| VCCI | Class B | ||
| Operating Environment | Operating Temp. | 0° C ~ 55° C (32° F~ 131° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Motherboard | (1) S8020 Motherboard | |
| Manual | (1) Quick Installation Guide | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (2) SATA signal cables | |
