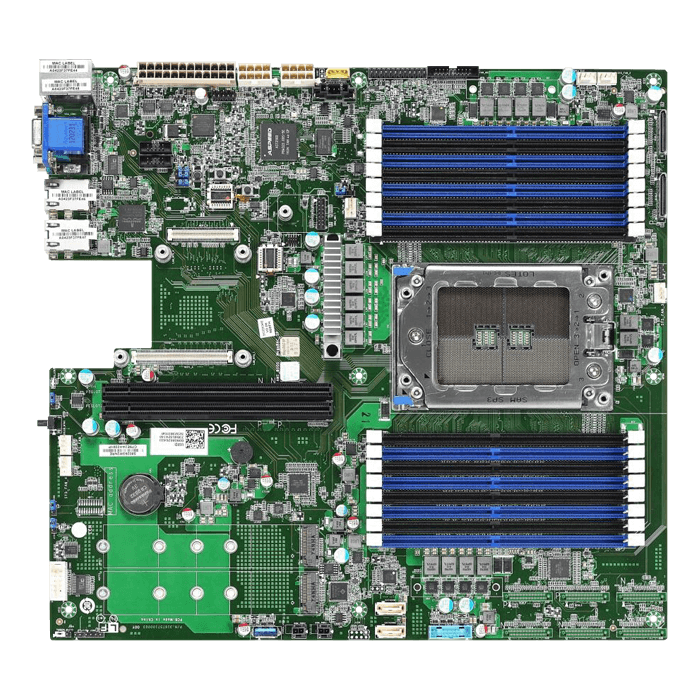

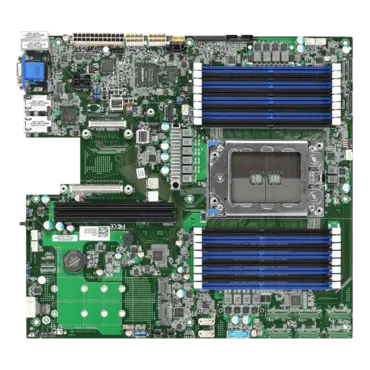

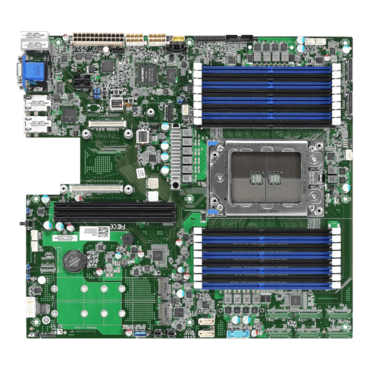

Tomcat SX S8026 (S8026GM2NR-LE), AMD SoC, SP3, DDR4-2667 1TB LRDIMM / 16, SATADOM / 2, VGA, M.2 / 2, GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 12242593
- Manufacturer: TYAN
- MPN: S8026GM2NR-LE
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$603.72
- Up to 32 CPU Cores / 64 Threads
- 16 DIMM slots supporting up to 2TB DDR4 RAM
- (2) 80-Pin Oculink connectors with 4 NVMe or 16 SATA ports
- (2) NVMe 2280 / 22110 M.2 ports
- (2) PCIe x24 riser card slots
- OCP v2.0 x16 LAN Mezzanine
- AST2500 BMC with Redfish support
| Processor | Socket Type / Q'ty | AMD Socket SP3/ (1) | ||||
| Supported CPU Series | (1) AMD EPYC™ 7000 Series Processor | |||||
| Average CPU Power (ACP) Wattage | Max up to 180W | |||||
| Memory | Supported DIMM Qty | (16) DIMM slots | ||||
| DIMM Type / Speed | DDR4 ECC RDIMM/LRDIMM/NVDIMM 2667 | |||||
| Capacity | Up to 1,024GB RDIMM/LRDIMM | |||||
| Memory channel | 8 Channels per CPU | |||||
| Memory voltage | 1.2V | |||||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x 24 slot / (1) PCI-E Gen3 x 24 slot (w/x16 link; can be x24 link if OCP mezz. conn.B is not used. Please contact with Tyan technical support for details.) | ||||
| Recommended TYAN Riser Card | M7106-L24-3F, PCI-E x16 slot 2U riser card (left) / M7106-L24-3F, PCI-E x16 slot 2U riser card (right) | |||||
| Others: | (1) PCI-E Gen3 x16 OCP 2.0 slots (conn.A+conn.B) | |||||
| LAN | Q'ty / Port | (2) GbE ports + (1) dedicated for IPMI | ||||
| Controller | Broadcom BCM5720 | |||||
| PHY | Realtek RTL8211E | |||||
| Storage | SATA | Connector | (2) SATA / (2) SFF-8612 for (16) SATA ports | |||
| Controller | Direct from AMD CPU | |||||
| Speed | 6.0 Gb/s | |||||
| RAID | N/A | |||||
| NVMe | Connector (M.2) | (2) 22110/2280/2260/2242 (by PCI-E & SATA interface) | ||||
| Graphic | Connector type | D-Sub 15-pin | ||||
| Resolution | Up to 1920x1200 | |||||
| Chipset | Aspeed AST2500 | |||||

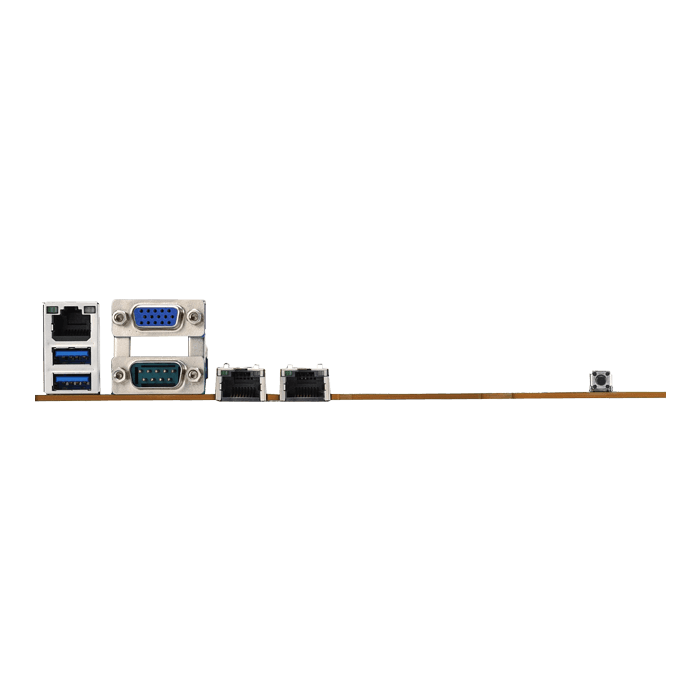

| Input /Output | USB | (2) USB3.0 ports (at rear) / (2) USB 2.0 ports (via cable) / (1) Type-A USB3.0 port | ||||
| COM | (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) | |||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | |||||
| RJ-45 | (2) GbE ports, (1) Dedicated for IPMI | |||||
| Front Panel | (1) 2x12-pin SSI front panel header | |||||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | |||||
| System Monitoring | Chipset | Aspeed AST2500 | ||||
| Fan | Total (6) 4-pin headers | |||||
| Temperature | Monitors temperature for CPU & memory & system environment | |||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |||||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | |||||
| Others | Watchdog timer support | |||||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |||||
| BIOS | Brand / ROM size | AMI / 32MB | ||||
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5 | |||||
| Physical Dimension | Form Factor | EATX | ||||
| Board Dimension | 12"x13" (305x330mm) | |||||
| Operating System | OS supported list | Please refer to our AVL support lists. | ||||
| Regulation | FCC (DoC) | Class A | ||||
| CE (DoC) | Class A | |||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | ||||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |||||
| RoHS | RoHS 6/6 Compliant | Yes | ||||
| Package Contains | Motherboard | (1) S8026 Motherboard | ||||
| Manual | (1) Quick Installation Guide | |||||
| Installation CD | (1) TYAN Device Driver CD | |||||
| I/O Shield | (1) I/O Shield | |||||
| Cable | SATA | (2) SATA signal cables | ||||
