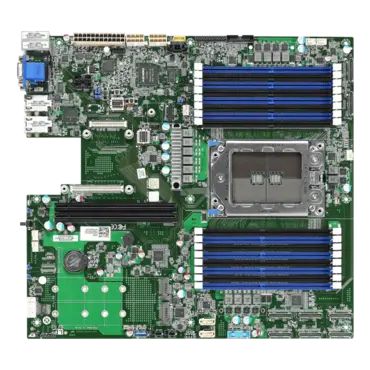

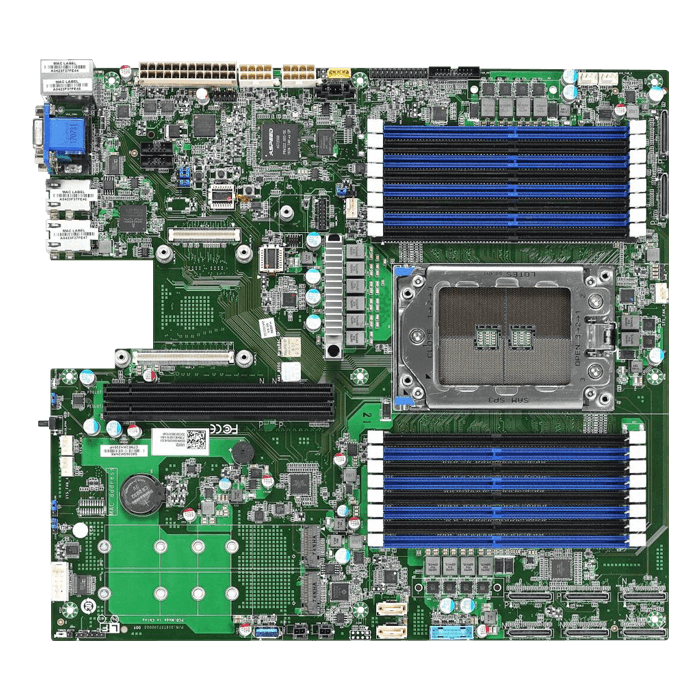

Tomcat SX S8026 (S8026GM2NRE), AMD SoC, SP3, DDR4-2667 1TB LRDIMM / 16, SATADOM / 2, VGA, M.2 / 2, GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 11633698
- Manufacturer: TYAN
- MPN: S8026GM2NRE
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$625.23
- Up to 32 CPU Cores / 64 Threads
- 16 DIMM slots supporting up to 2TB DDR4 RAM
- (8) 80-Pin Oculink connectors with 16 NVMe ports
- (2) NVMe 2280 / 22110 M.2 ports
- (2) PCIe x24 riser card slots
- OCP v2.0 x16 LAN Mezzanine
- AST2500 BMC with Redfish support
| Processor | Socket Type / Q'ty | AMD Socket SP3/ (1) | |||||
| Supported CPU Series | (1) AMD EPYC™ 7000 Series Processor | ||||||
| Average CPU Power (ACP) Wattage | Max up to 180W | ||||||
| Memory | Supported DIMM Qty | (16) DIMM slots | |||||
| DIMM Type / Speed | DDR4 ECC RDIMM/LRDIMM/NVDIMM 2667 | ||||||
| Capacity | Up to 1,024GB RDIMM/LRDIMM | ||||||
| Memory channel | 8 Channels per CPU | ||||||
| Memory voltage | 1.2V | ||||||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x 24 slot / (1) PCI-E Gen3 x 24 slot (w/x16 link; can be x24 link if OCP mezz. conn.B is not used. Please contact with Tyan technical support for details.) | |||||
| Recommended TYAN Riser Card | M7106-L24-3F, PCI-E x16 slot 2U riser card (left) / M7106-L24-3F, PCI-E x16 slot 2U riser card (right) | ||||||
| Others: | (1) PCI-E Gen3 x16 OCP 2.0 slots (conn.A+conn.B) | ||||||
| LAN | Q'ty / Port | (2) GbE ports + (1) dedicated for IPMI | |||||
| Controller | Broadcom BCM5720 | ||||||
| PHY | Realtek RTL8211E | ||||||
| Storage | NVMe | Connector (M.2) | (2) 22110/2280/2260/2242 (by PCI-E & SATA interface) | ||||
| Connector (OCuLink) | (8) SFF-8612 for (16) NVMe ports | ||||||
| Graphic | Connector type | D-Sub 15-pin | |||||
| Resolution | Up to 1920x1200 | ||||||
| Chipset | Aspeed AST2500 | ||||||

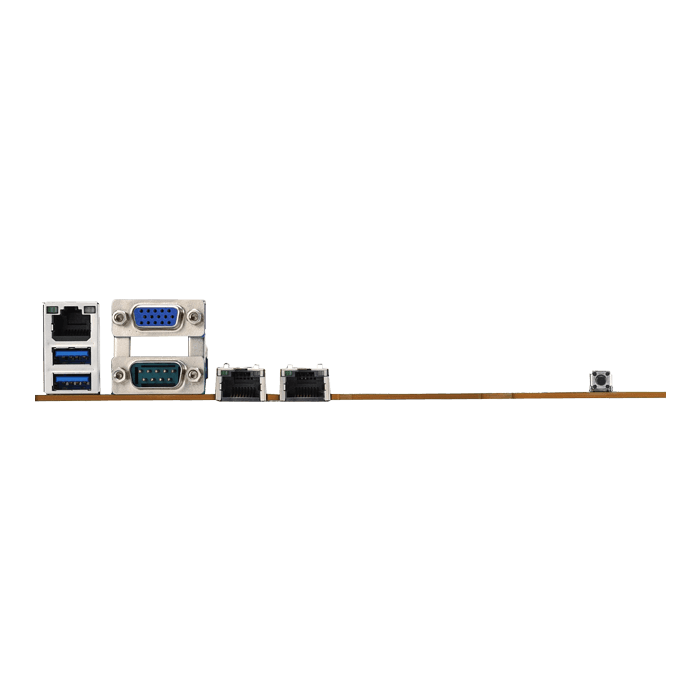

| Input /Output | USB | (2) USB3.0 ports (at rear) / (2) USB 2.0 ports (via cable) / (1) Type-A USB3.0 port | |||||
| COM | (1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2) | ||||||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||||||
| RJ-45 | (2) GbE ports, (1) Dedicated for IPMI | ||||||
| Front Panel | (1) 2x12-pin SSI front panel header | ||||||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | ||||||
| System Monitoring | Chipset | Aspeed AST2500 | |||||
| Fan | Total (6) 4-pin headers | ||||||
| Temperature | Monitors temperature for CPU & memory & system environment | ||||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||||||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||||||
| Others | Watchdog timer support | ||||||
| Server Management | AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |||||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||||||
| BIOS | Brand / ROM size | AMI / 32MB | |||||
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5 | ||||||
| Physical Dimension | Form Factor | EATX | |||||
| Board Dimension | 12"x13" (305x330mm) | ||||||
| Operating System | OS supported list | Please refer to our AVL support lists. | |||||
| Regulation | FCC (DoC) | Class A | |||||
| CE (DoC) | Class A | ||||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |||||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||||
| RoHS | RoHS 6/6 Compliant | Yes | |||||
| Package Contains | Motherboard | (1) S8026 Motherboard | |||||
| Manual | (1) Quick Installation Guide | ||||||
| Installation CD | (1) TYAN Device Driver CD | ||||||
| I/O Shield | (1) I/O Shield | ||||||
| Cable | SATA | (2) SATA signal cables | |||||
