Toughpower SFX, 80 PLUS Gold 600W, Fully Modular, SFX Power Supply

  • SKU: 10768599
  • Manufacturer: THERMALTAKE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

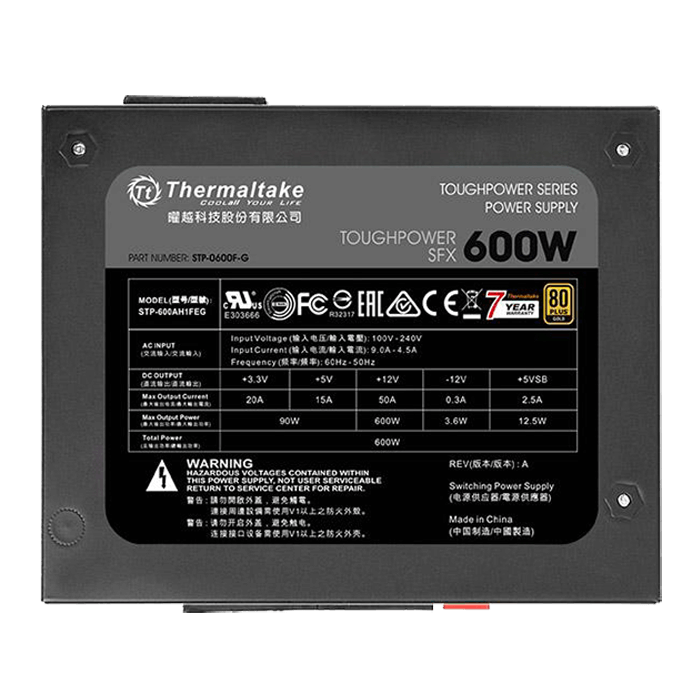

Toughpower SFX, 80 PLUS Gold 600W, Fully Modular, SFX Power Supply

Thermaltake Toughpower SFX 600W Gold

Incorporating various high-quality components, Toughpower SFX 600W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Additionally, an embedded temperature controlled Zero RPM Smart Fan System is optimized to deliver excellent airflow at an exceptionally low noise level. Fully modular flat cable design is convenient for cable management. Moreover, the powerful single +12V rail enables non-stop usage with stable and reliable performance.



Short P/N STP-0600F-G
Model STP-600AH1FEG
Type Intel SFX 12V 3.3 and ATX 12V 2.4
Max. Output Capacity 600W
Peak Output Capacity 720W
Color Black
Dimension (W / H / D) 125mm(W) x 63.5mm(H) x 100mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 12msec at 75% of full load
Input current 4.5A – 9A

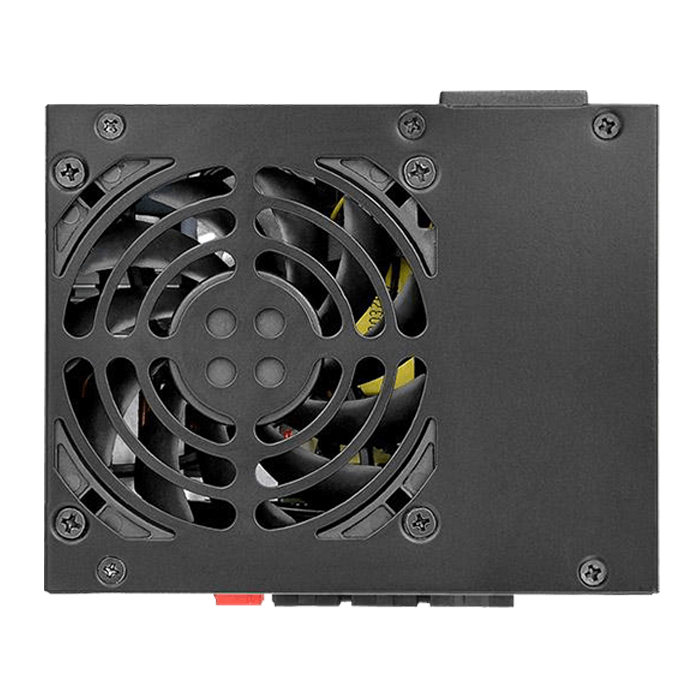

Cooling System 8cm fan
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V - 240V
Operating Temperature 0 °C to +40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -20 °Cto +90 °C
MTBF 120,000 hrs minimum
Storage Humidity 5% to 95%, non-condensing
Efficiency MEET 80 PLUS®Gold at 115Vac input.
Safety Approval CE/FCC/UL/Bauart Mark+CB/EAC
PCI-E Connector 2
