Toughpower SFX-850AH8FKG, 80 PLUS Gold 850W, Fully Modular, SFX Power Supply

Quantity:
  • SKU: 15353177
  • Manufacturer: THERMALTAKE
  • MPN: PS-STP-0850FNFAGU-1
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$199.16
Quantity:
Toughpower SFX-850AH8FKG, 80 PLUS Gold 850W, Fully Modular, SFX Power Supply

Designed with a native PCIe 12+4pin modular connector, the Toughpower SFX series is built for next-gen PCIe Gen 5.0 graphic cards, and is fully compatible with Intel ATX 3.0 specifications. The fully modular Toughpower SFX series comes in 1000W, 850W, and 750W, and is built to deliver 80 PLUS Gold efficiency. The compact size of Toughpower SFX Gold series perfectly fits in any ATX or ITX case.

P/N PS-STP-0850FNFAGU-1
watts 850W
Model SFX-850AH8FKG
Max. Output Capacity 850W
Color Black
Dimension ( W / H / D ) 125mm(W)x63.5mm(H)x100mm(D)
Weight 1 KG
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 17msec at 100% of full load
Input Current 10A Max.
Input Frequency Range 50 - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 45°C
Operating Humidity 5% to 85%,non-condensing
Storage Temperature -40°C to + 70°C
Storage Humidity 5% to 95%, non-condensing

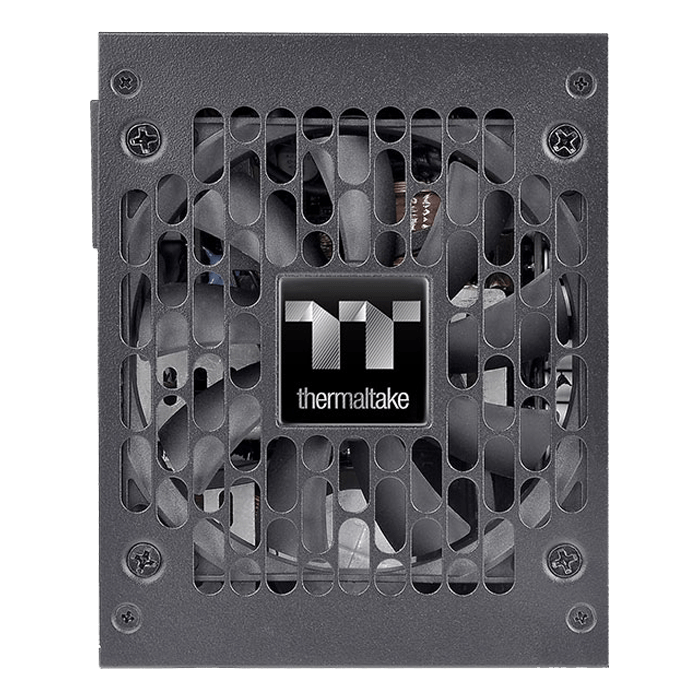

Cooling System 92mm FDB Fan
Efficiency Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI

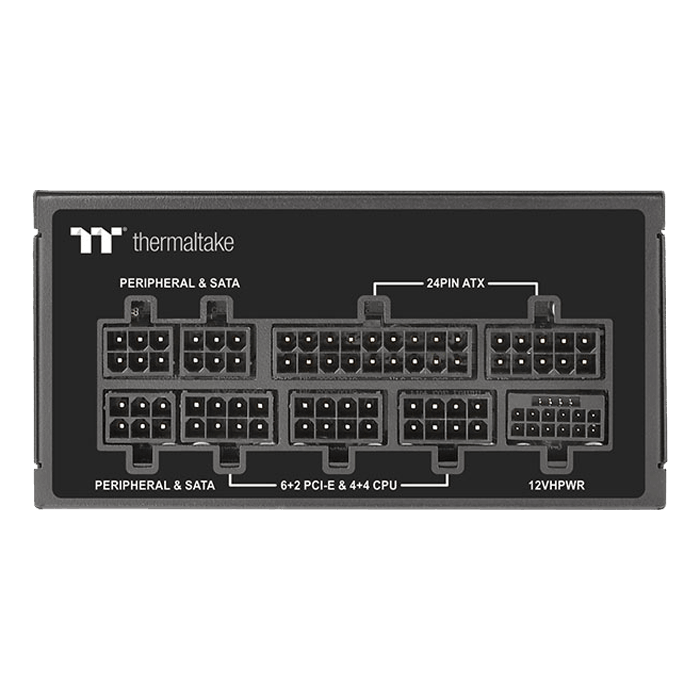

PCI-E 6+2pin 2
PCIe 12+4pin 1
