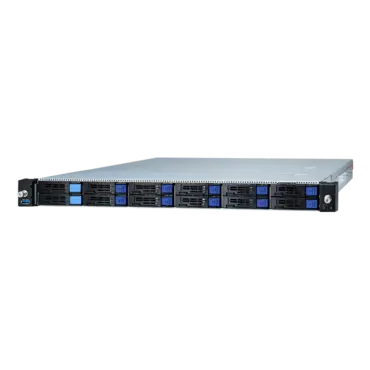

Transport CX GC68A-B8036-LE (B8036G68AV10E2HR-LE), 1U, 12x SATA, 2x NVMe, 2x M.2, 16x DDR4, 2x 1GbLAN, 850W Rdt PSU

  • SKU: 13589297
  • Manufacturer: TYAN
  • MPN: B8036G68AV10E2HR-LE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
  • 12 2.5" SATA hot-swap, tool-less drive bays
  • PCIe x16 OCP v2.0 LAN mezzanine slot (Type 1)
  • 2 HH/HL PCIe Gen.4x16 slots
  • 2 NVMe/SATA M.2 slots for boot drives
System   Form Factor 1U Rackmount
  Chassis Model GC68A
  Dimension (D x W x H) 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)
  Motherboard Name S8036GM2NE-LE
  Motherboard Notification # The motherboard not sold separately
  Gross Weight 20 kg (44 lbs)
  Net weight 10.5kg (23.5 lbs)
Front Panel   Buttons (1) ID / (1) PWR w/ LED
  LEDs (1) PWR / (1) ID
  I/O Ports (1) USB 3.1 Gen1 port
External Drive Bay   Q'ty / Type (12) hot-swap 2.5" SATA 6Gb/s with (2) hot-swap 2.5" NVMe
  HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
  Supported HDD Interface (12) SATA 6Gb/s & SAS* / (2) NVMe
  Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required.
System Cooling Configuration   FAN (5) 4028 + (1) 4056 fans
Power Supply   Type CRPS
  Input Range AC 100~240V/ 12~6A
  Output Watts 850 Watts
  Efficiency 80 plus Platinum
  Redundancy 1+1
Processor   Q'ty / Socket Type (1) AMD Socket SP3
  Supported CPU Series (1) AMD EPYC™ 7002/7003 Series Processor
  Configurable Thermal Design Power (cTDP) Wattage Max up to 240W
  #Notification 280W CPUs follow Tyan AVL
Memory   Supported DIMM Qty (16) DIMM slots
  DIMM Type / Speed RDIMM DDR4 3200 w/ ECC up to 2,048GB (=128GB*16) / LRDIMM DDR4 3200 w/ ECC up to 4,096GB (=256GB*16) / 3DS DDR4 3200 w/ ECC up to 4,096GB (=256*16)
  Capacity Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS
  Memory channel 8 Channels per CPU
  Memory voltage 1.2V
Expansion Slots   PCI-E (1) PCI-E Gen4 x16 slot (FH/HL) / (1) PCI-E Gen4 x16 slot (HH/HL)
  Pre-installed TYAN Riser Card
(PCI-E Gen4)
(1) M8036-L16-1F for (1) HH/HL PCI-E Gen 4 x16 slot (Left) / (1) M8036-R16-1F for (1) FH/HL PCI-E Gen 4 x16 slot (Right)
  Others (1) PCI-E Gen.3 x16 OCP v2.0 mezzanine slot
  Physical Dimension
HH/HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm) / FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm)
LAN   Q'ty / Port (2) GbE ports + (1) GbE dedicated for IPMI
  Controller Broadcom BCM5720 LOM
  PHY Realtek RTL8211E
Storage SATA Connector (1) SFF-8654 connector for (8) front SATA / (4) SATA 7-pin connectors for (4) front SATA
Controller Marvell 9235
Speed 6Gb/s
NVMe Connector (M.2) (2) 22110/2280 (by PCI-E Gen3 & SATA interface)
Connector (Slim SAS) (1) SFF-8654 for (2) NVMe ports
Graphic   Connector type D-Sub 15-pin
  Resolution Up to 1920x1200
  Chipset Aspeed AST2500
I/O Ports   USB (2) USB3.1 Gen1 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) / (1) USB3.1 Gen1 port (Type-A)
  COM (1) DB-9 port (COM1) + (1) header (COM2)
  VGA (1) D-Sub 15-pin port
  RJ-45 (2) GbE ports, (1) dedicated GbE for IPMI
TPM (Optional)   TPM Support Please refer to our TPM supported list.
System Monitoring   Chipset Aspeed AST2500
  Temperature Monitors temperature for CPU & memory & system environment
  Voltage Monitors voltage for CPU, memory, chipset & power supply
  LED Over temperature warning indicator / Fan & PSU fail LED indicator
  Others Watchdog timer support
Server Management   Onboard Chipset Onboard Aspeed AST2500
  AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
  AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS   Brand / ROM size AMI / 32MB
  Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic
Operating System   OS supported list Please refer to our AVL support lists.
Regulation   FCC (SDoC) Class A
  CE (DoC) Class A
  CB/LVD Yes
  RCM Class A
  VCCI Class A
Operating Environment   Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
  Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
  In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS   RoHS 6/6 Compliant Yes
Package Contains   Barebone (1) GC68A-B8036 Barebone
  Manual (1) Quick Installation Guide
