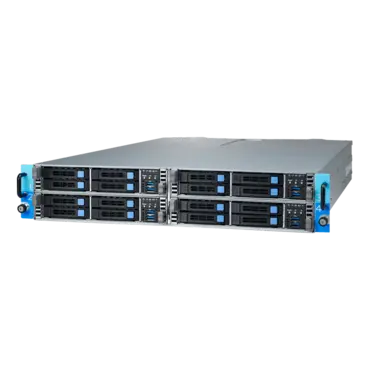

Transport CX TN73-B8037-X4S (B8037T73X4-200PE4HR), 2U, 4x Node, 16x SATA, 32x DDR4, 2000W Rdt PSU
Quantity:
- SKU: 14016367
- Manufacturer: TYAN
- MPN: B8037T73X4-200PE4HR
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$6,032.90

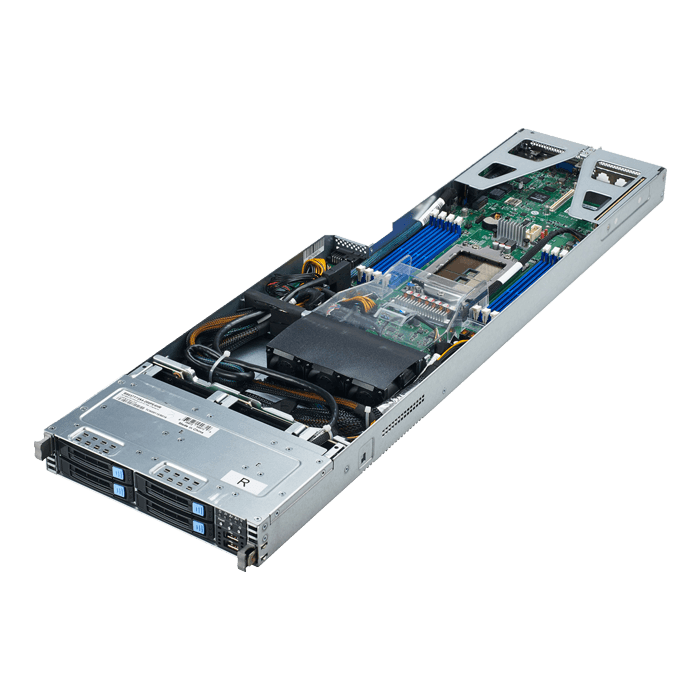

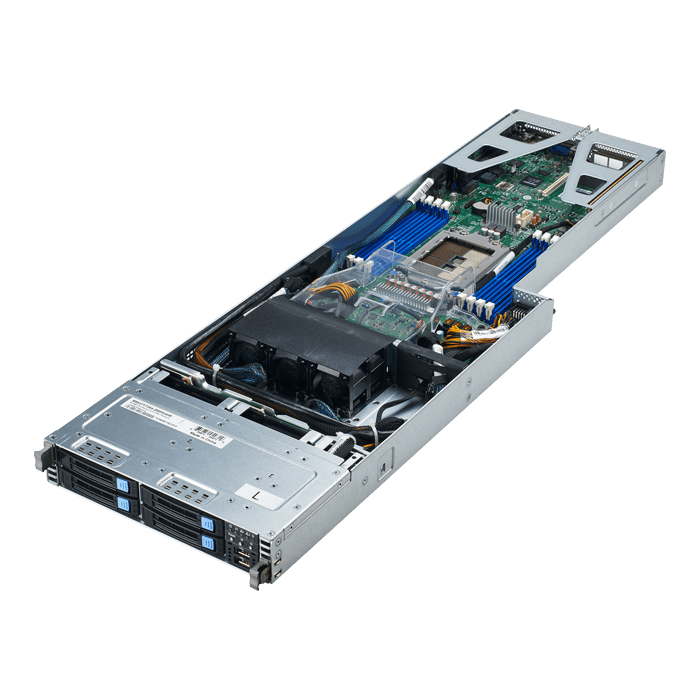

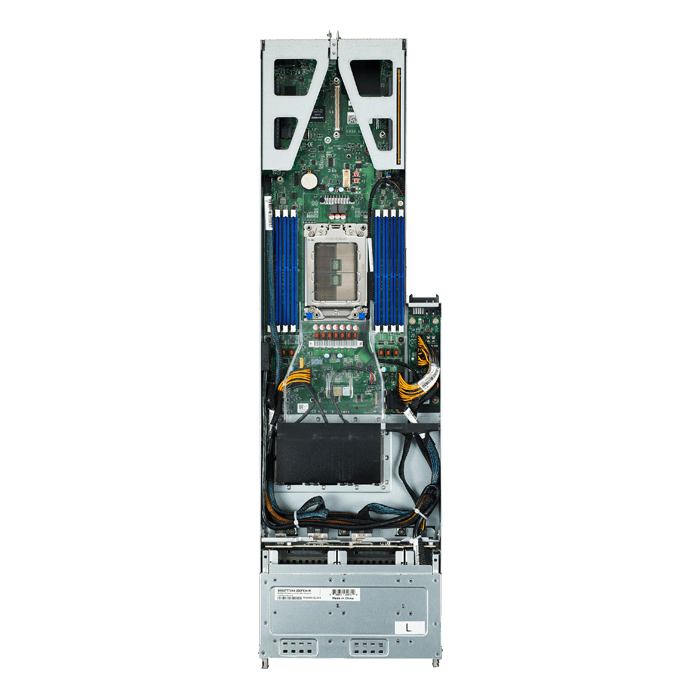

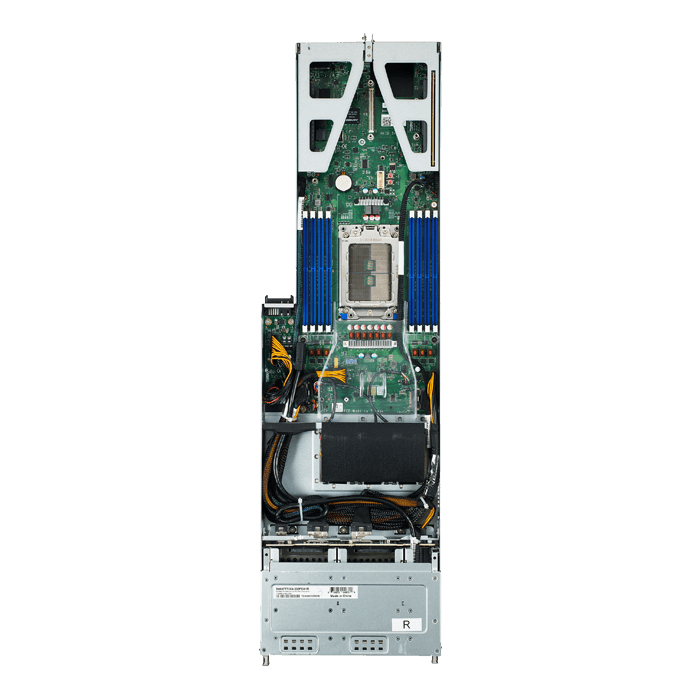

- 4 1S EPYC (Rome) sleds, front-serviced
- 32 DIMM slots, 8 per sled

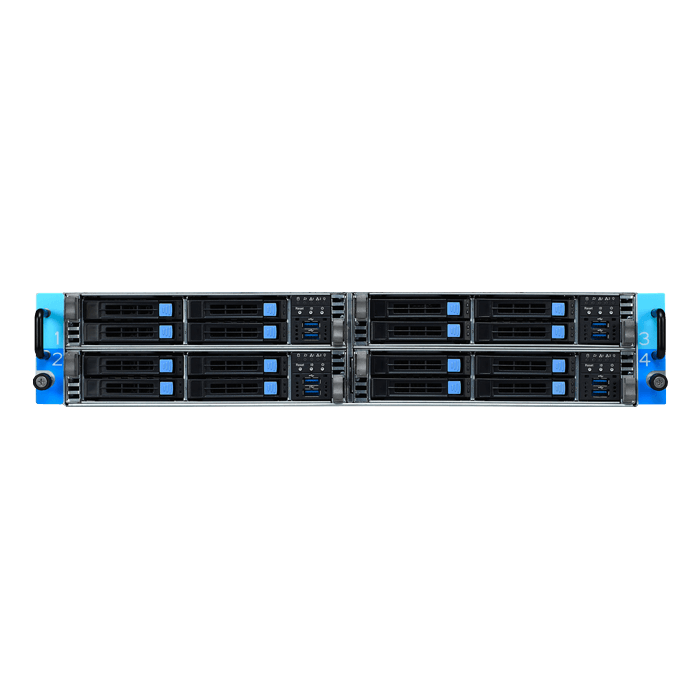

- 16 2.5" NVMe/SATA hot-swap, tool-less drive bays, 4 per sled
- 2 HH/HL PCIe Gen.4x16 slots per sled
- 1 OCP 2.0 Mezz. per sled
- (1+1) RPSU
| System | Form Factor | 2U Rackmount | |
| Chassis Model | TN73 | ||
| Dimension (D x W x H) | 28.74" x 17.32" x 3.44" (730 x 440 x 87.5mm) | ||
| Motherboard Name | S8037GM2NE | ||
| Gross Weight | 48.5 kg (107 lbs) | ||
| Net weight | 34 kg (75 lbs) | ||
| Front Panel | Buttons | (1) PWR / (1) RST / (1) UID | |
| LEDs | (1) HDD / (1) ID / (1) System Event / (2) LAN activity | ||
| I/O Ports | (2) USB 3.1 Gen1 ports | ||
| External Drive Bay | Q'ty / Type | (4) 2.5" Hot-Swap SSD per node | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s /NVMe | ||
| Supported HDD Interface | (4) SAS 12Gb/s / SATA 6Gb/s | ||
| Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | ||
| System Cooling Configuration | FAN | (3) 4cm fans per node | |
| Power Supply | Type | CRPS | |
| Input Range | AC 220-240V/10A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 1,968 Watts (220-240Vac input) | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 per node | |
| Supported CPU Series | (1) AMD EPYC™ 7002/7003 Series Processor | ||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | ||
| Memory | Supported DIMM Qty | (8) DIMM slots (per node) | |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | ||
| Capacity | Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (2) PCI-E x16 slots | |
|
Pre-installed TYAN Riser Card (PCI-E Gen4) |
(1) M8037T73-R16-1L riser card for (1) HH/HL / (1) M8037T73-L16-1L riser card for (1) HH/HL | ||
| Others | (1) PCI-E Gen.3 x16 OCP v2.0 mezzanine slot | ||
|
Physical Dimension Abbreviation |
HH/HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm) | ||
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Broadcom BCM5720 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (1) SFF-8654 connector for up to (4) SATA ports |
| Controller | Direct from AMD EPYC CPU | ||
| Speed | 6Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E Gen4 interface) | |
| Connector (Slim SAS) | (2) SFF-8654 for (4) NVMe ports | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||

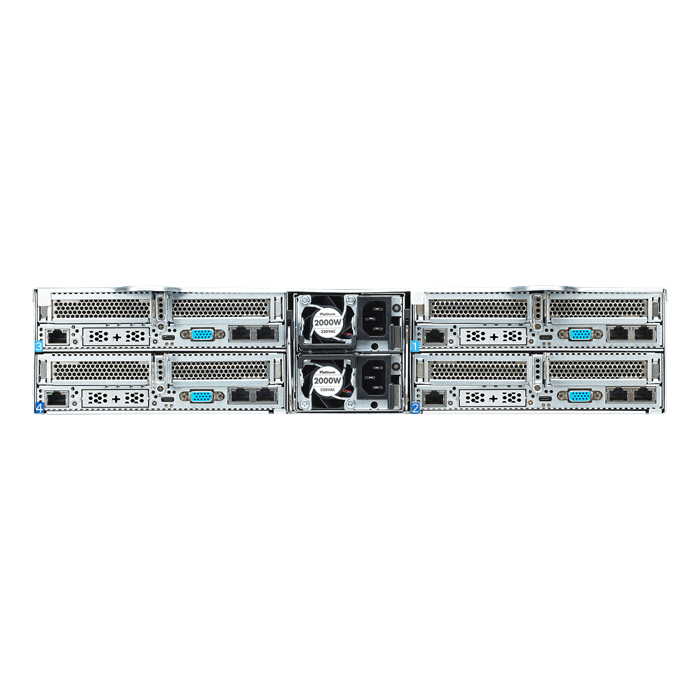

| I/O Ports | USB | (1) USB3.1 TYPE-C (@ rear) / (2) USB3.1 Gen1 ports (via Cable) | |
| COM | (1) header ( COM1 ) | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) GbE ports, (1) dedicated GbE for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) TN73-B8037 Barebone | |
| Manual | (1) Quick Installation Guide |
