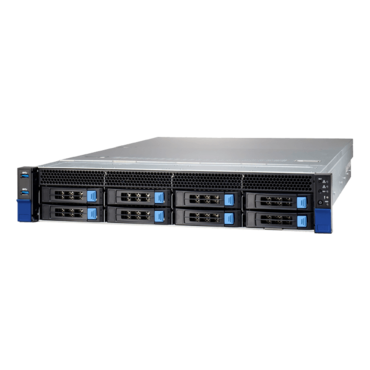

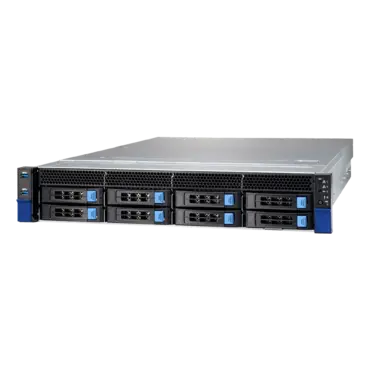

Transport HX TN83-B8251 (B8251T83E8HR-2T-N), 2U, 8x NVMe/SAS/SATA, 16x DDR4, 2200W Rdt PSU
Quantity:
- SKU: 13204800
- Manufacturer: TYAN
- MPN: B8251T83E8HR-2T-N
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$3,751.32
As low as $312.61/ Month*
| System | Form Factor | 2U Rackmount | ||
| Chassis Model | TN83 | |||
| Dimension (D x W x H) | 32.71" x 17.25" x 3.43" (831 x 438.4 x 87mm) | |||
| Motherboard Name | S8251GM2NE-2T# | |||
| Motherboard Notification | # The motherboard not sold separately | |||
| Gross Weight | 33.1 kg (73 lbs) | |||
| Net weight | 20.3 kg (44.8 lbs) | |||
| Front Panel | Buttons | (1) RST / (1) PWR w/ LED / (1) UID | ||
| LEDs | (2) LAN / (1) UID / (1) System Event | |||
| I/O Ports | (2) USB 3.1 Gen1 ports | |||
| External Drive Bay | Q'ty / Type | (8) 3.5/2.5" Hot-swap SSD/HDDs | ||
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s /NVMe | |||
| Supported HDD Interface | (8) SATA 6Gb/s / NVMe | |||
| Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | |||
| System Cooling Configuration | FAN | (5) 8cm fans | ||
| Power Supply | Type | RPSU | ||
| Input Range | AC 200-240V/12.6A | |||
| Frequency | 47-63 Hz | |||
| Output Watts | 2,200 Watts | |||
| Efficiency | PFC / 80 plus Platinum | |||
| Redundancy | 1+1 | |||
| Processor | Q'ty / Socket Type | (2) AMD Socket SP3 | ||
| Supported CPU Series | (2) AMD EPYC™ 7002 Series Processors | |||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 200W | |||
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots | ||
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | |||
| Capacity | Up to 1,024GB RDIMM / 4,096GB LRDIMM 3DS | |||
| Memory channel | 8 Channels per CPU | |||
| Memory voltage | 1.2V | |||
| Expansion Slots | Pre-install TYAN Riser Card
(PCI-E Gen4) |
(1) M8251T83-L32-4F riser card for (2) FH/FL PCI-E Gen4 x16 + (2) FH/FL PCI-E Gen4 x8 slots (left) * split by Mux. / (1) M8251T83-R32-4F riser card for (2) FH/FL PCI-E Gen4 x16 + (2) FH/FL PCI-E Gen4 x8 slots (right) * split by Mux. / (1) M8251T83-LR32-2L riser card for (1) HH/HL PCI-E Gen4 x16 (right) +(1) HH/HL PCI-E Gen4 x16 (left) slots | ||
| LAN | Q'ty / Port | (2) 10GbE ports, (1) GbE port dedicated for IPMI | ||
| Controller | Intel X550-AT2 | |||
| PHY | Realtek RTL8211E | |||
| Storage | SATA | Connector | (2) SATA-DOM / (8) SATA from (2) Slim SAS (8-ports) | |
| Controller | Direct from AMD EPYC CPU | |||
| Speed | 6Gb/s | |||
| RAID | N/A | |||
| NVMe | Connector (Slim SAS) | (4) SFF-8654 for (8) NVMe ports | ||
| Graphic | Connector type | D-Sub 15-pin | ||
| Resolution | Up to 1920x1200 | |||
| Chipset | Aspeed AST2500 | |||
| I/O Ports | USB | (2) USB3.1 Gen1 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) / (1) USB3.1 Gen1 port (Type-A) | ||
| COM | (1) DB-9 port (COM1) + (1) header (COM2) | |||
| VGA | (1) D-Sub 15-pin port | |||
| RJ-45 | (2) 10GbE ports, (1) dedicated GbE for IPMI | |||
| SATA | (8) SATA from (2) Slim SAS connectors + (2) SATA-DOM connectors | |||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | ||
| System Monitoring | Chipset | Aspeed AST2500 | ||
| Temperature | Monitors temperature for CPU & memory & system environment | |||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |||
| Others | Watchdog timer support | |||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | ||
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |||
| BIOS | Brand / ROM size | AMI / 32MB | ||
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | ||
| Regulation | FCC (SDoC) | Class A | ||
| CE (DoC) | Class A | |||
| CB/LVD | Yes | |||
| RCM | Class A | |||
| VCCI | Class A | |||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | ||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |||
| RoHS | RoHS 6/6 Compliant | Yes | ||
| Package Contains | Barebone | (1) TN83-B8251 Barebone | ||
| Manual | (1) Quick Installation Guide | |||
