Vision 330 CR ARGB, Tempered Glass, No PSU, ATX, Snow, Mid Tower Case
- SKU: 20078225
- Manufacturer: THERMALTAKE
- MPN: CA-11V-00M6WN-00
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Vision 330 CR ARGB, Tempered Glass, No PSU, ATX, Snow, Mid Tower Case

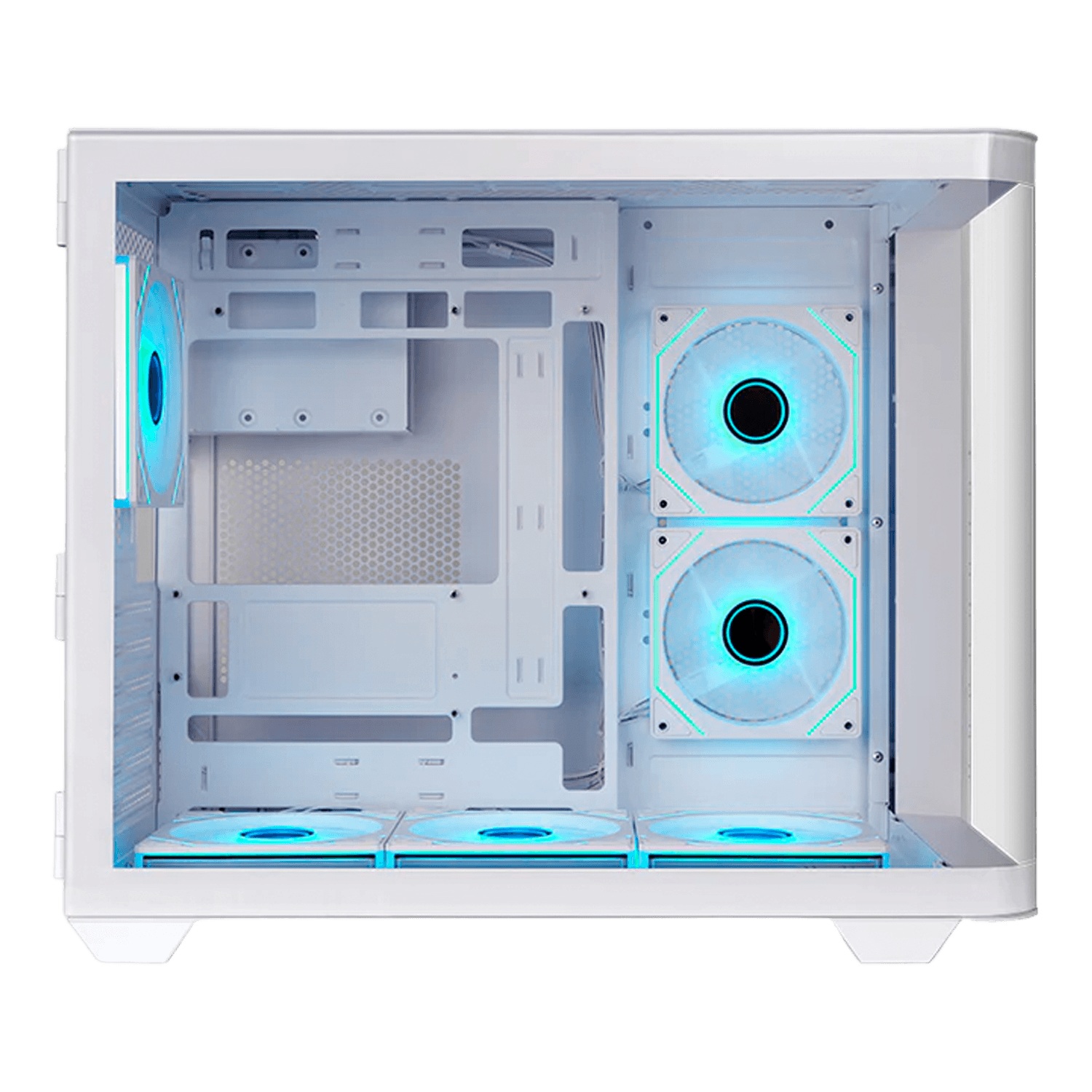

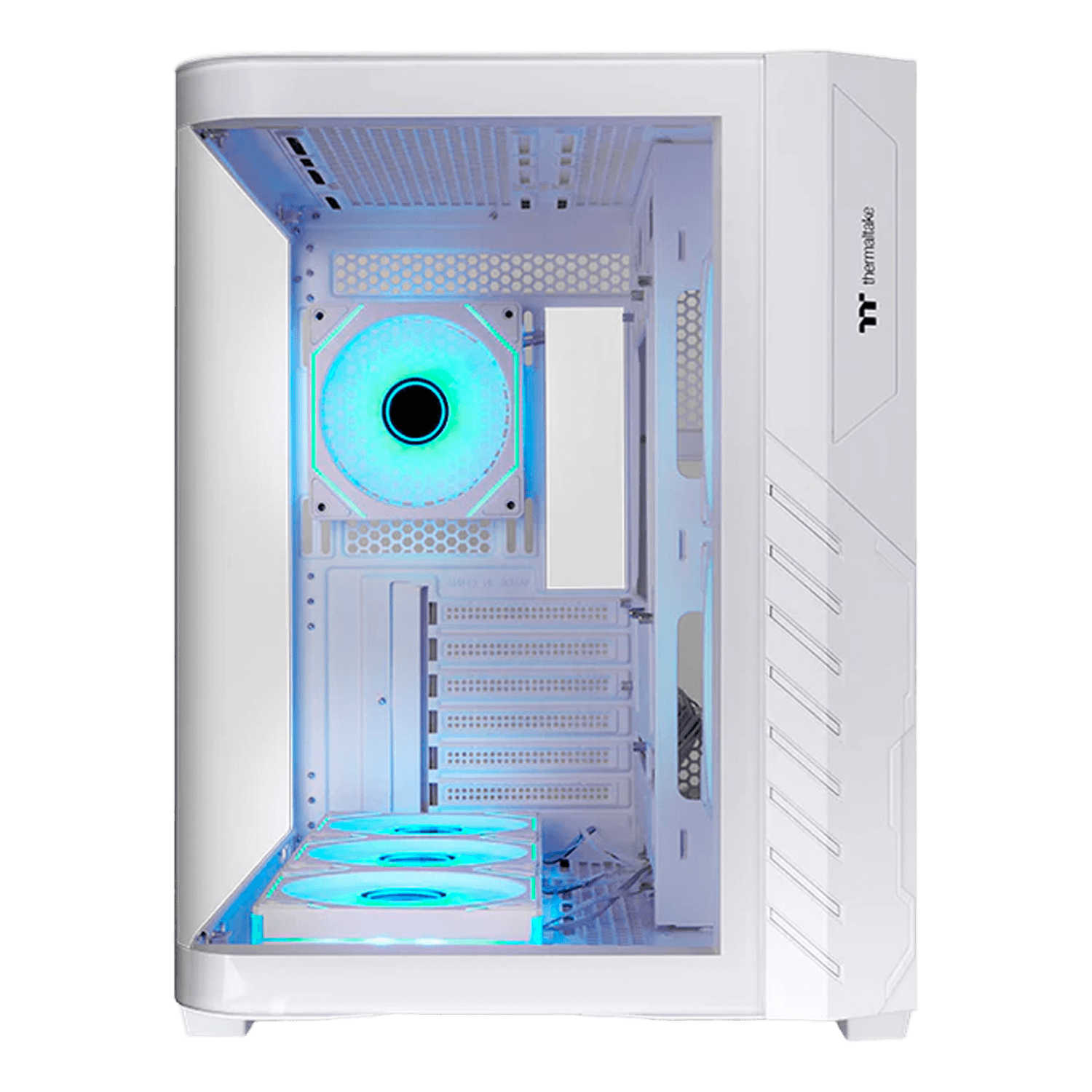

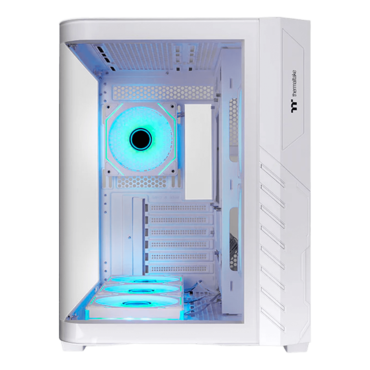

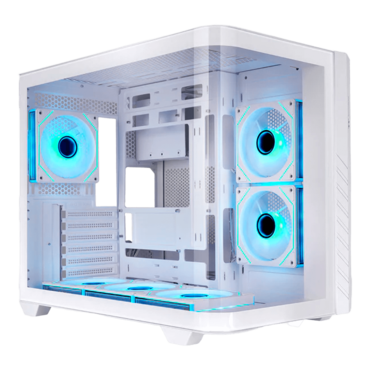

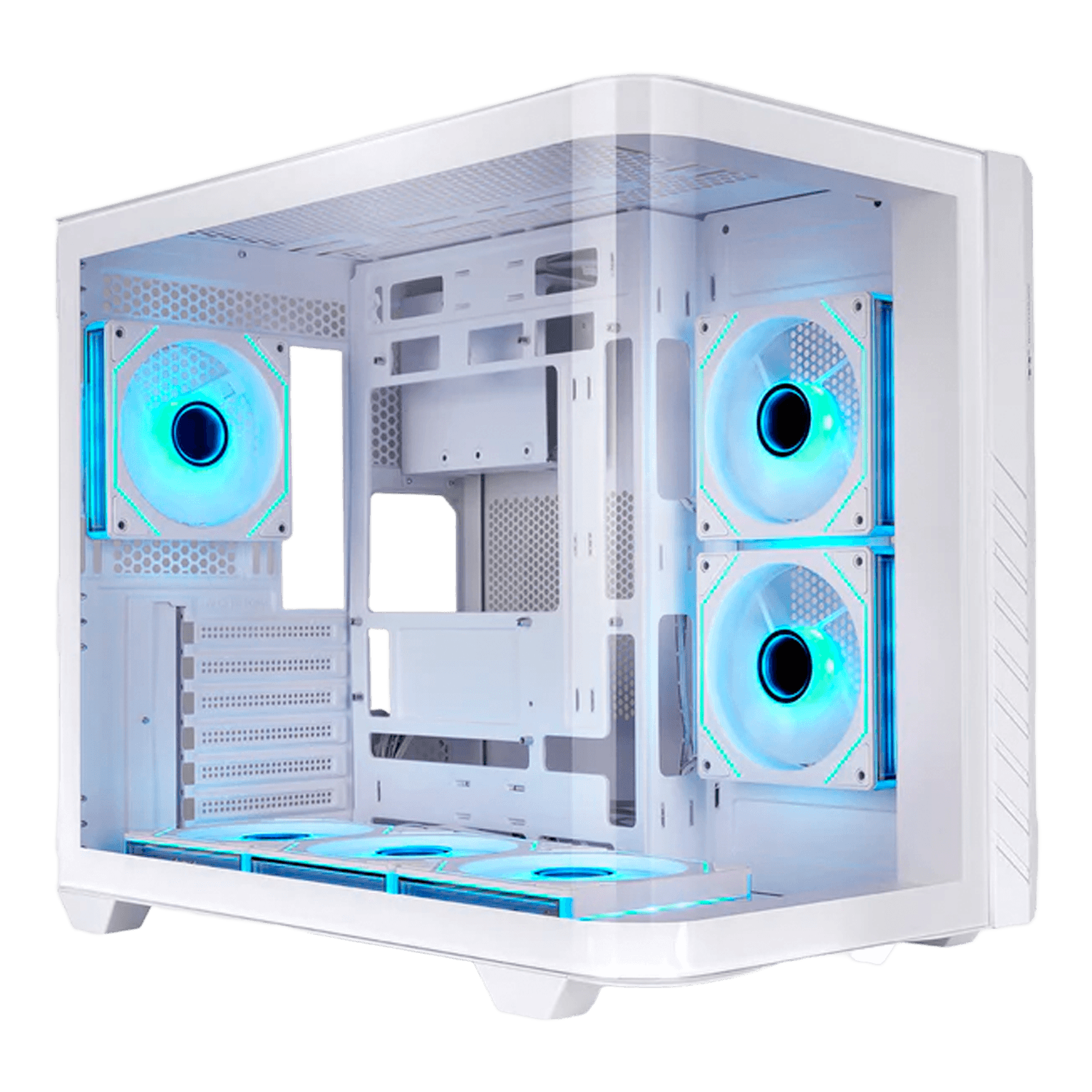

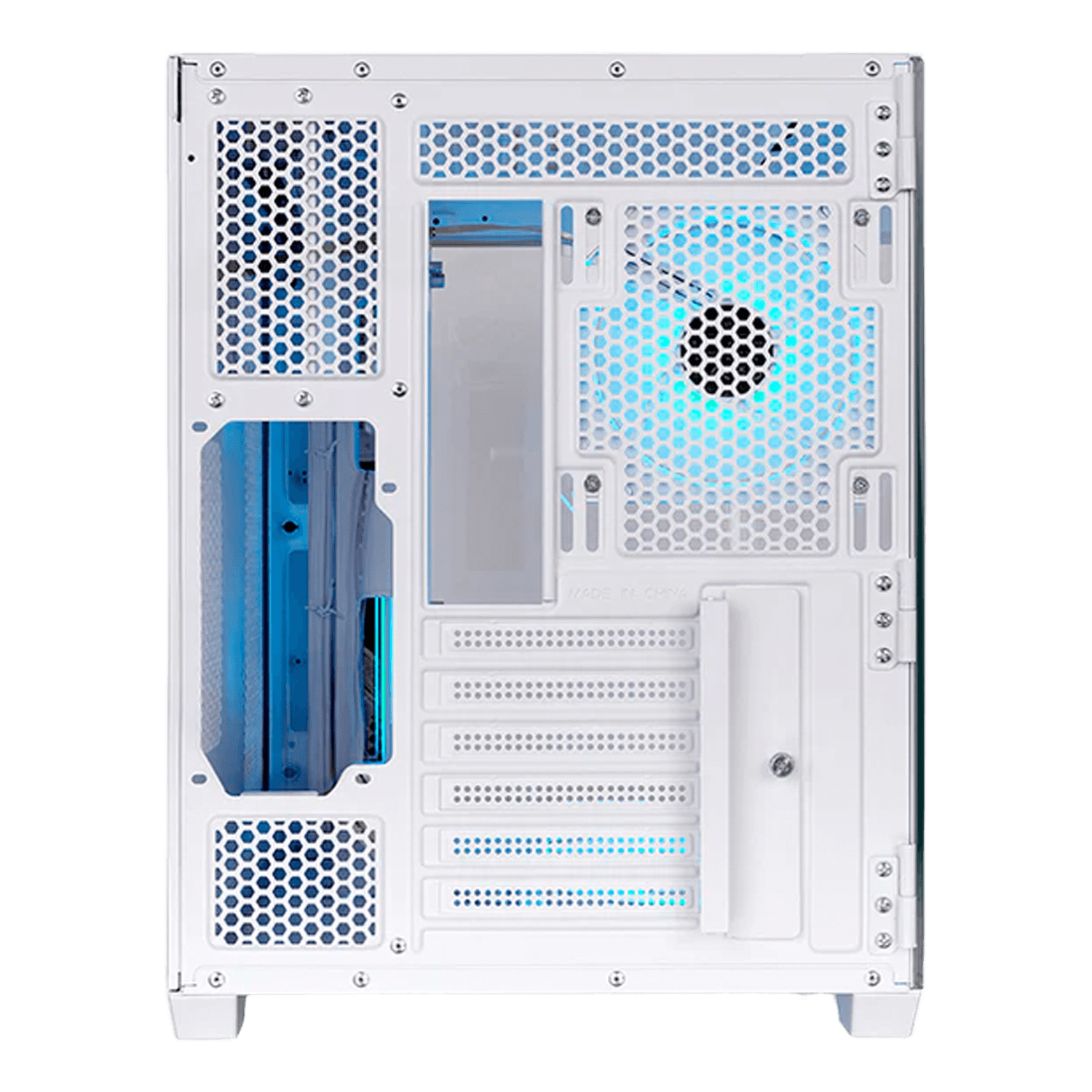

Built for amazing views, the Vision 330 CR ARGB Snow Mid Tower Chassis is an ATX case with a curved tempered glass front and left panel, and comes with five 120mm Infinity ARGB Reverse PWM Fans on the MB side and bottom, along with one 120mm Infinity ARGB PWM Fan at rear.
| P/N | CA-11V-00M6WN-00 |
| Series | Others |
| Case Type | Mid Tower |
| Dimensions | 388 x 295 x 479.4 mm (15.28 x 11.61 x 18.87 inch) |
| Side Panel | 4mm Curved Tempered Glass x 1 |
| Material | SPCC |
| Cooling System |

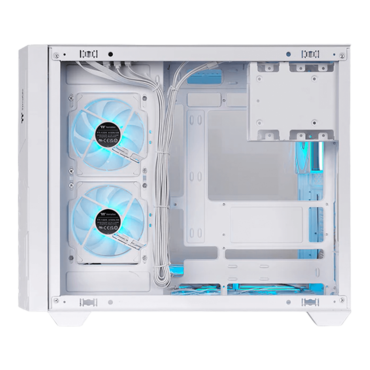

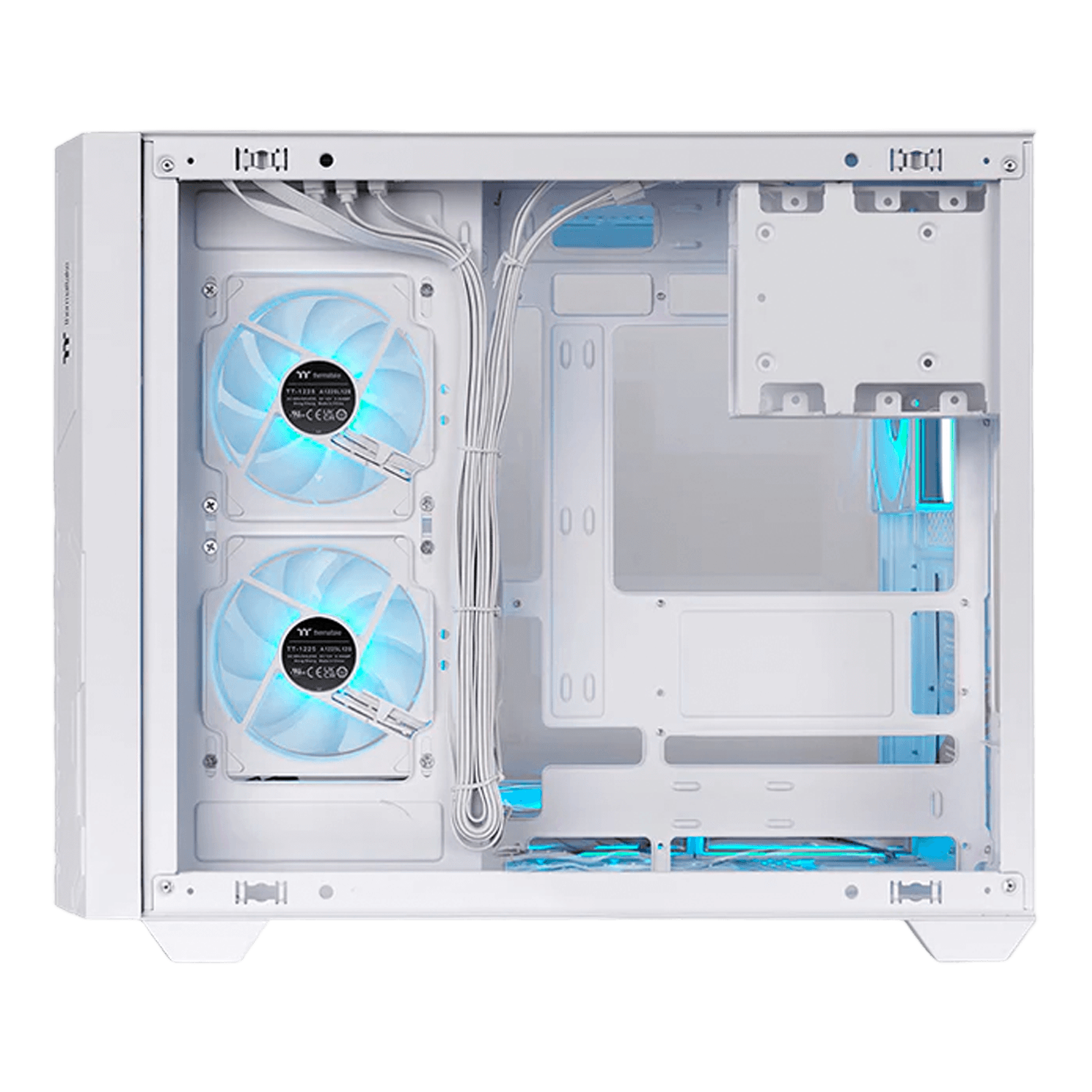

Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2 Bottom(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1 |
| Drive Bays | 2 x 3.5", 2 x 2.5" |
| Expansion Slots | 6 |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| Hidden-Connector Motherboard | 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm 1 x 140mm |
| Radiator Support |
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right (M/B Side): 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler max height: 175mm VGA max length: 420mm PSU max length: 250mm |
