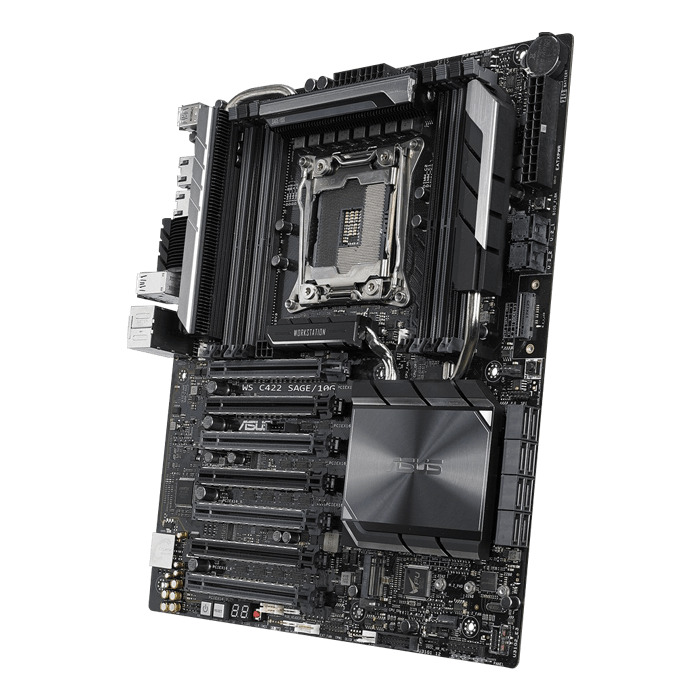

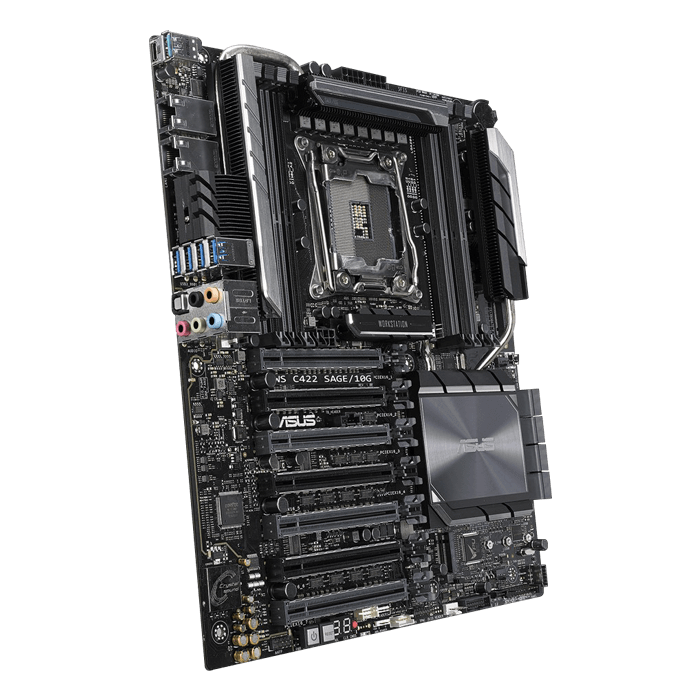

WS C422 SAGE/10G, Intel C422, LGA 2066, DDR4-2666 512GB LRDIMM / 8, M.2, U.2 Port, USB 3.1, 10GbLAN / 2, CEB Retail
Intel® LGA2066 CEB motherboard with 4-way SLI graphic power, dual Intel® 10G LAN, dual M.2 & U.2, USB 3.1 Gen2 connectors and ASUS Control Center
CPU | Intel® Socket 2066 Processors
Supports Intel® Virtual RAID on CPU (VROC) Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset | Intel® C422 |
Memory | 8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory *1
Quad Channel Memory Architecture |
Multi-GPU Support | Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology |
Expansion Slots | Intel® C422 Chipset
7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) *2 |
Storage | Intel® C422 Chipset : *3
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) 2 x U.2 connector Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology Enterprise supports Intel® Virtual RAID (VROC) support for CPU RAID |
LAN | Intel® X550-AT2
2 x 10 Gigabit LAN |
Audio | Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality |
USB Ports | Intel® C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) |
Workstation Feature | ASUS Control Center (ACC) |
Special Features | Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - MemOK! - Ai Charger+ - Onboard Button : Power/Reset - File Transfer DIGI + Power Control : - CPU Power: Digital 8-phase power design DIGI + Power Control : - DRAM Power: Digital 2-phase power design ASUS EZ DIY : - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Turbo App M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported Intel® Virtual RAID on CPU (VROC) ready ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins function Thunderbolt 3 support |
Operating System Support | Windows® 10 64-bit |

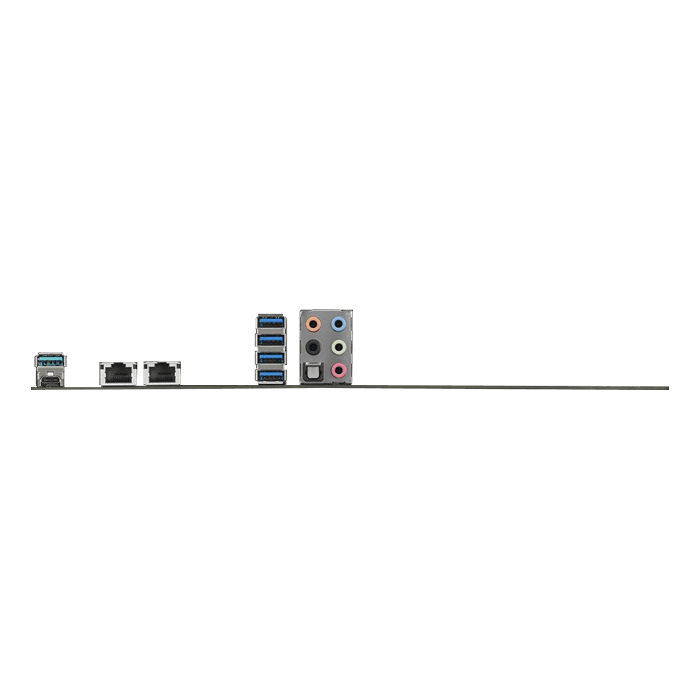

Back I/O Ports | 2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)Type-C 1 x Optical S/PDIF out 1 x 8-channel Audio I/O 4 x USB 3.1 Gen 1 (blue) |
Internal I/O Ports | 1 x Aura Addressable Strip Header(s)
2 x U.2 port 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback button(s) 1 x Water Pump header (4-pin) 1 x System panel connector 1 x Thermal sensor connector 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x M.2 Fan Header |
Accessories | User's manual
Addressable LED extension cable 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector |
Form Factor | CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
Weight | Color Box(3-in-1)
Net Weight: 4.28kg Gross Weight: 6.48kg Bulk Pack(5-in-1) Net Weight: 6.83kg Gross Weight: 9.91kg |
Environment | Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) |
Note | *1 Memory capacity supported depends on both CPU and Memory installed.
*2 Please refer to the block diagrams in the Appendix for more details in the manual. *3 Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. *4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10. |
