Product SKUs |

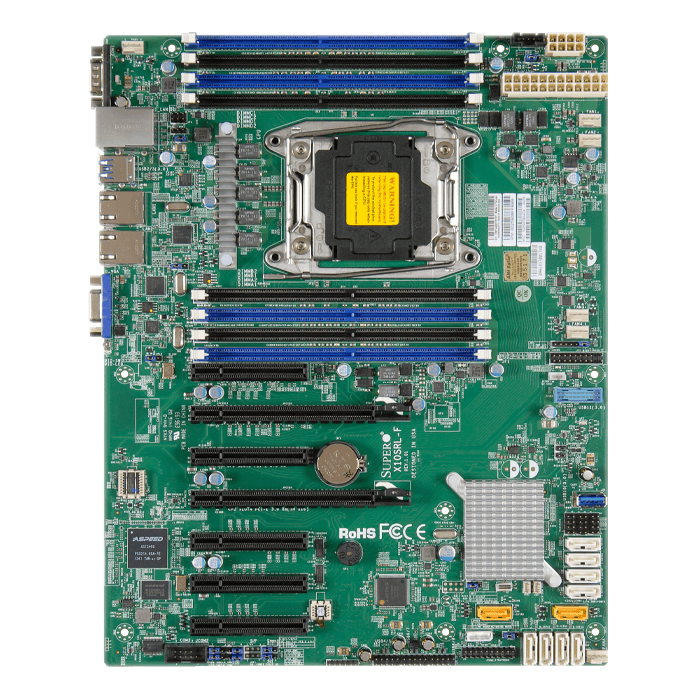

MBD-X10SRL-F-O |
|
Physical Stats |
Form Factor |
|
Dimensions |
- 12" x 9.6", (30.5cm x 24.4cm)
|
Processor |
CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
- Single Socket R3 (LGA 2011)
|
Core / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
Note |
† BIOS version 2.0 or above is required |
Note |
** Motherboard supports this maximum TDP. Please verify your system can thermally support
** E5-1600 series CPU does not support LRDIMM type memory |
System Memory |
Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB ECC 3DS LRDIMM
- Up to 512GB ECC LRDIMM
- Up to 256GB ECC RDIMM
|
Memory Type |
- 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
|
DIMM Sizes |
- 3DS LRDIMM: 128GB
- LRDIMM: 64GB, 32GB
- RDIMM: 32GB, 16GB, 8GB, 4GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
On-Board Devices |
Chipset |
|
SATA |
- SATA3 (6Gbps) via C612 controller
- RAID 0, 1, 5, 10 support
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
Network Controllers |
- Intel® i210 Dual Port Gigabit Ethernet
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
Graphics |
|
Input / Output |
SATA |
|
LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
USB |
- 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A)
- 8x USB 2.0 ports (2 rear + 6 via header)
|
Video |
|
Serial Port / Header |
- 1x serial port, 1x header
|
SuperDOM |
- 2x SuperDOM (Disk on Module) ports with built-in power
|
TPM |
|
Chassis (Optimized for X10SRL-F ) |
1U Chassis: |
- SC813MFTQ-R606CB
- SC813MFTQ-R400CB
- SC813MFTQ-441CB
|
2U Chassis: |
- SC213LT-600LPB
- SC826TQ-R500LPB
- SC823TQ-653LPB
- SC825TQ-563LPB
- SC825TQ-R720LPB
|
3U Chassis: |
- SC833T-653B
- SC836TQ-R500B
- SC836BE1C-R1K03B
|
Mid/Mini Tower Chassis: |
- SC732I-500B
- SC732D4F-903B
|
4U / Tower Chassis: |
- SC743T-665B
- SC842i-500B
- SC842TQ-665B
- SC842TQ-865B
|
Important Chassis Notes |
- To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.
|
Expansion Slots |
PCI-Express |
- 2x PCI-E 3.0 x8 (in x16) slots
- 2x PCI-E 3.0 x8 slots
- 2x PCI-E 3.0 x4 (in x8) slots
Auto-switch to 1 x8 and 1 x0
- 1x PCI-E 2.0 x4 (in x8) slot
|
System BIOS |
BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
|
Management |
Software |
- Intel® Node Manager
- IPMI 2.0 with KVM support
- SuperDoctor® 5
- Watch Dog
- NMI
- SPM
- SUM
|
Power Configurations |
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
|
PC Health Monitoring |
Voltage |
- Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
|
FAN |
- Total of 6 fan headers supporting up to 6 fans
- 6 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
LED |
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
|
Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill support
- RoHS, Halogen Free
|
