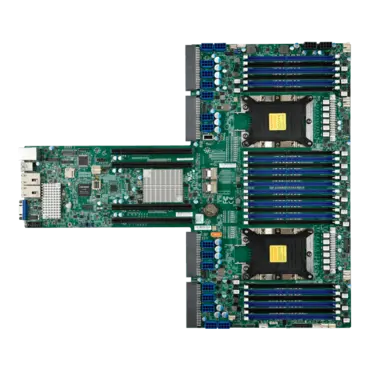

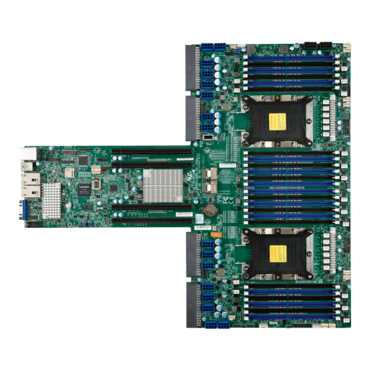

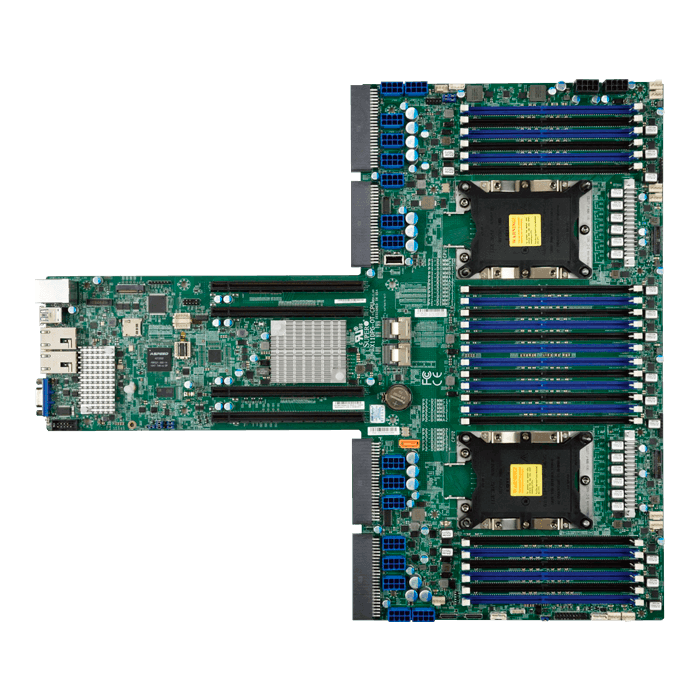

X11DPG-OT-CPU, Intel® C622, LGA 3647, DDR4-2933 6TB 3DS ECC LRDIMM / 24, SATA DOM, VGA, M.2, 10GbLAN / 2, Proprietary

Quantity:
  • SKU: 13576971
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X11DPG-OT-CPU-P
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,492.67
Quantity:
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Intel® C622
  • Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slotsUp to 6TB Intel® Optane? DC Persistent Memory in memory mode (Cascade Lake only)
  • 4 PCI-E 3.0 x24 slots to PCI-E board
    M.2 Interface: 1 PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key,
    2 PCI-E 3.0 NVMe x4 Internal Port(s)
  • 1 VGA port
  • Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with 10Gbase-T from C622
Product SKUs
MBD-X11DPG-OT-CPU
  • X11DPG-OT-CPU
Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 17.0" x 19.5" (43.18cm x 49.53cm)
Processor/Cache
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
Note
  • *2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
  • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity
  • Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slotsUp to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 128GB
  • 3DS LRDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C622
SATA
  • Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 10Gbase-T
    from C622
Graphics
  • Aspeed AST2500 BMC
Input / Output
USB
  • 1 USB 2.0 ports (1 Type A)
  • 4 USB 3.0 ports (4 rear)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x24 slots to PCI-E board
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages
FAN
  • 10x 4-pin fan headers (up to 10 fans), Overheat LED indication, PWM fan speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment
LED
  • CPU / System Overheat LED, UID/Remote UID
Other Features
  • ACPI power management, Chassis intrusion header, SDDC, UID
