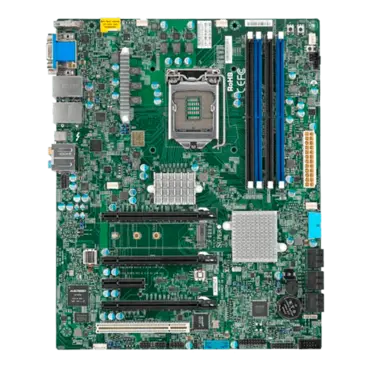

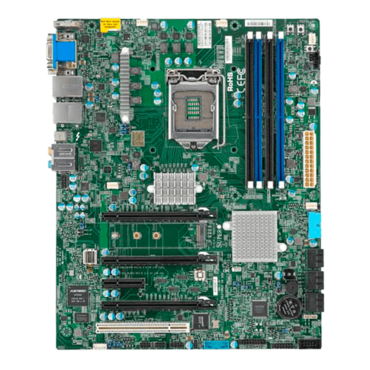

X11SAT-F, Intel C236, LGA 1151, DDR4-2133 64GB ECC UDIMM / 4, HDMI, M.2, Thunderbolt, USB 3.1, GbLAN / 2, ATX Retail

Quantity:

SKU: 10159045
Manufacturer: SUPERMICRO
MPN: MBD-X11SAT-F-O
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Starting At

$456.64

As low as $38.05/ Month*

1. Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen. Core™ i7/i5/i3 series
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC
UDIMM DDR4 2133MHz; 4x DIMM slots
4. 3x PCI-E 3.0 x16 (run at 16/NA/16 or
16/8/8), 1x PCI-E 3.0 x1 (in x4), and
1x 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT
Single GbE LAN with Intel® i219V
6. 6x SATA3 (6Gbps) via C236;
RAID 0, 1, 5, 10
7. I/O: 1x VGA, 1x COM, TPM 1.2 header
8. 6x USB 3.0 (2 rear + 4 via header)
6x USB 2.0 (2 rear + 4 via headers)
1x USB 3.1 (10Gbps) Type C ports
(rear, share with Thunderbolt and
display port)
9. M.2 NGFF connector

Physical Stats:	Form Factor: ATX Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
Processor:	Intel® 6th Generation Core™ i3 series Intel® 6th Generation Core™ i5 series Intel® 6th Generation Core™ i7 series Intel® Xeon® processor E3-1200 v5 series Socket H4 (LGA 1151) supported; CPU TDP support Up to 95W TDP
System Memory:	Memory Capacity: Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes: 4GB, 8GB, 16GB Memory Voltage: 1.2 V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices:	Chipset: Intel® C236 Sata: Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10; + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support) Network Controllers: Single LAN with Intel® Ethernet Controller I210-AT + Single Intel Ethernet PHY i219LM Audio: ALC 888S HD Audio Graphics: Aspeed AST2400 BMC
Input/Output:	USB: 4 USB 2.0 ports (2 rear, 2 via header) 6 USB 3.0 ports (2 rear, 4 via header) 1 USB 3.1 (10 Gb/s) Type C ports (Rear, share with Thunderbolt and Display port) Video Output: 1 DVI - D, 1 DP (DisplayPort), 1 HDMI, 1 VGA 1 Aspeed AST2400 BMC * Display Port is Type C connector , support up to DP1.2, HDMI support up to HDMI2.0, VGA is for IPMI only * Serial Port/Header: 1 COM Ports (1 header) TPM: 1 TPM 2.0 Header
Expansion Slots:	3 PCI-E 3.0 x16 1 PCI-E 3.0 x1 1 - 5V PCI 32bit *3 PCIex16 slots are running at 16/NA/16 or 16/8/8.* *PCIe x1 is in x4 slot*
System BIOS:	BIOS Type: AMI UEFI BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 PCI 2.3 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Manageability:	Software: IPMI2.0, SPM, SuperDoctor® 5, Watchdog Power Configurations: ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery
PC Health Monitoring:	Voltage: +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN: Total of 5 fan headers supporting up to 5 fans Fan speed control Overheat LED indication Temperature: CPU thermal trip support I2C temperature sensing logic PECI Thermal Monitor 2 (TM2) support LED: CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features: 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
