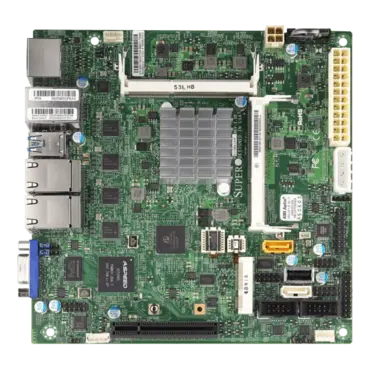

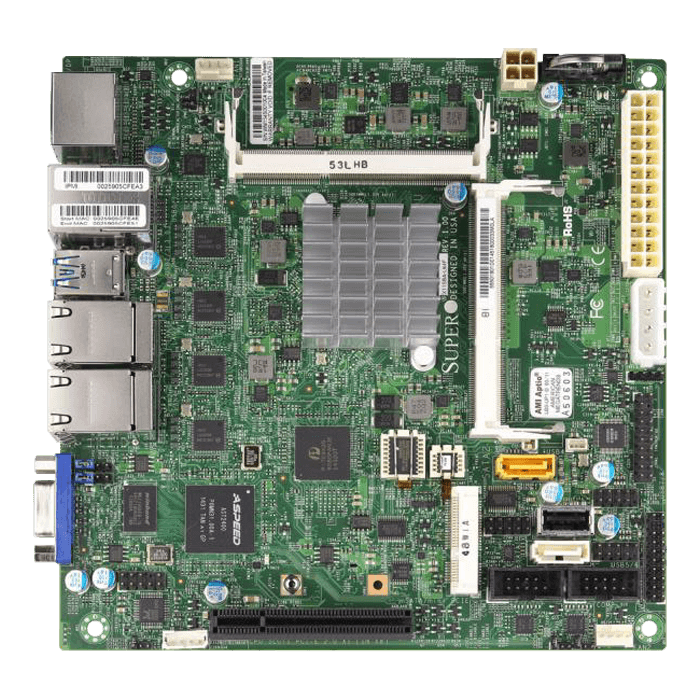

X11SBA-F, Intel® Pentium® N3710, FCBGA1170, DDR3-1600 8GB SO-DIMM / 2, SATA DOM, DP, GbLAN / 2, Mini-ITX OEM

SKU: 10159054

Manufacturer: SUPERMICRO

MPN: MBD-X11SBA-F-B

Availability: Special Order


Price: $243.35
or as low as $8/month
Quantity:
  1. Intel® Pentium® Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
  2. System-on-Chip
  3. Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
  4. 1 PCI-E 2.0 x1 (in x8),
    1 Mini-PCIe (mSATA support)
  5. Dual GbE LAN with Intel® i210-AT
  6. 1 HDMI, 1 DP, Intel HD Graphics,
    VGA port for BMC
  7. 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
  8. I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
  9. IPMI 2.0 with dedicated Port and KVM
  10. Supports 12V DC power input
Product SKUs
MBD-X11SBA-F
  • X11SBA-F
Physical Stats
Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU
  • Intel® Pentium Processor N3710.
  • Single Socket FCBGA1170 supported, CPU TDP support 6W
System Memory
Memory Capacity
  • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1600MHz, in 2 DIMM slots
  • Max memory support up to 8GB only
Memory Type
  • 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports;
IPMI
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
Audio
  • ALC 888S HD Audio
Graphics
  • SoC, Aspeed AST2400 BMC
  • Intel HD Graphics from SoC N3710, VGA port for IPMI and KVM
Input / Output
SATA
  • 2 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 2.0 ports (2 rear + 4 headers + 1 Type A)
  • 2 USB 3.0 ports (2 rear)
Video Output
  • 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port,
  • Intel HD Graphics from SoC N3710, VGA port for IPMI and KVM
Serial Port / Header
  • 2 COM Ports (2 headers)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x1 (in x8 slot)
  • 1 Mini-PCI-E with mSATA support
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • ACPI 5.0
  • UEFI 2.3.1
  • SMBIOS 2.7.1
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real Time Clock) Wakeup
Management
Software
  • IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Supports system management utility, System level control, VBAT
FAN
  • 2x 4-pin fan headers (up to 2 fans), Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
  • Standby alert LED
Other Features
  • 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, UID, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
