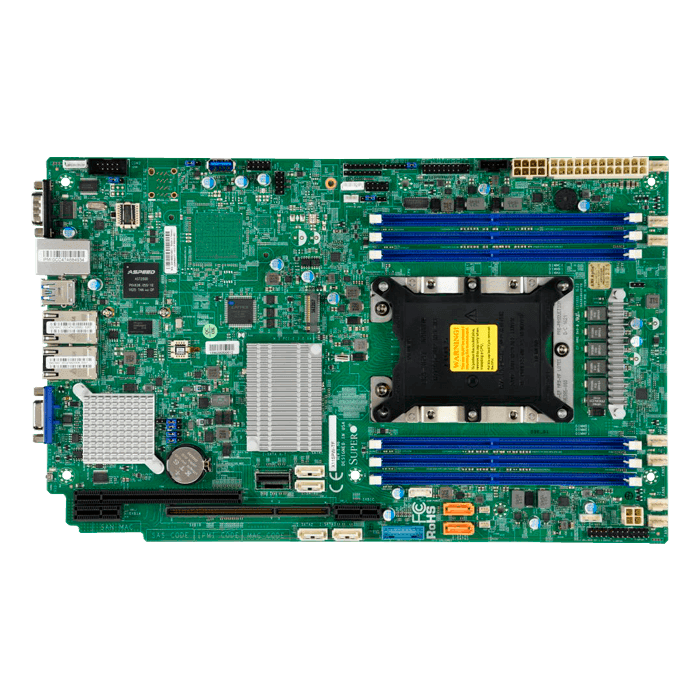

X11SPW-TF, Intel C622, LGA 3647, DDR4-2666 768GB 3DS LRDIMM / 6, VGA, M.2, 10GbLAN / 2, Proprietary WIO OEM

SKU: 11423406

Manufacturer: SUPERMICRO

MPN: MBD-X11SPW-TF-B

Availability: Special Order


Price: $454.25
or as low as $40/month
Quantity:
  1. Intel® Xeon® Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 205W
  2. Intel® C622 chipset
  3. Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
  4. Expansion slots:
    1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot
  5. 2 10GbE LAN ports
  6. 10 SATA3 (6Gbps) via C622
  7. I/O: 1 VGA, 2 COM, TPM header
  8. 2 SuperDOM with built-in power
  9. M.2 NGFF connector
Product SKUs
MBD-X11SPW-TF
  • X11SPW-TF
  • (Bulk Pack)
Physical Stats
Form Factor
  • Proprietary WIO
Dimensions
  • 8" x 13" (20.32cm x 33.02cm)
Processor/Cache
CPU
  • Intel® Xeon® Processor Scalable Family.
  • Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache
  • Up to 28 cores
System Memory
Memory Capacity
  • 6x 288-pin DDR4 DIMM slots
  • Up to 768GB ECC 3DS LRDIMM
  • Up to 384GB ECC LRDIMM
  • Up to 192GB ECC RDIMM
Memory Type
  • 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C622
SATA
  • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X557
Graphics
  • Aspeed AST2500 BMC
Input / Output
USB
  • 7 USB 2.0 ports (2 rear + 5 via header(s)),
  • 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
  • 1 VGA port(s)
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header(s))
TPM
  • TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 1 PCI-E 3.0 x32 Left Riser Slot
M.2
  • Interface: PCIe 3.0 x4 and SATA
  • Form Factor: 2280, 22110
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or late
Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN
  • 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature
  • CPU thermal trip support
  • PECI
LED
  • CPU / System Overheat LED
  • UID/Remote UID
  • Suspend static indicator LED
Other Features
  • ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
