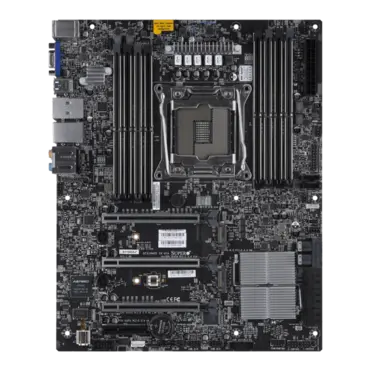

X11SRA-F, Intel C422, LGA 2066, DDR4-2666 512GB LRDIMM / 8, SATA DOM, VGA, M.2, U.2 Port, USB 3.1, GbLAN / 2, ATX Retail

SKU: 11552198

Manufacturer: SUPERMICRO

MPN: MBD-X11SRA-F-O

Availability: Low Stock


Price: $369.86
or as low as $12/month
Quantity:
  1. Intel® Xeon® Processor Skylake-W , Intel® Xeon® Processor W Family., Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 160W TDP
  2. Intel® C422
  3. Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
  4. 3 PCI-E 3.0 x16,
    1 PCI-E 3.0 x4***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
    M.2 Interface: 2 PCI-E 3.0 x4
    M.2 Form Factor: 22110
    M.2 Key: M-Key (RAID 0,1 support)
    U.2 Interface: 2 PCI-E 3.0 x4
  5. Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    *iRST enabled, only SATA2 to SATA5 support RAID.
  6. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108
Product SKUs
MBD-X11SRA-F
  • X11SRA-F
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
  • Intel® Xeon® Processor Skylake-W , Intel® Xeon® Processor W Family.
  • Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 160W TDP
System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C422
SATA
  • Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • *iRST enabled, only SATA2 to SATA5 support RAID.
IPMI
  • ASPEED AST2500
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108
Audio
  • ALC 1220 7.1 HD Audio
Input / Output
LAN
  • RJ45 Shared IPMI LAN port
USB
  • 6 USB 2.0 ports (2 rear + 4 headers),
  • 6 USB 3.0 ports (4 rear + 2 headers),
  • 2 USB 3.1 ports ( + 2 Type A)
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x4
  • ***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factor: M-Key 22110 (RAID 0,1 support)
  • *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID.
System BIOS
BIOS Type
  • UEFI 128Mb
Management
Software
  • AMT, IPMI2.0, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control
Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • PECI
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
LED
  • CPU / System Overheat LED
Other Features
  • ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SRA-F 1 X11SRA-F Motherboard
SATA cable CBL-0044L 6 SATA cable
IO shield MCP-260-00118-0N 1 X11SRA series IO shield
Quick Reference Guide MNL-2005-QRG 1 X11SRA series Quick Reference Guide
Giftbox Box-0121 1 Giftbox
Giftbox foam BOX-019 1 Giftbox foam
