Product SKUs |

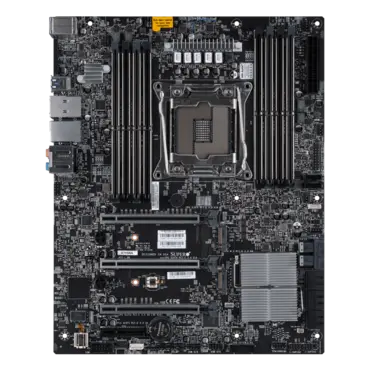

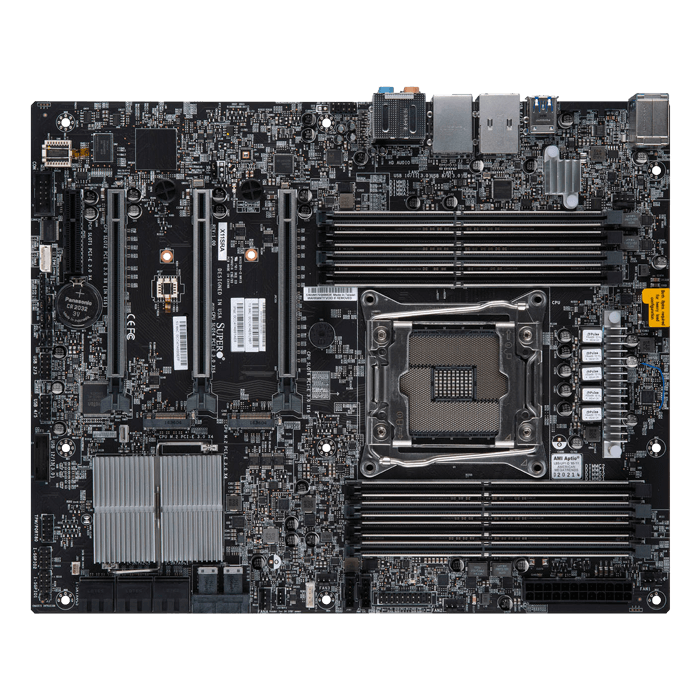

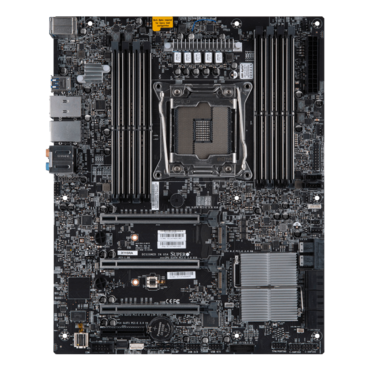

MBD-X11SRA |
|
Physical Stats |
Form Factor |
|
Dimensions |
- 12" x 9.6" (30.48cm x 24.38cm)
|
Processor/Cache |
CPU |
- Intel® Xeon® Processor Skylake-W , Intel® Xeon® Processor W Family.
- Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 160W TDP
|
System Memory |
Memory Capacity |
- Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
|
Memory Type |
- 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
|
DIMM Sizes |
- 4GB, 8GB, 16GB, 32GB, 64GB
|
Memory Voltage |
|
On-Board Devices |
Chipset |
|
SATA |
- Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- *iRST enabled, only SATA2 to SATA5 support RAID.
|
Network Controllers |
- Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Aquantia 5G LAN chip AQC108
|
Audio |
|
Input / Output |
LAN |
- RJ45 Shared IPMI LAN port
|
USB |
- 6 USB 2.0 ports (2 rear + 4 headers),
- 6 USB 3.0 ports (4 rear + 2 headers),
- 2 USB 3.1 ports ( + 2 Type A)
|
Serial Port / Header |
|
TPM |
|
Expansion Slots |
PCI-E |
- 3 PCI-E 3.0 x16,
- 1 PCI-E 3.0 x4
- ***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
|
M.2 |
- M.2 Interface: 2 PCI-E 3.0 x4
- Form Factor: M-Key 22110 (RAID 0,1 support)
- *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID.
|
System BIOS |
BIOS Type |
|
Management |
Software |
- AMT, SuperDoctor® 5, Watchdog
|
PC Health Monitoring |
Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT
|
FAN |
- 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control
|
Temperature |
- CPU thermal trip support
- Monitoring for CPU and chassis environment
- PECI
- Support to monitor Supermicro AOC temperatures from IPMI or SD 5
|
LED |
- CPU / System Overheat LED
|
Other Features |
- ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL
|
Operating Environment |
Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
Non-Operating Temperature Range |
- -20°C ~ 60°C (-4°F ~ 140°F)
|
Operating Relative Humidity Range |
- 10% ~ 85% (non-condensing)
|
Non-Operating Relative Humidity Range |
- 10% ~ 95% (non-condensing)
|
