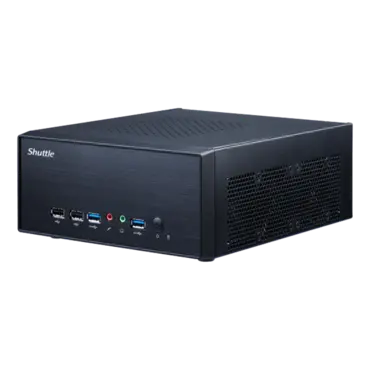

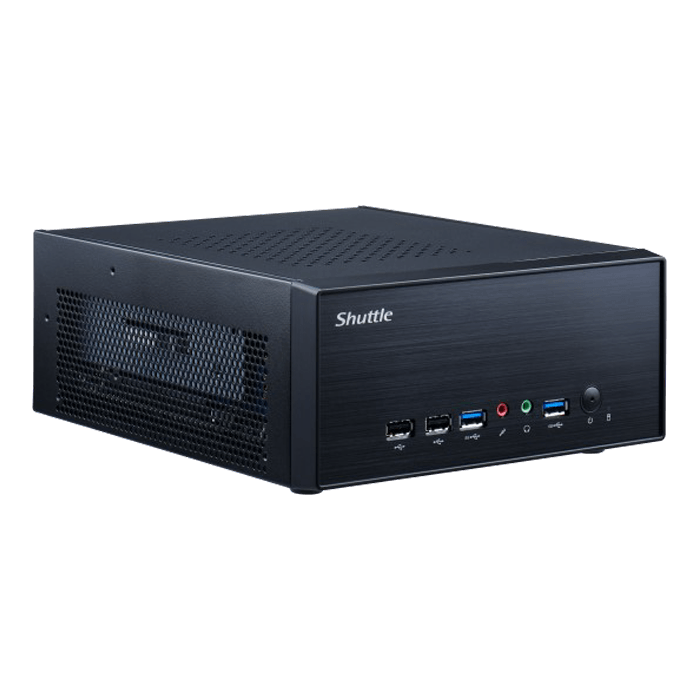

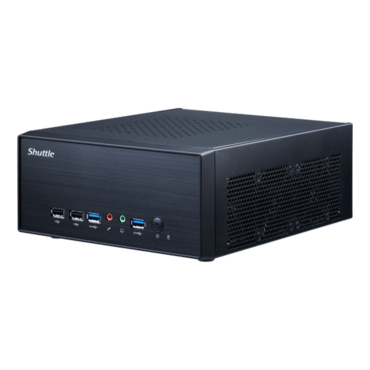

XPC Slim 5L XH510G2 TAA Compliant, Intel® H510 Chipset, 2x DDR4 SO-DIMM, 2x M.2, 2.5" HDD/SSD, Slim PC Barebone
Quantity:
- SKU: 15959979
- Manufacturer: SHUTTLE
- MPN: XH510G2
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$456.98
| PROCESSOR | Supports Intel® 10th/11th Core® i3/i5/i7/i9 series, Pentium, and Celeron® LGA 1200 65W processors | |
| MEMORY | 2 x SODIMM DDR4 2666/2933/3200 MHz, Supports dual channel up to 64GB (32GB x 2) | |
| VIDEO GRAPHICS | Intel UHD Graphics | |
| VIDEO OUTPUT |
HDMI + DisplayPort Supports dual independent displays |
|
| AUDIO | Realtek ALC662, HD audio | |
| ETHERNET |
Intel i219 10/100/1000 MB/s operation |
Supports Wake on LAN function |
| STORAGE INTERFACE | SATA 6 GB/s | |
| ONBOARD CONNECTORS |
(1) Raiser card slot (1) 4 pin fan connector (1) SATA connector |
|
| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (2) USB 2.0 |
(2) USB 3.2 Gen 1 (1) MIC-in (1) Line-Out |

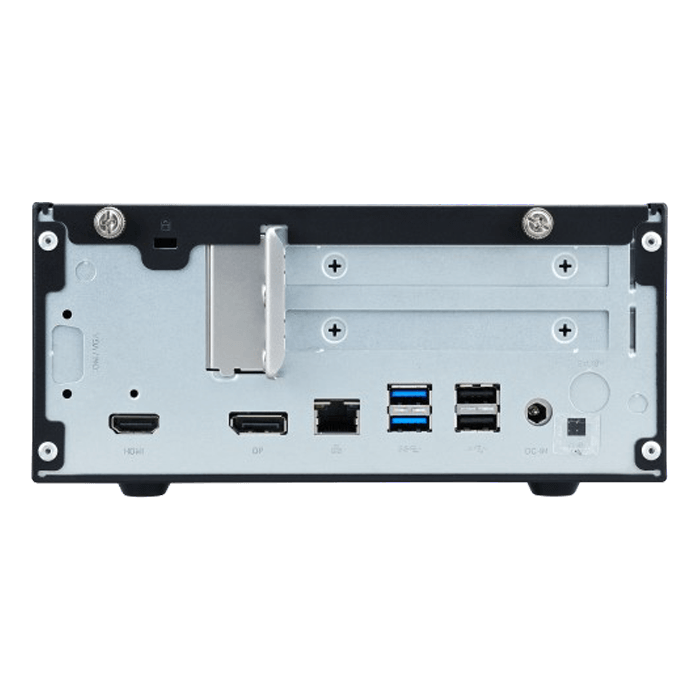

| BACK PANEL |
(1) HDMI (1) DisplayPort (2) USB 3.2 Gen 1 (2) USB 2.0 |
(1) DC-in (1) RJ45 Gigabit LAN (2) Antenna holes (1) Hole for PRC01 power connector |
| DRIVE BAYS | (1) 2.5" HDD/SSD bay | |
| DIMENSIONS | 9.8 (L) x 7.9 (W) x 3.7 (H) inches | |
| POWER | Input: 100 - 240V AC Output: 19.5V/9.23A DC | 180W power supply |
| ACCESSORIES |
Quick Guide Screw package VESA bracket with screws Power adapter Power cord |
Driver DVD WLN-M (optional) WWN03 (optional) PRC01 optional accessory kit |
| EXPANSION SLOT |
(1) M.2 MAX to 2280 Type M (top, NVME & SATA support) (1) M.2 MAX to 2280 Type M (bottom, NVME & SATA support) |
(1) M.2 MAX to 2230 Type AE key socket (1) PCI-E X16 (1) PCI-E X1 |
| OS SUPPORT | Windows 10/11 64 bit, Linux (64 bit) | |
| CERTIFICATION | Safety: CB, BSMI, cTUVus | EMI: FCC, CE, BSMI, RCM, VCCI |
