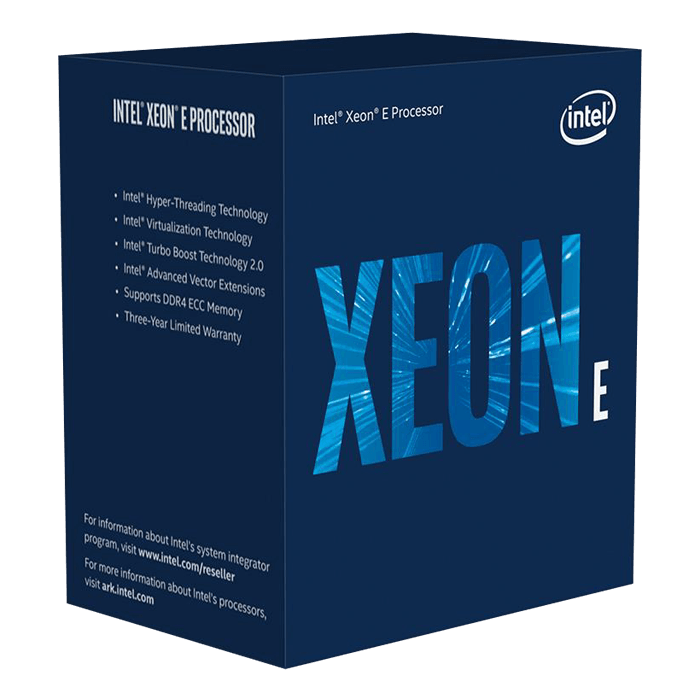

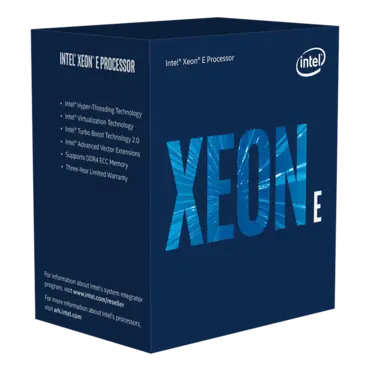

Xeon® E-2136 6-Core 3.3 - 4.5GHz Turbo, LGA 1151, 8 GT/s DMI3, 80W, Processor

Quantity:
  • SKU: 12567637
  • Manufacturer: INTEL
  • MPN: BX80684E2136
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$363.42
Quantity:
Essentials
Product Collection Intel® Xeon® E Processor
Code Name Products formerly Coffee Lake
MPN BX80684E2136
Vertical Segment Server
Processor Number E-2136
Status Launched
Launch Date Q3'18
Lithography 14 nm
Performance
# of Cores 6
# of Threads 12
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 4.50 GHz
Cache 8 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 80 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported Yes
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations 1x16,2x8,1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Optane™ Memory Supported Yes
Intel® Turbo Boost Technology 2.0
Intel® vPro™ Technology Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® TSX-NI Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
