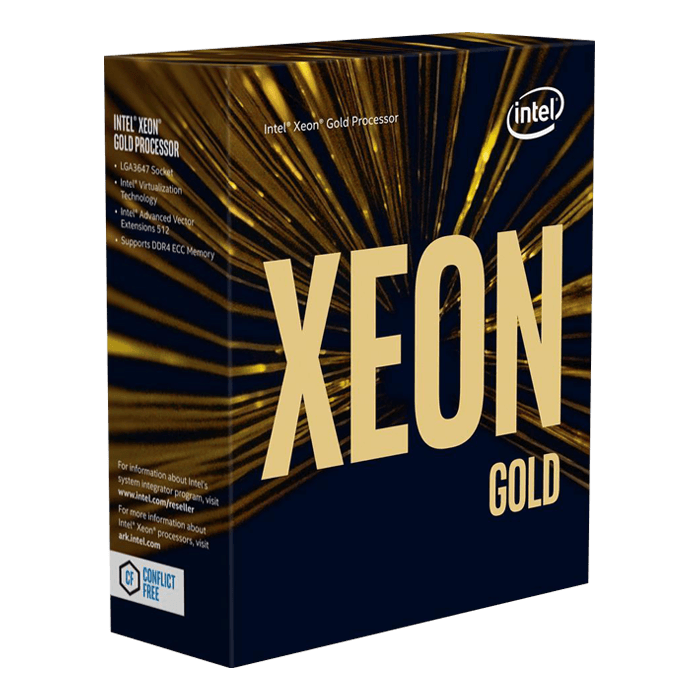

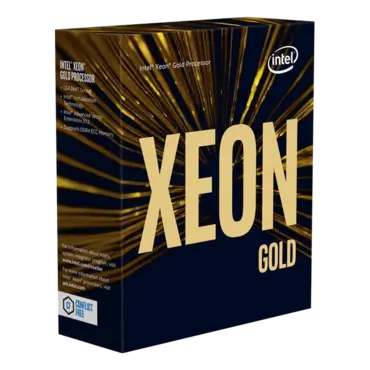

Xeon® Gold 6240R 24-Core 2.4 - 4.0GHz Turbo, LGA 3647, 2 UPI, 165W, Retail Processor

Quantity:
  • SKU: 13273350
  • Manufacturer: INTEL
  • MPN: BX806956240R
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,470.10
Quantity:
Essentials
Product Collection 2nd Generation Intel® Xeon® Scalable Processors
Code Name Products formerly Cascade Lake
Vertical Segment Server
Processor Number 6240R
Off Roadmap No
Status Launched
Launch Date Q1'20
Lithography 14 nm
Performance
# of Cores 24
# of Threads 48
Processor Base Frequency 2.40 GHz
Max Turbo Frequency 4.00 GHz
Cache 35.75 MB
# of UPI Links 2
TDP 165 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Max # of Memory Channels 6
ECC Memory Supported ‡ Yes
Intel® Optane™ DC Persistent Memory Supported Yes
Expansion Options
Scalability 2S
PCI Express Revision 3.0
Max # of PCI Express Lanes 48
Package Specifications
Sockets Supported FCLGA3647
TCASE 90°C
Package Size 76.0mm x 56.5mm
Advanced Technologies
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Select Technology - Performance Profile No
Intel® Speed Select Technology - Base Frequency No
Intel® Resource Director Technology (Intel® RDT) Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set Extensions Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
# of AVX-512 FMA Units 2
Enhanced Intel SpeedStep® Technology Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Run Sure Technology Yes
Mode-based Execute Control (MBE) Yes
