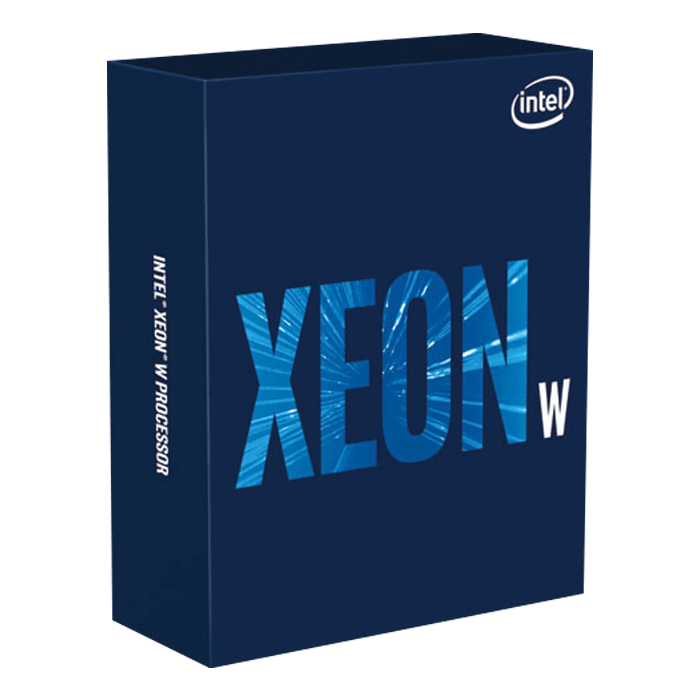

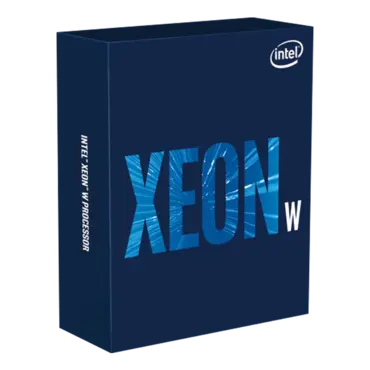

Xeon® W-1270 8-Core 3.4 - 5.0GHz Turbo, LGA 1200, 80W, Retail Processor

Quantity:
  • SKU: 13772110
  • Manufacturer: INTEL
  • MPN: BX80701W1270
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$410.88
Quantity:
Essentials
Product Collection Intel® Xeon® W Processor
Code Name Products formerly Comet Lake
Vertical Segment Workstation
Processor Number W-1270
Status Launched
Launch Date Q2'20
Lithography 14 nm
Included Items This product is available in tray and box. For boxed product, a thermal solution is included
Use Conditions Workstation
Performance
# of Cores 8
# of Threads 16
Processor Base Frequency 3.40 GHz
Max Turbo Frequency 5.00 GHz
Cache 16 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency 5.00 GHz
TDP 80 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2933
Max # of Memory Channels 2
Max Memory Bandwidth 45.8 GB/s
ECC Memory Supported Yes
Processor Graphics
Processor Graphics Intel® UHD Graphics P630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4) 4096x2160@30Hz
Max Resolution (DP) 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x9BC6
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015W
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® vPro™ Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
M/P# BX80701W1270
