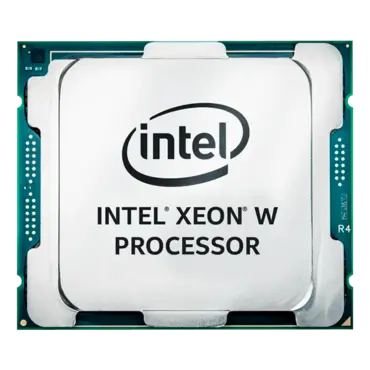

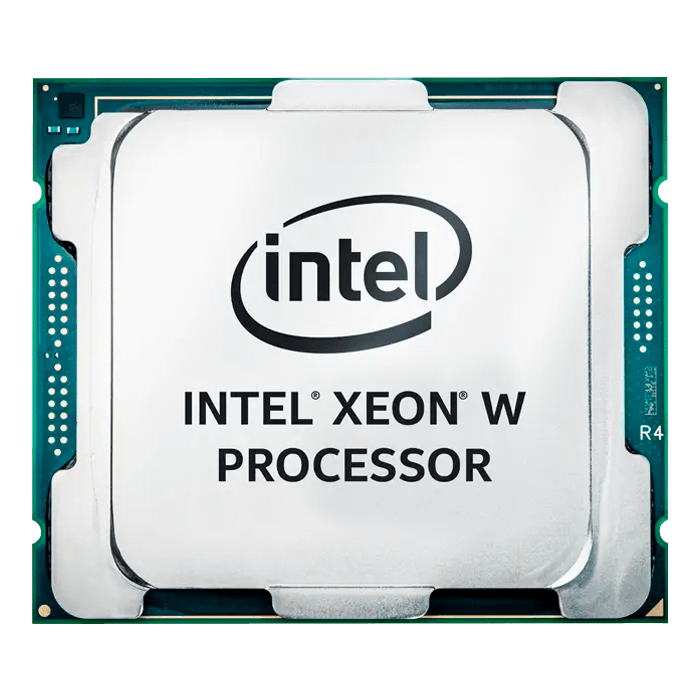

Xeon® W-1350 6-Core 3.3 - 5.0GHz Turbo, LGA 1200, 80W TDP, OEM Processor

Quantity:
  • SKU: 14507452
  • Manufacturer: INTEL
  • MPN: CM8070804497911
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$286.11
Quantity:
Essentials
Product Collection Intel® Xeon® W Processor
Code Name Products formerly Rocket Lake
Vertical Segment Workstation
Processor Number W-1350
Status Launched
Launch Date Q2'21
Lithography 14 nm
Included Items This product is available in tray and box. For boxed product, a thermal solution is included.
Use Conditions Workstation
CPU Specifications
# of Cores 6
# of Threads 12
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 5.00 GHz
Cache 12 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency 5.00 GHz
TDP 80 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
Max Memory Bandwidth 50 GB/s
ECC Memory Supported Yes
Processor Graphics
Processor Graphics Intel® UHD Graphics P750
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.30 GHz
Graphics Video Max Memory 64 GB
Execution Units 32
4K Support Yes, at 60Hz
Max Resolution (HDMI) 4096x2160@60Hz
Max Resolution (DP) 5120 x 3200 @60Hz
Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 @60Hz
DirectX* Support 12.
OpenGL* Support 04.
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x4C90
OpenCL* Support 3.0
Expansion Options
Scalability 1S Only
PCI Express Revision 4.0
PCI Express Configurations Up to 1x16+1x4, 2x8+1x4, 1x8+3x4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2019B
TJUNCTION 100°C
Package Size 37.5 mm x 37.5 mm
Advanced Technologies
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 No
Intel® Turbo Boost Technology 2.0
Intel vPro® Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Intel® Gaussian and Neural Accelerator 2.0 Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) No
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
