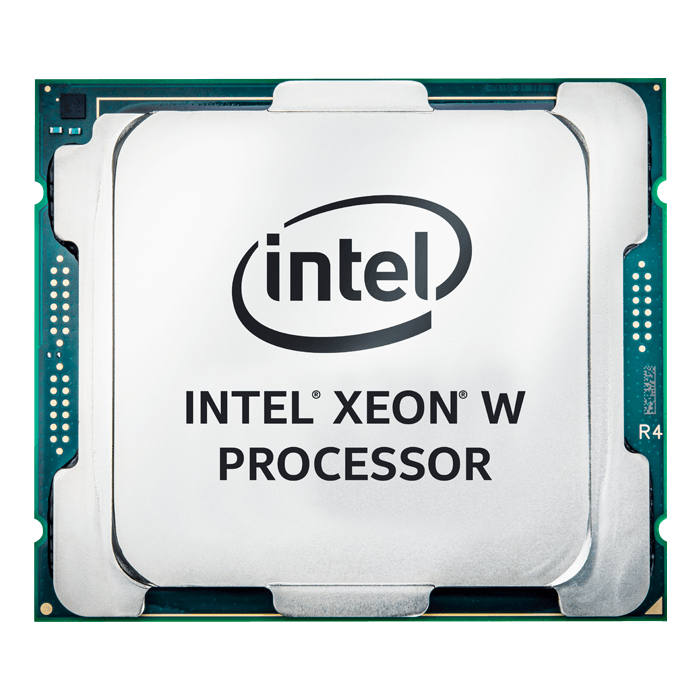

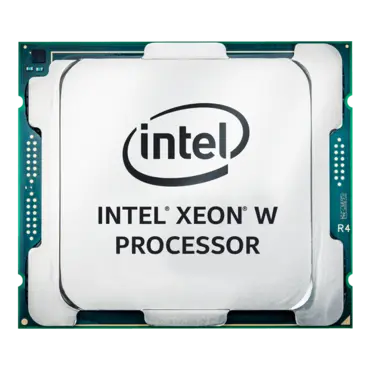

Xeon® W-3245 16-Core 3.2 - 4.4GHz Turbo, LGA 3647, 205W, OEM Processor

Quantity:
  • SKU: 12798673
  • Manufacturer: INTEL
  • MPN: CD8069504152900
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,293.37
Quantity:
Essentials
Product Collection Intel® Xeon® W Processor
Code Name Products formerly Cascade Lake
Vertical Segment Server
Processor Number W-3245
Status Launched
Launch Date Q2'19
Lithography 14 nm
Performance
# of Cores 16
# of Threads 32
Processor Base Frequency 3.20 GHz
Max Turbo Frequency 4.40 GHz
Cache 22 MB
# of UPI Links 0
Intel® Turbo Boost Max Technology 3.0 Frequency 4.60 GHz
TDP 205 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Max # of Memory Channels 6
ECC Memory Supported   Yes
Intel® Optane™ DC Persistent Memory Supported No
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
Max # of PCI Express Lanes 64
Package Specifications
TCASE 77°C
Package Size 76.0mm x 56.5mm
Advanced Technologies
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Speed Select technology - Performance Profile No
Intel® Speed Select technology - Base Frequency No
Intel® Resource Director Technology (Intel® RDT) No
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® vPro™ Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® TSX-NI Yes
Intel® 64 Yes
Instruction Set Extensions Intel® AVX-512
# of AVX-512 FMA Units 2
Enhanced Intel SpeedStep® Technology Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Intel® Run Sure Technology Yes
Mode-based Execute Control (MBE) Yes
