ZenWiFi AX Mini (XD4) Black, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 1201, 2xRJ45, Wireless Mesh System

  • SKU: 13762994
  • Manufacturer: ASUS
  • MPN: ZenWiFi AX Mini (XD4-B-3PK)
Starting At
ZenWiFi AX Mini (XD4) Black, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 1201, 2xRJ45, Wireless Mesh System

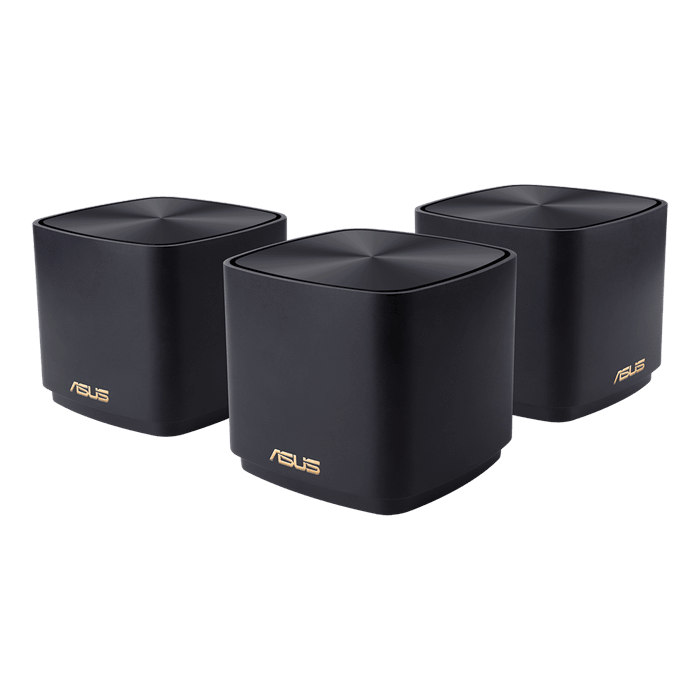

ASUS ZenWiFi AX Mini (XD4) Black. The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

Model Name CT8 (B-1-PK)
XD4 (W-1-PK)
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
Product Segment AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
AX technology Yes
Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps
802.11n TurboQAM : up to 400 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ac : up to 1733 Mbps
802.11ax (5GHz) : up to 1201 Mbps
Antenna Internal antenna x 6
Internal dual-band antenna x 2
Transmit/Receive MIMO technology
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4
5 GHz 2 x 2
Memory 128 MB Flash
256 MB RAM
256 MB Flash, 256 MB RAM
Boosts speed MIMO technology
Operating Frequency 2.4GHz, 5 GHz-1, 5 GHz-2
2.4 G Hz / 5 GHz
Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1
RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Button WPS Button, Reset Button, Power Button
WPS Button, Reset Button
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
"AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current"
Package content ZenWiFi AC
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card
Router (XD4R)
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Router (XD4R)
Node (XD4N)
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Product Weight (g) 730
295 g
Remark Content may vary in different regions and packages.
AiMesh AiMesh:Yes
Primary AiMesh router:Yes
AiMesh node:Yes
Router APP ASUS Router APP:Yes
Game Game Boost/acceleration:No
Alexa Support Alexa skill:Yes
AiProtection AiProtection:AiProtection Pro
AiProtection:AiProtection Classic
Router Security Assessment:Yes
Router Security Assessment:No
Malicious site blocking:Yes
Two-Way IPS:Yes
Two-Way IPS:No
Infected Device Prevention and Blocking:Yes
Parental Control Parental Control:Yes
Parental Control Customized Internet schedule:Yes
Maximum Parental Control profile:16
Maximum Parental Control content filter rule:16
Traffic Control Adaptive QoS:Yes
Adaptive QoS:No
Bandwidth Monitor:Yes
Bandwidth limiter:Yes
Maximum Bandwidth limiter rule:32
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:Yes
Traffic analysis period:Daily, Weekly, Monthly
Website history:Yes
Wireless IPv6:Yes
Wi-Fi Encryption:WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Wi-Fi Encryption:WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support
Guest Network:Yes
Maximum Guest Network rule:9
Guest Network Connection time limit:Yes
Guest Network Encryption:9
Wi-Fi MAC address filter:No
Wi-Fi MAC address filter:Yes
Wireless scheduler:No
Maximum MAC filters:64
Airtime fairness:No
Wireless scheduler:Yes
RADIUS Server:No
Airtime fairness:Yes
Universal beamforming:No
RADIUS Server:Yes
Explicit beamforming:No
Universal beamforming:Yes
Explicit beamforming:Yes
WAN Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN:No
WAN Aggregation:No
3G/4G LTE dongle:Yes
3G/4G LTE dongle:No
Android tethering:Yes
Port forwarding:Yes
Port triggering:Yes
NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough
NAT Passthrough:Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let's Encrypt:Yes
Let's Encrypt:No
LAN DHCP Server:Yes
IGMP snooping:Yes
LAN Link Aggregation:No
Manually assign IP address:Yes
Maximum manually assign IP address rule:64
VPN VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:Yes
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:Yes
VPN Fusion:No
USB application File System:FS_Tuxe
HDD hibernation:No
Safely Remove disk:No
Download master:Yes
Download master:No
Media Server:Yes
Time Machine:Yes
Media Server:No
Samba Server:Yes
Time Machine:No
FTP Server:Yes
Samba Server:No
Shared Folder privileges:Yes
FTP Server:No
Shared Folder privileges:No
Administration Operating mode:Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system:ASUSWRT
Free OS upgrade:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
