ZenWiFi XD6 White (W-2-PK), IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 4804 Mbps, 3xRJ45, WiFi Mesh System
Quantity:
- SKU: 14580714
- Manufacturer: ASUS
- MPN: XD6 (W-2-PK)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$344.82
As low as $28.74/ Month*

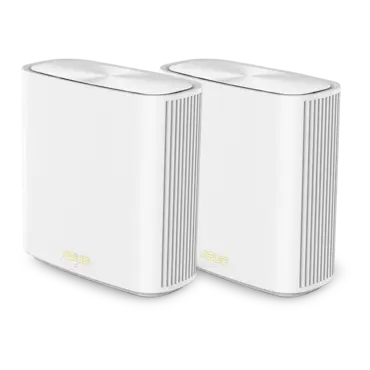

ZenWiFi XD6 White (W-2-PK), IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 4804 Mbps, 3xRJ45, WiFi Mesh System
ASUS ZenWiFi XD6 (W-2-PK). The ZenWiFi XD6 system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
| Model Name |
XD6 (W-1-PK) XD6 (W-2-PK) |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX5400 ultimate AX performance : 574+4804 Mbps |
| AX technology | Yes |
| Data Rate |
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4808 Mbps |
| Antenna | internal antenna x 6 |
| Transmit/Receive |
2.4 GHz 2 x 2 5 GHz 4 x 4 |
| Processor | 1.5 GHz tri-core processor |
| Memory |
256 MB Flash 512 MB RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access) 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 G Hz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 |
| Button | WPS Button, Reset Button |
| LED Indicator | Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2 A current |
| Package content |
ZenWiFi XD6 RJ-45 cable Power adapter Warranty card Quick start guide |
| Product Weight (g) | 435 g |
| Remark | Content may vary in different regions and packages. |
| AiMesh |
AiMesh : Yes Primary AiMesh router : Yes AiMesh node : Yes |
| Router APP | ASUS Router APP : Yes |
| Game |
Game Boost/acceleration : No WTFast : No |
| Alexa | Support Alexa skill : Yes |
| IFTTT | Support IFTTT : No |
| AiProtection |
AiProtection : AiProtection Pro Router Security Assessment : Yes Malicious site blocking : Yes Two-Way IPS : Yes Infected Device Prevention and Blocking : Yes |
| Parental Control |
Parental Control : Yes Parental Control Customized Internet schedule : Yes |
| Traffic Control |
Adaptive QoS : Yes Bandwidth Monitor : Yes Bandwidth limiter : Yes Maximum Bandwidth limiter rule : 32 Traditional QoS : Yes Maximum Traditional QoS rule : 32 Traffic Monitor : Yes Real-time traffic monitor : Yes Wired Traffic Monitor : Yes Wireless Traffic Monitor : Yes Traffic Analyzer : Yes Website history : Yes |
| Wireless |
IPv6 : Yes MU-MIMO : Yes UTF-8 SSID : Yes Guest Network : Yes Maximum Guest Network rule : 9 Guest Network Connection time limit : Yes Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS : Yes Wi-Fi MAC address filter : Yes Maximum MAC filters : 64 Wireless scheduler : Yes Airtime fairness : Yes RADIUS Server : No Universal beamforming : Yes Explicit beamforming : Yes |
| WAN |
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN : Yes WAN Aggregation : No 3G/4G LTE dongle : No Android tethering : No Port forwarding : Yes Maximum port forwarding rule : 64 Port triggering : Yes DMZ : Yes DDNS : Yes Let's Encrypt : Yes |
| LAN |
DHCP Server : Yes IGMP snooping : Yes IPTV : Yes LAN Link Aggregation : Yes Manually assign IP address : Yes Maximum manually assign IP address rule : 64 |
| VPN |
VPN Client L2PT : Yes VPN Client OVPN : Yes VPN Client PPTP : Yes VPN Server IPSec : Yes VPN Server OVPN : Yes VPN Server PPTP : Yes |
| USB application |
HDD hibernation : No Safely Remove disk : No AiCloud : No Download master : No AiDisk : No Media Server : No Time Machine : No Samba Server : No FTP Server : No Shared Folder privileges : No |
| Administration |
Operating mode : Wireless router mode Range extender mode Access point mode Media bridge mode Operating system : ASUSWRT Free OS upgrade : Yes Firewall : Yes Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) : Yes SSH : Yes Configuration backup and restore : Yes Diagnosis tools : Yes Feedback system : Yes System log : Yes |
| Product Dimensions with antennas (L*W*H) mm | 126.4 x 59.05 x 129.7 mm |
| Gift Box Dimension (L*W*H) mm | 315 x 174 x 166.5 mm |
| Gift Box Weight (kg) | 1.8 kg |
| Carton Dimension (L*W*H) mm | 530 x 330 x 196 mm |
| Carton Gross Weight (kg) |
6.7 kg 6.5 kg |
