AVADirect’s Guide to a Fresh Windows 10 Install

software, Tech Support

Windows 10 Fresh Install Guide:

1 Backup any and all data you don’t wish to lose on the Operating System (“C”) drive, to a different drive.

2 (Optional) As an extra precaution you can unplug all of the secondary drives (with the system off) to prevent accidental data loss on your secondary drives.

3.1 Locate or create “Installation Media”

Note: If you already have an Installation Media (DVD/USB) prepared, go to step 4.

To begin creating your Windows Installation Media, click the link below.

3.2 Click “Download tool now” and wait for the download to complete

Download Microsoft Windows 10

3.3 Navigate to your Downloads folder and open “MediaCreationTool.exe”

Media Creation tool

3.4 Accept the Microsoft Software License Terms

Microsoft Software License Terms

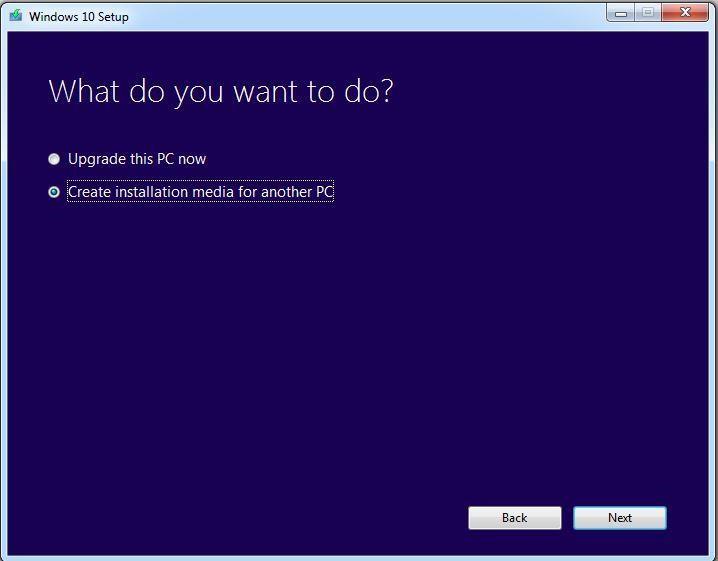

3.5 Select “Create installation media for another PC”

Create installation media

3.6 Select USB flash drive to create a bootable flash drive or ISO file to create a bootable DVD

create a bootable flash drive or DVD

3.7 Insert the USB drive (8GB minimum) and select the desired Flash Drive (be advised, this permanently deletes all other data of the flash drive)

select a usb flash drive

3.8 Select the language, edition, and architecture desired (if you are unsure which is right for you, contact Technical Support at (216) 503-6374)

Select the language, edition, and architecture

3.9 Wait for the tool to complete the Windows 10 Download and Media Creation and then safely eject the flash drive

4. Insert Installation Media (Disk or USB) into computer.

downloading windows 10

5 Restart computer.

If computer automatically boots into Installation Media go to Step 7.

6 If computer does not automatically boot into Installation Media, shut the computer down, turn it back on and enter BIOS by tapping the F2 and Delete keys alternately on the keyboard until the BIOS screen appears. Specific pictures of BIOS can be found in the user’s manual for your motherboard, below is an example.

asus uefi bios utility

6.1 Once in BIOS enter advanced mode (usually F7)

uefi bios advanced mode

6.2 Navigate to the “Boot” tab and select the USB or Disk Drive (USB for installation from a flash drive and Disk Drive for DVD installs) under “Boot Override”. This will force the computer to boot into the Installation Media. This option is sometimes found under the “Save and exit” tab as well.

Note: Sometimes the “Boot Override” option is located in the “Exit” tab.

bios boot options

The BIOS will disappear almost immediately after selecting your Installation Media. If a message appears stating “Press Any Key To Boot….”, make sure to press any key on the keyboard within 5 seconds. Once the Windows Installation Media loads, you will see the screen below.

7.1 Select your Language, Time Format, and Input method before clicking “Next”

windows 10 instalation settings

7.2 Click “Install Now”

start installation

7.3 Click “I don’t have a product key”

The key is typically registered to the motherboard, thus eliminating the need to re-enter it, however the key can be entered into Windows post install as well.

product key

7.4 Select the edition of Windows 10 that matches your product key. The most likely options are Windows 10 Pro and Windows 10 Home.

Select the edition of Windows 10

7.5 Select “Custom: Install Windows Only”

select installation type

The initial screen will have a listing containing all of the partitions of drives installed in the system.

The more drives there are, the more partitions. Before proceeding, we will need to determine which drive Windows is to be installed. In order to determine which physical drive corresponds to the listing seen here, roughly add up each drives partitions to determine the approximate size. Please note that advertised drive capacities and actual capacities differ. Most 512/500GB drives will have approximately 460GB-480GB of usable space.

For example, take a look at the two drives below. One is a 128GB Corsair SSD and the other is a 128GB Samsung SSD. In most systems, the difference in drive capacity will be much greater than in this example. If one adds all of the partitions of each drive together, they end up at roughly the 127GB mark. Oftentimes systems contain a small, fast SSD and one or more larger HDDs.

If you are not sure which drive you would like to use, please contact our Support department, who will be able to guide you.

7.6 Select the drive that Windows will be installed onto

Select the drive that Windows will be installed onto

7.7Once you have determined which drive Windows will be installed on, begin deleting the existing partitions. Usually there are four partitions on the drive in question. Take care to only delete partitions on the correct drive (such as Drive 0in the below example) to ensure that no unnecessary data loss occurs. To delete partitions, highlight/click on the partition in question and click Delete at the bottom of the window.

deleting the existing partitions

7.8 Continue until the only remaining listing for the drive is “Drive X Unallocated Space”. Then click “Next”.

Drive X Unallocated Space
installing windows

Windows will now begin to install. This process often takes 15-60 minutes and does not require monitoring. The system may restart multiple times during this process, do not turn the system off. If the system hangs for more than an hour after this point, call Technical Support at 216.503.6374, before attempting any troubleshooting.

8 Once Windows has loaded, the screen below will appear. Select your region (most likely United States) and click the “Yes” button.

Region selecting

8.1 Select your keyboard layout (most likely “US”) and click the “Yes” button.

keyboard layout selecting

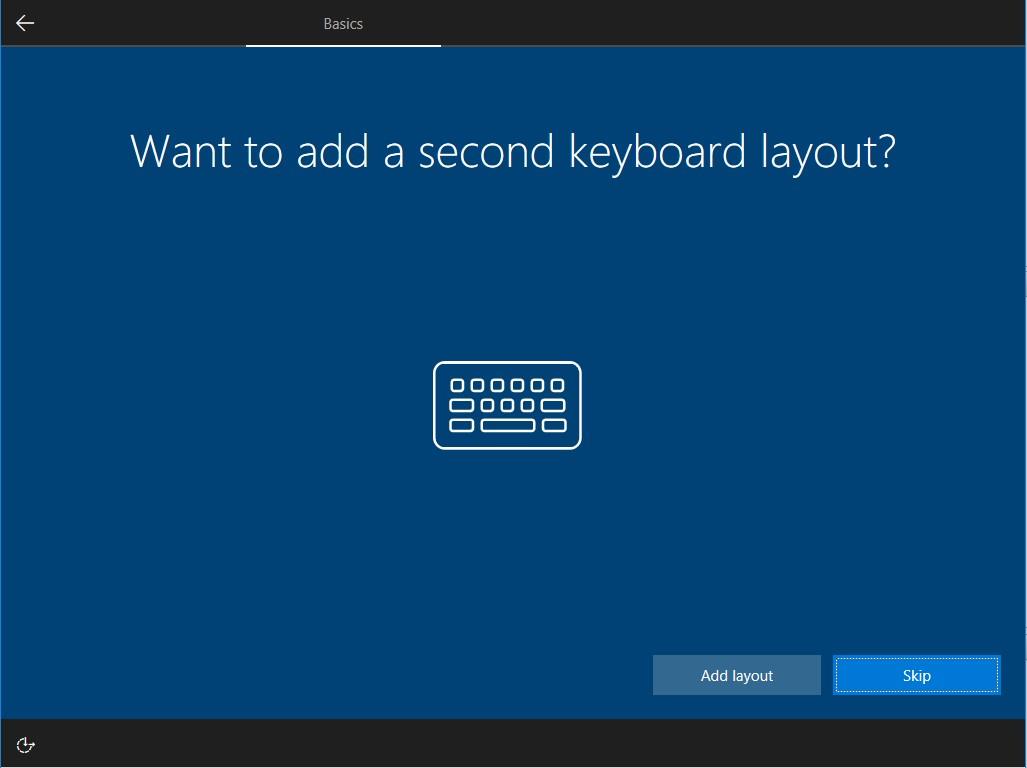

8.2 Click the “Skip” button.

second keyboard layout selecting

8.3 Connect to your network (internet) if available. Ethernet refers to a physical connection while wireless connections will appear as set by your router/ISP.

Connect to your network

8.4 Enter your username and click the “Next” button.

username entering

8.5 Enter your password and click the “Next” button.

password entering

Note: If you are connected to a network, an additional step in the username/password section will appear. If you have a Microsoft account, you may use that email/password combination in lieu of an “offline” or local account. If you do not have a Microsoft account, or would not like to use it, select “I don’t have a Microsoft account” and “Use Offline account” towards the bottom of the page when prompted.

8.6 Confirm your password and click the “Next” button.

password confirmation

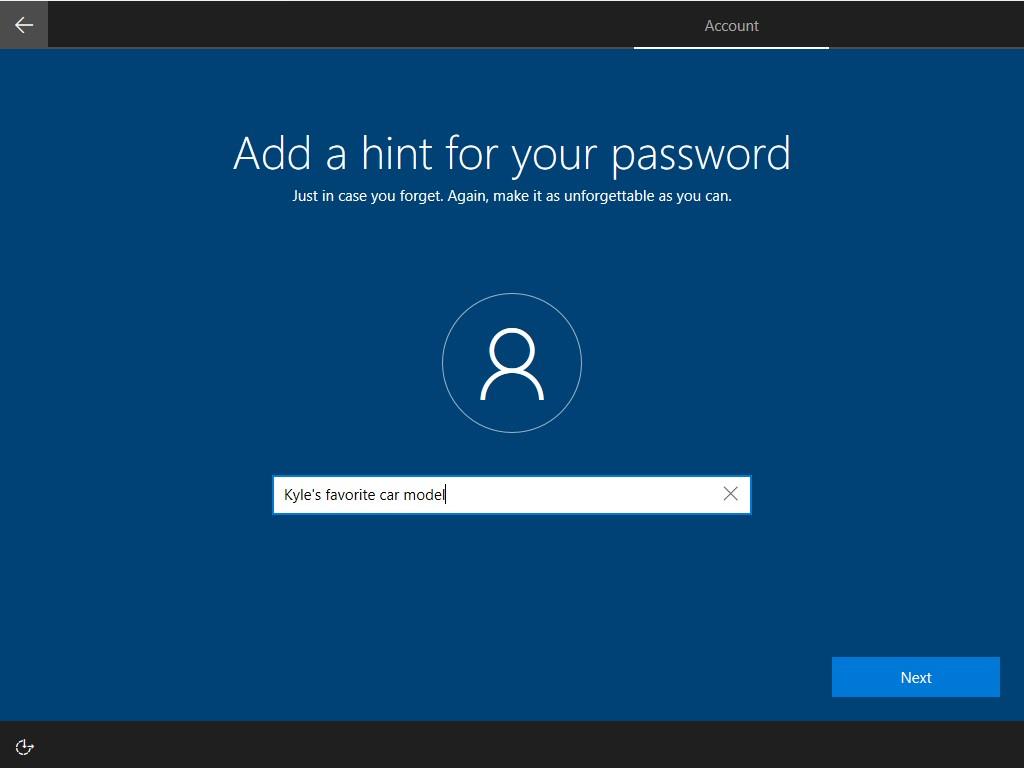

8.7 Create a hint for your password and click the “Next” button.

Create a hint for your password

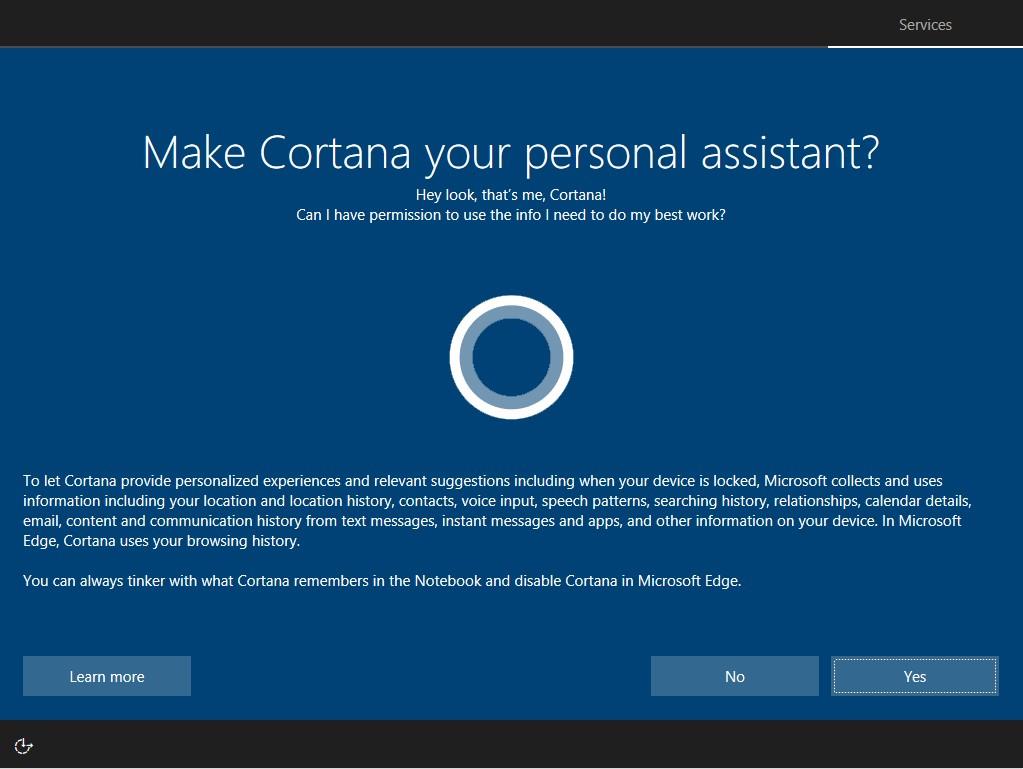

8.8 Decide if you would like to use Cortana as a personal assistant. For the least invasive privacy settings, click no.

Decide if you would like to use Cortana as a personal assistant

8.9 Select your privacy settings and click the “Accept” button. For the least invasive options, turn all five of these selections to “Off”.

privacy settings

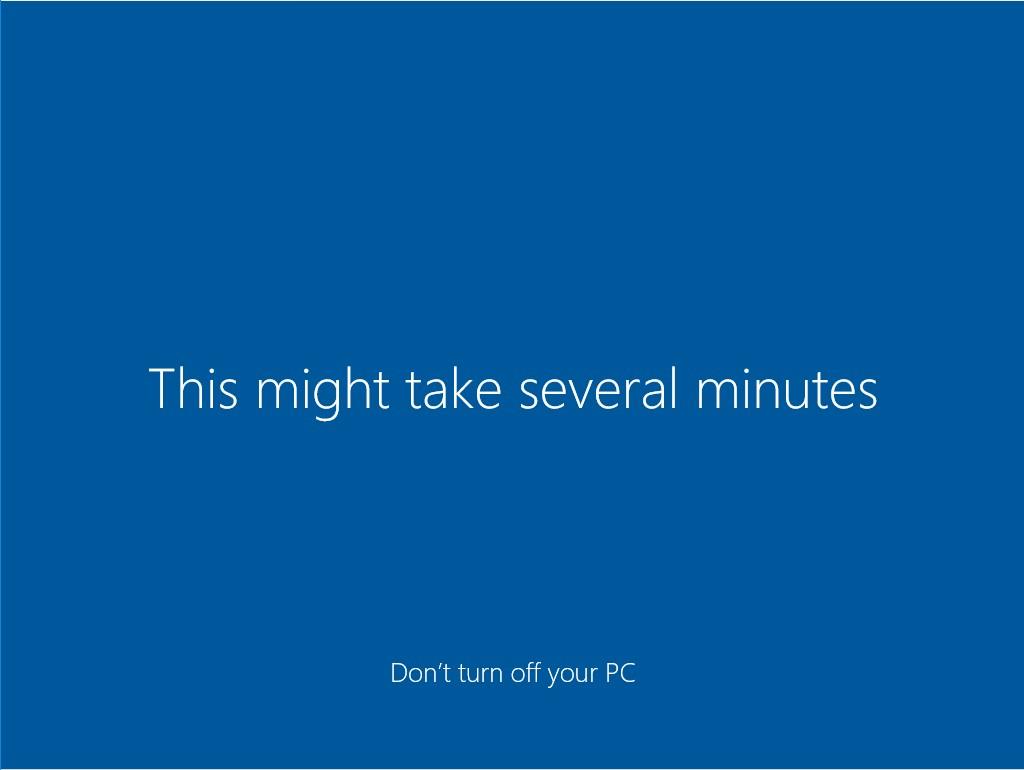

After selecting your privacy settings Windows will take back over. The two screens below will appear in sequence. Wait for the desktop/login page to appear before proceeding. The system may automatically restart multiple times during this step. Do not turn the system off manually. If the system hangs on one of these pages for longer than 60 minutes, contact Technical Support.

applying settings

The desktop will appear. The installation of Windows is complete; however, we will want to run updates, install drivers, and activate Windows before regular use begins.

The desktop

9 Click the Windows icon (start button) at the bottom left of the screen to open the Start Menu and click the gear icon (Settings) near the bottom left of the menu. The Settings page will open.

Start Menu

9.1 Click “Update & Security” at the bottom of the page.

Windows setting

9.2 The page below will open. Click the “Check for updates” button.

windows update

9.3 The system will then begin checking for and installing updates. During the update process, the screen may go black for a few moments and the resolution may change. This is normal, allow the updates to complete.

checking for updates

9.4 Oftentimes, a restart will be required to complete some updates. Click the “Restart now” button if this page appears.

updates are available

9.5 This page may appear during restarts, do not interrupt this process.

windows update process

9.6 After each restart, navigate back to the Update page from Settings and click the “Check for updates” button. Once the page below appears, the updates are complete and you can close this window.

windows updating

9.7 Finally, we will activate Windows. From the Update page, select the “Activation” link on the left-hand side. The page below will appear. Click on the “Change product key” link.

device is up to date

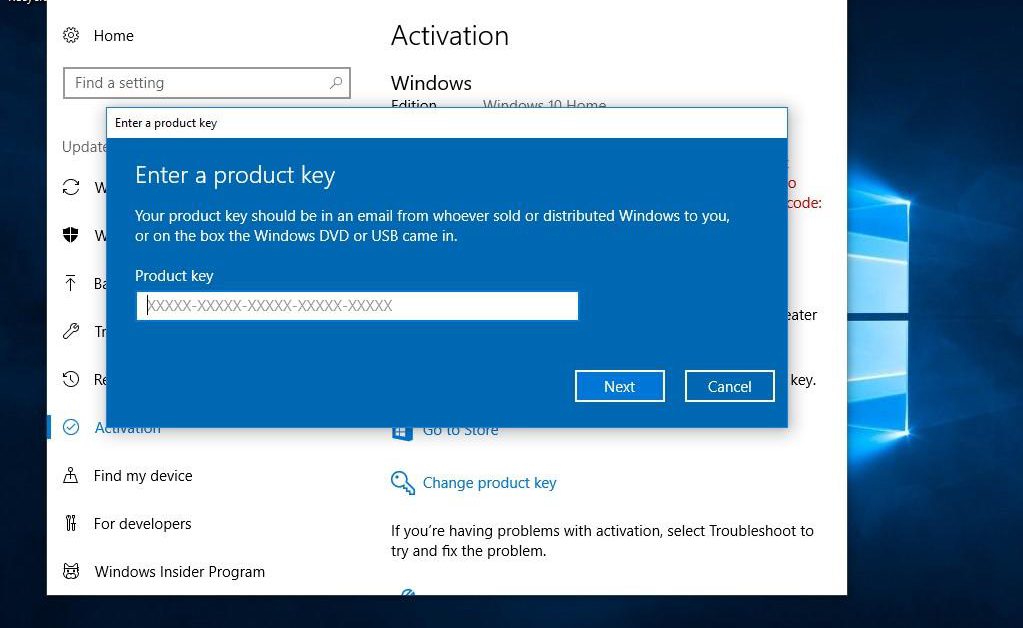

9.8 This window will pop up. Enter your 25-character product key and click the “Next” button. If activation fails, verify that you are connected to the internet and that you have entered the key correctly. Re-enter the key a minimum of three times and if you are still unable to activate, contact Technical Support.

enter a product key

Notes: If you purchased Windows with your machine, the Product Key is usually a multicolored sticker on the side or back of the computer or contained in your accessory box.

If you have any suggestions to improve this guide, please let us know, your feedback is greatly appreciated.

If at any point you have questions, concerns, or require assistance while completing a Windows install, please call our Technical Support Department at (216) 503-6374.
