Overview:

The UNIMUX™ High Density USB DVI KVM switch allows you to control up to 16 single link DVI USB computers with one DVI-D monitor, USB keyboard and USB mouse.

Features:

• Incorporates NTI's patented true autoboot USB switching; all attached USB PCs, SUNs and MACs can be booted simultaneously.
• Supports video resolutions up to 1920x1200.
• Supports digital DVI for crisp and clear video quality on flat panel display.
• Control the switch through the front panel interface, keyboard commands or RS232.
• High quality, rugged steel construction with durable powder coat finish.
• Fully compliant with USB 1.1 standards.
• USB SUN start-up keys are supported.
• Supports MAC soft (keyboard) power-on.
• SUN extra keys are emulated on keyboards with Windows layouts.
• 1RU case is standard. Includes rackmount kit.
• Cabling runs are simplified with NTI's high density KVM switch cables.

Specifications:

Hosts

• One female HDMI-A connectors.
• Supports USB-enabled PC, SUN, and MAC computers with DVI video. Multiplatform support: Solaris, Linux, Free BSD and MAC OS 9/10, Windows 2000/XP/Vista/Server 2000/2003/2008.
• Refer to SUN documentation to determine compatibility with the console port of a SUN computer.

Monitor

• Supports crisp and clear video resolution up to 1920x1200.
• Single link DVI-D signal.
• Female DVI-I dual link connector.
• DDC2B compatible.

Devices

• Two female USB Type A connectors.
• Compatible with most USB keyboards and mice, including USB IntelliMouse®.
• Keyboard and mouse are hot-pluggable.
• Supports SUN and MAC extra keys.

Power

• 110 or 220 VAC at 50 or 60 Hz via IEC connector.
• Power consumption: 10W

Dimensions

• WxDxH(in)
  • 15.2x6x1.75 (without supplied rackmount kit)
  • 19x6x1.75 (with supplied rackmount kit)

Cables

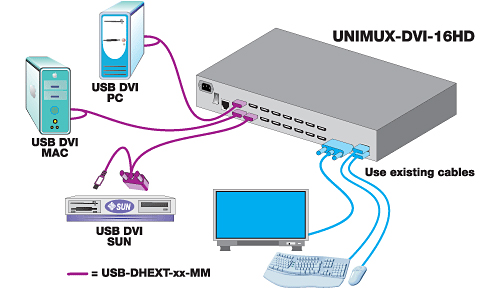

• Interface cables between your computers and the switch are required for proper operation. Use USB-DHEXT-xx-MM to connect the computers to the switch.
• Cables not included.

Environmental

• Operating temperature: 32°F to 100°F (0°C to 38°C).
• Storage temperature: -20°F to 140°F (-30°C to 60°C).
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approval

• CE, RoHS

Warranty

• Two years

Control Methods:

• LEDs indicate currently selected port and mode of operation.
• Hold in any button for more than five seconds to go into Scan, Broadcast or Command Mode.
  • In Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch.
  • Scan Mode automatically and sequentially displays the video from each powered on computer for 2-255 seconds.
  • Broadcast Mode allows the user's keystrokes to be sent to both powered on computers. (Broadcast Mode is not available for MACs.)
  • Command Mode allows the user to give instructions to the switch through his/her keyboard. Keystrokes are not passed to the computer.

• Scan, Broadcast or Command Modes are available from the keyboard using hot keys.
• Use the keyboard to command the switch box to select ports or configure the Scan delay.
• Type +<`> (or +<`>) to go into Command Mode.
• Press to leave Command Mode and return to Normal or Scan Mode.

• Female RJ45 connector.
• Female RJ45 connector.
• Baud rate 2400, 9600, 19200, or 38400.
• Use DIP switches to set the baud rate and address up to 16 units, all of which can be daisy chained and controlled by one serial port.
• 5-foot CAT5e patch cable, RJ45F-DB9F and RJ45F-DB25F adapters included.
• Download RS232 protocol manual

• RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
• CS - causes one INx/OUTx connection to occur.
• CA - causes all inputs to connect to specified output.
• RO - reads what input is connected to specified output.
• RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.
