Features:
- Universal CPU Cooer compatible with all leading desktop processor platforms, including Intel Core i3, Core i5 LGA 1156, Core i7 LGA 1366, Intel LGA 775 and AMD socket AM2, AM2+ and AM3
- Intelligent H.C.C. (Heatpipe Contact CPU) Technology: Heatpipe contacts CPU processor directly and optimizes heat transfer rate
- Smart heatpipes oriented against gravity
- Silent and powerful PWM Function 120mm fan delivers quiet cooling at a whisper-quiet 20 dBA during normal operation
- Center mounted 120mm fan which blows cool air through the fins of the modularized heat sink enabling ultimate dual-directional cooling of the heat created by the CPU
- Innovative Energy-saving fan saves up to 30% power
- Superior heat dissipation CPU power 130W to over-clocking 150W
- Push-pin design for easy-standard installation
- State-of-art aluminum high-density wave-fin design maintains excellent air-flow management
- Heat sink engineered to maximize dissipation surface
- Excellent 25% Enhanced Cooling than Intel® Stock CPU Fan
Specifications:
| CPU Socket |
Intel® Socket LGA 1156, LGA 1366, LGA 775
AMD® Socket AM3, AM2+, AM2 |
| CPU Support |
Intel® Core i3, Core i5, Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium D, Pentium 4, Celeron D, Celeron
AMD® Phenom II X4, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon 64, Sempron |
| Solution |
Desktop |
| Overall Dimension |
124 x 148 x120mm |
| Weight |
795 g |
| Material |
Aluminum Fin with 4 x Ø 6mm Heatpipes in HTC structure |
| Fan Dimension |
120 x 120 x 25mm |
| Speed |
At Duty Cycle 0~20%: 1000 RPM
At Duty Cycle 50%: 1300 RPM
At Duty Cycle 100%: 1600 RPM |
| Bearing |
Sleeve Bearing |
| Rated Voltage |
12V |
| Power |
At Duty Cycle 0~20%: 0.6 W
At Duty Cycle 50%: 1.2 W
At Duty Cycle 100%: 5.4 W |
| Air Flow |
At Duty Cycle 0~20%: 42.5 CFM
At Duty Cycle 50%: 55.2 CFM
At Duty Cycle 100%: 68.0 CFM |
| Noise Level |
At Duty Cycle 0~20%: 19.1 dBA
At Duty Cycle 50%: 23.8 dBA
At Duty Cycle 100%: 26.0 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 0.539 inch-H2O
At Duty Cycle 50%: 0.91 inch- H2O
At Duty Cycle 100%: 1.379 inch-H2O |
| Lead Wire Pin Out |
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4- Blue (PWM) |
| Note |
Package Contents:

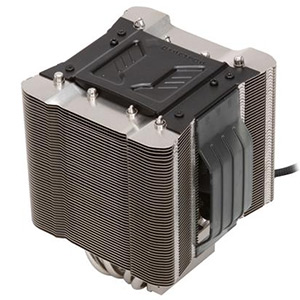

G950 CPU Cooler x 1
Mounting Kits for socket 1156, socket 1366, socket 775, socket AM2/AM2+/AM3
GE-Toshiba TIG830SP thermal compound
User Manual x 1 |
|
About Dynatron Corp.
Dynatron Corporation was founded in 1991 in Taiwan and over the past 18 years has become one of the leading PC thermal solution providers. Dynatron excels in manufacturing both AC and DC fans from 25mm to 200mm. Dynatron also provides for OEM customers any custom-design thermal solution products. These include active coolers, passive heat sinks, heat pipes, blowers, cross flow blowers, water coolers and many more. Dynatron branded thermal solutions are widely recognized and integrated into desktop PCs, servers, workstations, notebooks, gaming machines, and storage systems. In the year 2001, Dynatron won its reputation as the first company to integrate the state of the art MicroFin Technology into a PC heat sink. Today, MicroFin Technology is considered the most advanced and efficient heat sink manufacturing method for a thermal solution and is used in most system applications.
AVADirect Custom Computers is Authorized Dynatron Reseller and System Ingerator
Partnership with leading hardware suppliers provides AVADirect great benefits of lower pricing, enhanced technical support and prioritized new product delivery to make sure that our customers always get the latest technology and the best value.
Being partnered with many quality hardware suppliers in the industry, we at AVADirect are proud to inform that we were recognized as an authorized Dynatron reseller and system integrator.
We offer a complete line of Dynatron products on our website available either as components in custom computer builds or as separate off-the-shelf parts, the product lines we offer consist of
Dynatron CPU Coolers,
Dynatron 1U Server CPU Coolers,
Dynatron 2U Server CPU Coolers,
Dynatron Thermal Compounds,
and other products. You can also browse all Dynatron products.
|
