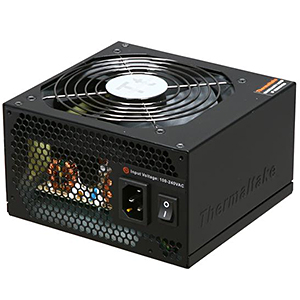

TR2 500W Bronze

Overview:

TR2 series is designed with mainstream PC in mind. With Thermaltake’s state-of-the-art circuitry design capability and advanced packaging technology, it is capable of providing the same level of high efficiency and power protection that you have come to expect from Thermaltake’s full range of power supply. TR2 series power supply all carries an industry-leading 5 Year Limited Warranty for the ultimate piece of mind.

Features:

• ATX 12V V2.3 enables most reliable and robust power delivery
• Stable 500W continuous output (peak power 600W) @ 40 °C operating environment
• Robust and dedicated single +12V output provides superior performance under all types of system loading
• 80 PLUS® Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions
• Double-forward switching circuitry offers low power loss and high reliability
• Universal AC input 100V~240V automatically scans and detects the correct voltage
• High quality 105 °С Japanese main capacitor provide uncompromised performance and reliability
• 99% Active Power Factor Correction provides clean and reliable power to your system
• Ultra-silent operation with intelligent 12cm cooling fan speed control
• Intel® & AMD CPU compliant
• Nvidia® & ATI/AMD graphic card compatible
• Dimension: 150mm(W)x86mm(H)x140mm(L)
• High reliability: MTBF>100,000 hours
• Built in industrial-grade protections: Over Current, Over Voltage, Over Power, Under Voltage and Short-Circuit protections
• Safety / EMI : UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified

Technology Features:

• Latest ATX 12V V2.3 & EPS 12V 2.91 design enables robust and reliable power delivery
• 120 mm Fan –High thermal Performance
• Next generation graphic cards with 6+2P(8P) PCI Express connector
• 8-Pin EPS connector enables support for latest Intel and AMD processors today
• High Quality 105°C Japanese Electrolytic Capacitor
  105°C Japanese main capacitor provides uncompromised performance and reliability
• Industrial Grade Protection
  Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections

ECO Design:

• 80 Plus Bronze Certified
  New TR2 Series saves energy through its high energy efficiency of up to 88% and is 80 PLUS® Bronze certified
• ErP Ready
  New TR2 Series fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010
• Supports Energy Star 5.0* energy standard:
  New TR2 Series is suitable for use in Energy Star-compatible computers
• Supports Intel Deep Power Down C6 Status:
  New TR2 Series helps your PC system operate more power efficiently
• Corresponds to the EU directives on WEEE and RoHS:
  Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements

Total Output Connector:

• Main Power Connector x 1
• ATX 12V (4x4pin) x 1
• PCI-E 6Pin x 1
• PCI-E 8Pin (6+2pin) x 1
• SATA (5 Pin) x 5
• Peripheral (4 Pin) x 5
• FDD (4 Pin) x 1

Specifications:
