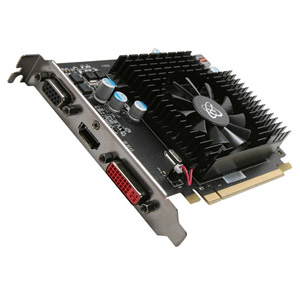

ATI Radeon™ HD 6570
Overview:
This high-powered card includes the latest video features as well as second-generation support for DirectX 11 which provides clear performance with ultra-realistic detail while viewing movies and playing games. AMD’s EyeSpeed technology offers full functionality with vivid HD viewing at impressive speeds.
Features:
- 650 MHz GPU Core Clock
- 1600 Mhz Memory Speed
- 1 GB GDDR3 High Speed Memory
- AMD HD3D Technology
- PCI-E 2.1 Bus Support
- Microsoft DirectX® 11 Support
- 3rd Generation TeraScale Engine
- Accelerated Video Transcoding, Encoding, and Upscaling
- AMD PowerPlay™ Technology
- Enhanced Unified Video Decoder (UVD 3)
- Enhanced Internet Browser Application Support
- Enhanced Microsoft Office 2010 Support
- HDMI 1.4a with support for stereoscopic 3D, Deep Color and xvyCC extended gamut
Specifications:
| Bus Type: |
PCI-E 2.1 |
| GPU Clock: |
650 Mhz |
| Memory Bus: |
128 |
| Memory Type: |
DDR3 |
| Memory Size: |
1 GB |
| Memory Speed: |
1600 Mhz |
| HDCP Ready: |
Yes |
| Dual-Link DVI Supported: |
Yes |
| Max Resolution: |
2560 x 1600 |
| Minimum Power Supply Requirement: |
450 Watt |
| Stream Processors: |
480 Stream Processing Units |
| Outputs: |
VGA, DVI, HDMI |
| Card Dimensions: |
N/A |
| Feature: |
Directx 11 support, DirectCompute 5.0, Open CL, Eyefinity Technology, Shader Model 5.0, OpenGL 3.2, Windows 7, DisplayPort, Dual Slot Low Profile Bracked included |
Notes:
- Latest ATI Catalyst Driver (ver. 9.10 or above) required to support ATI Eyefinity technology; to enable a third display you require one panel with a DisplayPort connector
- Requires application support for ATI Stream technology
- HD capable monitor required
- ATI Eye-nity technology works with games that support non-standard aspect ratios which is required for panning across three displays
- Digital rights management restrictions may apply
- Driver support scheduled for release in 2010
- ATI PowerPlay™, ATI Avivo™ and ATI Stream are technology platforms that include a broad set of capabilities powered by certain ATI Radeon™ HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products
- See specific logos on packaging for supported features and outputs. Not all XFX Radeon HD 5450 models will support all features.
|
About XFX Force
XFX is a subsidiary of the Hong Kong-based Pine Technology Holdings Limited Group that specializes in the manufacture of graphics cards based on NVIDIA Graphics processing unit chips. Their products are geared towards gaming and high end computing. XFX is among the leading and well known video card manufacturers in the United States for gaming.
