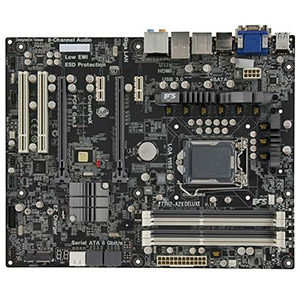

Z77H2-A2X Deluxe (V1.0)
ECS High performance Black Series Extreme Motherboard for Intel New Generation Product with attractive SPEC and impressive performance.
5μ Gold Contact
Z77H2-A2X Deluxe is the latest Black Series Extreme product, which fully supports the Socket 1155 Intel 3rd & 2nd Generation K-sku desktop processors to deliver amazing overclocking capabilities. Z77H2-A2X Deluxe features Nonstop concept with Super Marathon 3X Stability, 15u Gold Contact, Apachi Long-Life CAP, Thor Ultra Protection and Sahara Severe Test for long term stability. Designed with the Intel Z77 chip by supporting dual channel DDR3 memory module, and able to overclocking via ECS M.I.B.X BIOS to gain great performance and other. For better gaming performance, Z77H2-A2X also support 2x PCIex16 that operates in PCIe x 16 Gen.3 bandwidth. Moreover, Z77H2-A2X bundled with Lucid Virtu MVP providing smart switch on board graphic or VGA card for power saving. ECS Z77H2-A2X is the best choice for your computing experience.
ECS 15μ gold technique contains 15μ gold contact on CPU socket and Memory slot pins. It offers 3 times extra anti-oxidation, temperature resistant and scrape protection to ensure motherboards longest lifespan, better reliability and excellent contact.
SPDIF IN OUT
It allows to transfer digital audio without converting to analog format and keeps the best signal quality
ECS O.C profile offers O.C values for CPU and DRAM to reach higher performances in a quick, simple and safe way. It keeps users’ preferable BIOS settings to regain your last successful O.C configuration to create the most convenient O.C experience.
Support latest generation USB 3.0, SATA 3.0 (6Gbps) and eSATA 3.0 (6Gbps) high-speed interface technologies that meet the high-capacity and high-speed needs of multi-media publishing and PC gaming.
Easy button design, especially, is a great plus that brings users remarkable convenience while overclocking or tweaking system performance.
Solid capacitors lifespan is 6 times more than electrolytic capacitors at 65◦C temperature and it offers a stability and durable system.
Support 22nm processors
Intel new 22nm, 3-D transistor architecture enables support for new-generation processors which delivers unprecedented performance improvement, faster computing and graphics and power reduction.
Lucid Virtu MVP
Dynamic switching between built-in processor graphics and high-end, 3D performance discrete graphics cards. Ideal for gamers who require high-resolution gaming and want to enjoy amazing built-in media features of 2nd Generation Intel® Core™ processors
ATI CrossFire X
The technology not only combines multi-GPU and motherboard power that soars into a new dimension of graphics capability, but also delivers the highest image quality and screen resolutions, even with the most demanding 3D titles.
NVIDIA SLI Ready
Revolutionary platform innovation intelligently scales graphics performance up to 2x. Combine multiple NVIDIA GeForce-base graphics cards with an NVIDIA nForce SLI-based motherboard. Rigorous testing and certification process for unmatched stability and compatibility.
Dual Channel DDR3 2800(OC)
DDR3 2800 OC is able to raise processor and RAM clock up to 2800MHz through capable RAM in overclock mode.
PCI EXPRESS 3.0
The next generation of PCI Express 3.0 accelerates on 32 GB/s rate which effectively delivers double of PCIe 2.0 bandwidth. PCIe 3.0 enhances the encoding scheme to eliminate 20% overhead data to deliver higher transmission speed and better performance.
RAID 0, 1, 5, 10
Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 5(Block Interleaved Distributed Parity), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.
8 Channel High Definition Audio
Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Delivers transfer speed ten times faster than conventional 10 / 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.
The latest generation Super Speed USB 3.0 Card is able to transfer data 10 times faster than USB 2.0. An innovative power management system provide better energy saving and carry more power to recharge more USB rechargeable devices. USB 3.0 Card is compatible with USB 2.0 to add more convenience and excellent performance.
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
The signal quality and the Max cable length is 2x longer than the conventional one. It also supports external HDD hot plug and keyed connector end for fool-proof.
Front USB 3.0
Front USB 3.0 solves the trouble of connecting USB port at back panel. Front USB 3.0 with fastest transmission speed allows plugging USB devices in front USB port of your desktop to offer more convenience and time saving.
eBLU - BIOS Live Update Utility
ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.
eOC - Easy Over Clock Utility
Easy Over Clock Utility is a easy and simply overclocking tools that provides user-friendly windows operation interface for novices and overclockers, with clicking on your mouse only you can get much higher performance of CPU quickly. It is available for download and updated online to get the latest version. Combine with ECS MIB technology to challenge undiscovered extreme overclocking than ever before.
eDLU - Drivers Live Update Utility
ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
eSF(ECS Smart Fan Utility)
ECS Smart Fan Utility provides smart and user friendly way to adjust fan speed depending on PCs system loading and temperature. It offers five modes to adjust fan speed within safe range without entering BIOS for smart, easy and silent environment.
EZ Charger technology provides 3 times current than general USB port in off mode for USB devices. It’s useful and excellent, especially for the iPhone, iPad and iPod touch devices that need a large amount of current for faster recharging within less time.
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
ECS Motherboards have been certified by EuP 2013 of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
- LGA1155 socket for new 3rd Generation Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® Processors
- DMI 5.0GT/s
- TDP: 125W
- Note: Please go to ECS website for the latest CPU support list.
- Intel® Z77 Express Chipset
- Dual-channel DDR3 memory architecture
- 4 x 240-pin DDR3 DIMM socket support up to 32 GB
- Support DDR3 up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600 DDR3 SDRAM
- Note1: Please go to ECS website for the latest Memory support list.
- Note2: DDR3_1 with DDR3_3 are the same channel, DDR3_2 with DDR3_4 are the same channel by Intel Specifications
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
- 2 x PCI Express Gen 3.0 x16 slots
- 2 x PCI Express x1 slots
- 2 x PCI slots
- 1 x Mini PCI Express x1 slot
• Supports Mini SATA
• Supports Mini PCI Express
- (When using two VGA cards, the bandwidth is x8; when using one VGA card, the bandwidth is x16.)
- Support by Intel® Z77
• 2 x Serial ATA 3.0Gb/s devices (SATA2 1/ 2)
• 2 x Serial ATA 6.0Gb/s devices (SATA3 3/ 4)
• RAID0, RAID1, RAID5, RAID 10 configuration
- Support by ASMEDIA ASM1061
• 2 x Serial ATA 6.0Gb/s devices (SATA3 5/ 6)
- Realtek ALC892 8-Ch High Definition audio CODEC
- Compliant with HD audio specification
- Realtek 8111E Gigabit Lan
|Rear Panel I/O
- 4 x USB 3.0 ports
- 4 x USB 2.0 Ports
- 1 x D-sub(VGA)
- 1 x HDMI Port
- 1 x DVI Port
- 1 x RJ45 LAN connector
- 1 x Audio port (Line-in,4x Line-out, SPDIF out)
- 1 x eSATA 3Gb/s port
- 1 x HDMI
|Internal I/O Connectors & Headers
- 1 x 24-pin ATX Power Supply connector
- 1 x 8-pin ATX Power Supply Connector
- 1 x 4pin CPU_FAN connectors
- 1 x 3-pin SYS_FAN connector
- 1 x 3-pin PWR_FAN connector
- 1 x USB 2.0 header support additional 2 USB ports with EZ charger technology
- 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
- 2 x Serial ATA 3Gb/s connectors (SATA2 1/ 2)
- 4 x Serial ATA 6Gb/s connectors (SATA3 3/ 4/ 5/ 6)
- 1 x COM header
- 1 x Clear CMOS header
- 1 x Case Open header
- 1 x Buzzer
- 1 x SPDIF out header
- 1 x Front panel switch/LED header
- 1 x Front panel audio header
- AMI BIOS with 64Mb SPI Flash ROM
- Support ECS M.I.B X Utility
- Supports Plug and Play
- Supports ACPI & DMI
- Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor
- Audio, LAN, can be disabled in BIOS
- F7 hot key for boot up devices option
- Support over-clocking
- Supports Dual Display (Intel has Three Display)
- Support GUI UEFI BIOS
- Support Milti-language BIOS Utility
- Support eBLU
- Support eOC
- Support eDLU
- Support eSF
- Support EZ Charger
