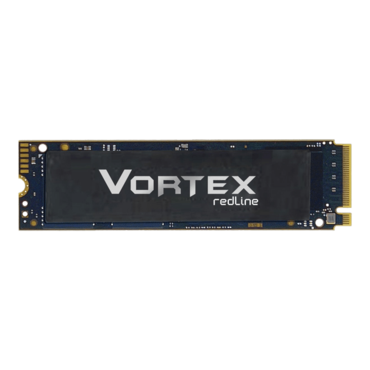

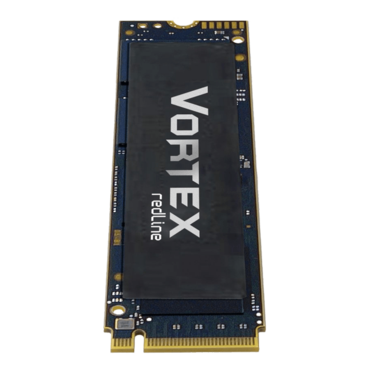

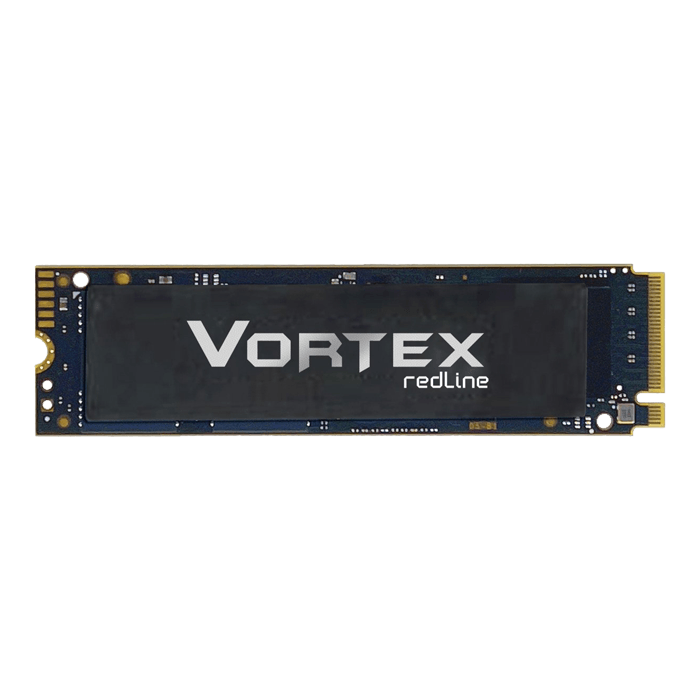

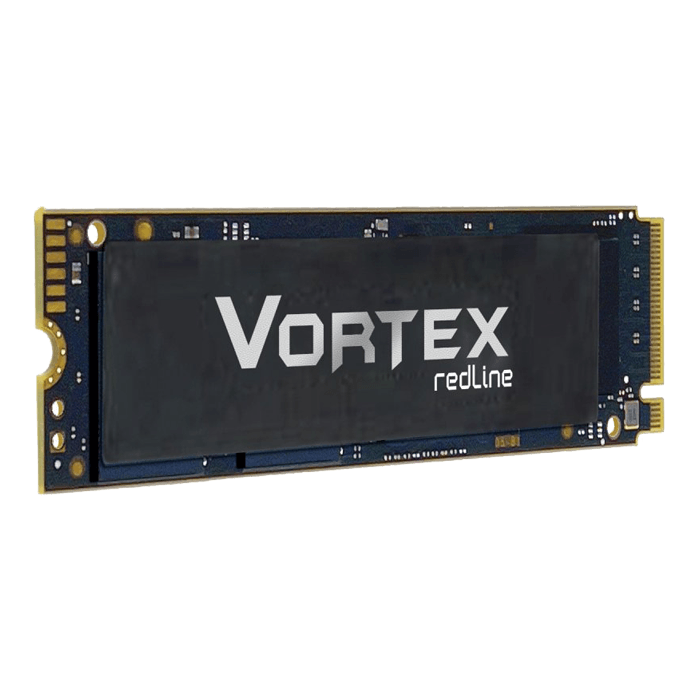

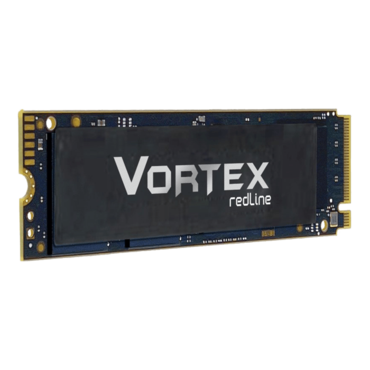

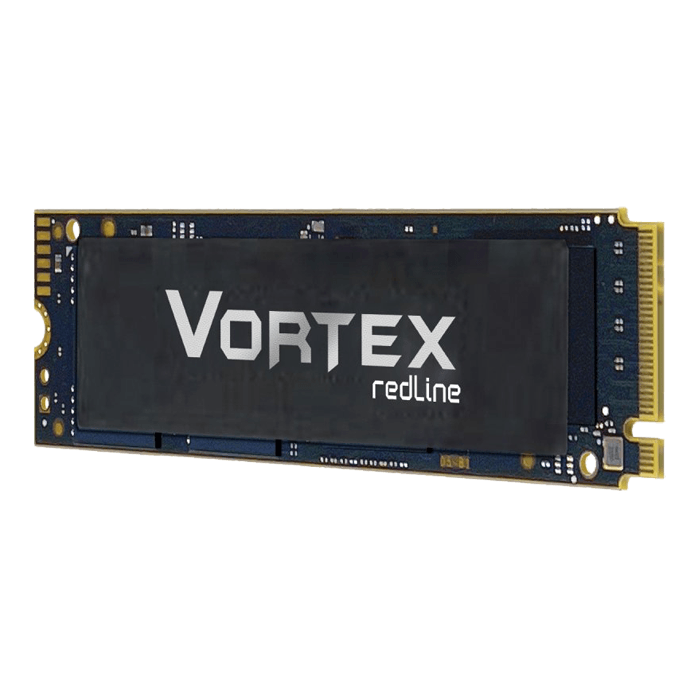

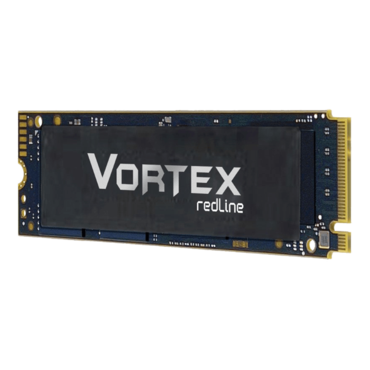

4TB Vortex, 7415 / 6800 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
Quantity:
- SKU: 17378153
- Manufacturer: MUSHKIN
- MPN: MKNSSDVT4TB-D8
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$313.92
| General | |
| Brand | Mushkin Enhanced |
| Series | Vortex |
| Model | MKNSSDVT4TB-D8 |
| Type | M.2 (2280) Internal Solid State Drive (SSD) |
| Used For | Consumer |
| UPC | 846651035707 |
| Physical | |
| Form Factor | M.2 (2280) |
| Capacity | 4TB |
| Interface | PCIe Gen4 x4 NVMe 1.4 |
| Controller | InnoGrit IG5236 |
| Height | 3.8mm |
| Width | 80.0mm |
| Depth | 22.0mm |
| Weight | 7g |
| Performance | |
| Max Sequential Read | Up to 7415MB/s |
| Max Sequential Write | Up to 6800MB/s |
| Max 4K Random Read IOPS | Up to 730,000 |
| Max 4K Random Write IOPS | Up to 1,500,000 |
| MTBF | 1,500,000 hours |
| TBW | 1000TB |
| Features | |
| Features | MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected |
| - Built-in LDPC ECC provides the most-powerful data correction level in use today | |
| - End-to-end data path protection | |
| - Global wear-leveling evens program/erase counts across data blocks to extend lifespan | |
| 2GB DDR4 DRAM | |
| SLC caching accelerates burst performance | |
| L1.2 power mode support for ultra-low power consumption | |
| NVMe Security Erase support | |
| NVMe Deallocate function support (NVMe equivalent of TRIM command) | |
| High-reliability 3D NAND flash | |
| S.M.A.R.T. support | |
| User-upgradeable firmware | |
| Temperature sensor | |
| RoHS, FCC, CE | |
| Power Consumption (Idle): 0.1W | |
| Power Consumption (Active): Up to 7W | |
| Max sequential speeds and IOPS measured using CrystalDiskMark 8.0.1 x64. | |
| Environmental | |
| Operating Temperature | 0°C-70°C |
| Storage Temperature | -40°C-85°C |
| Max Shock Resistance | 1500G |
| Power Supply | 3.3V DC |
