Ultra Fast Application Performance

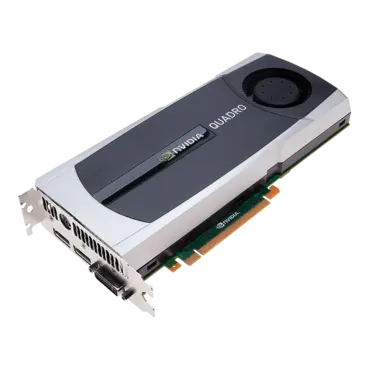

Offering 2.5 GB of GDDR5 graphics memory, 352 NVIDIA CUDA™ parallel processing cores and built on the innovative Fermi architecture, the NVIDIA Quadro 5000 by PNY is a true technological breakthrough delivering ultra fast performance across a broad range of design, animation and video applications.
The NVIDIA Quadro 5000 by PNY graphics board significantly raises the bar for high performance visualization and computation providing Microsoft DirectX 11.0, OpenGL 4.0 and Shader Model 5.0 hardware acceleration and the ability to drive a variety of display types including: CRTs, Digital Flat Panels, Projectors and HDTVs.
Features & Benefits:
Next-Generation NVIDIA® CUDA™ Architecture
Breakthrough NVIDIA CUDA parallel computing architecture, code named Fermi, tightly integrates advanced visualization and compute features delivering performance that greatly accelerates professional workflows.
Fast 64-Bit Floating Point Precision
Industry’s fastest double precision floating point performance enabling accurate results on mission-critical applications, including computer-aided-design, finite element analysis to computational fluid dynamics.
Error Correcting Code (ECC) Memory
Meets strict requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations. Offers protection of data in memory to enhance application data integrity.
NVIDIA GigaThread™ Engine
Provides up to 10x faster context switching compared to previous generation architectures, concurrent kernel execution, and improved thread block scheduling.
Dual Copy Engines
Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.
NVIDIA® Scalable Geometry Engine™
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
High-Quality Display Connectors
Attaches to ultra-high-resolution panels producing phenomenal photorealistic image quality from a range of display connectors. Through the GPU, supports two active connectors including, dual-link DVI-I with up to 3840 x 2400 @ 24Hz,
DisplayPort with up to up to 2560 x 1600 @ 60Hz, or HDMI from a cable.
Professional 3D Stereo Synchronization
Enables robust control of stereo effects through a dedicated 3-pin mini-DIN connector between the graphics card and 3D stereo hardware.
- Microsoft Windows 7 (64-bit and 32-bit)
- Microsoft Windows Vista (64-bit and 32-bit)
- Microsoft Windows XP (64-bit and 32-bit)
- Linux® - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
- Solaris®
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA® GigaThread™engine with dual copy engines
- Shader Model 5.0 (OpenGL 4.0 and DirectX 11)
- Optimized compiler for Cg and Microsoft HLSL
- Up to 16K x16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 128-bit floating point performance
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- DivX (version 3.11 and later), and Flash (10.1 and later)
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA CUDA Parallel Processing Architecture
-
API support includes:
- CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran - NVIDIA® Parallel DataCache™ hierarchy (configurable L1 and unified L2 caches)
- Error correction codes (ECC) memory
- 64 KB of RAM (configurable partitioning of shared memory and L1 cache)
- Full IEEE 754-2008 - 32-bit and high performance 64-bit double precision
- Dual Warp Scheduler (schedules and dispatches simultaneously instructions from two independent warps)
Advanced Display Features
- 30-bit color (10-bit per each red, green, blue channel)
- Support for any combination of two connected displays
- Dual DisplayPort (up to 2560 x 1600 @ 60Hz and 1920x1200 @ 120Hz)
- Dual-link DVI-I output (up to 2560 x 1600 @ 60Hz and 1920x1200 @ 120Hz)
- Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 @ 85Hz)
- DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
- DisplayPort 1.1a, HDMI 1.3a, and HDCP support
- 10-bit internal display processing (hardware support for 10-bit scanout for both windowed desktop and full screen, only available on Windows and Linux with Aero disabled)
- NVIDIA® 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- NVIDIA® nView® multi-display technology
DisplayPort and HDMI Digital Audio
-
Support for the following audio modes:
- Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), andMPEG-2/MPEG-4 AAC - Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
Minimum System Requirements
- Intel® Core i5, i7 or Xeon processor, or AMD Phenom® or Opteron® class processor
- PCIe x16 expansion slot with open adjacent slot
- Windows® 7 (any Edition), Vista (any edition), XP (Home or Professional), or Linux
- 1GB or more of system memory, 2GB recommended
- 100MB of available disk space for full driver installation
- Blu-ray, DVD-ROM or CD-ROM drive
- DisplayPort, DVI or VGA compatible display(s)
GPU Memory | 2.5 GB GDDR5 |
Memory Interface | 320-bit |
Memory Bandwidth | 120 GB/sec |
CUDA Parallel Processing Cores | 352 |
ECC (Error Correcting Code) | Yes |
High Performance Double Precision | Yes |
Maximum Power Consumption | 152 W |
Physical Dimensions | 4.376”(H) x 9.75” (L) Dual Slot |
Display Connectors | DVI-DL (1), DP (2), Stereo (1) |
Number of displays supported | 2 |
DP | Yes |
DVI | Yes |
VGA | Yes |
Graphics Bus | PCI Express 2.0 x16 |
Thermal Solution | Active |
3D Vision Pro | Support via 3-pin mini DIN |
G-Sync | Version Available |
HD SDI Capture/Output | Version Available |
Maximum Digital Resolution | 2560 x 1600 @ 60Hz |
APIs | DirectX 11, OpenGL 4.0 and Shader Model 5 |
Warranty | 3 Year Warranty |
PNY Part Number | VCQ5000-PB |
