RM51, 4x 3.5", 4x 2.5" Internal Bays, No PSU, E-ATX, Black, 5U Chassis
Quantity:
- SKU: 15978535
- Manufacturer: SILVERSTONE
- MPN: RM51
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$462.30

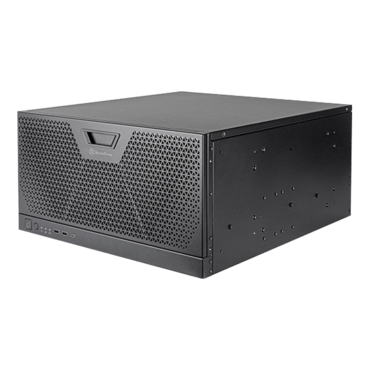

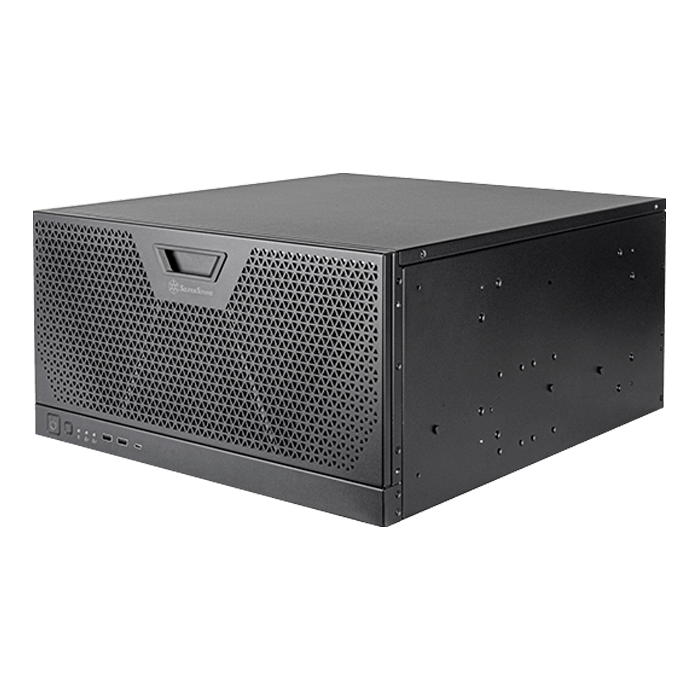

RM51, 4x 3.5", 4x 2.5" Internal Bays, No PSU, E-ATX, Black, 5U Chassis
Dual-purpose chassis – Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
- Supports up to SSI-EEB motherboards
- Includes 2 x Air Penetrator 184i PRO fans for superior air intake
- Supports 360mm liquid cooling radiator
- 8 PCI expansion slots
- Reserved sliding rail mounting holes for quick rail installation
- Includes one USB Type-C interface
- Upright or horizontal placement flexibility
- Secondary PSU can be installed if 3.5" drive cage is to be left unoccupied
| Model No. | SST-RM51 |
| Chassis form factor | 5U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Material | Steel |

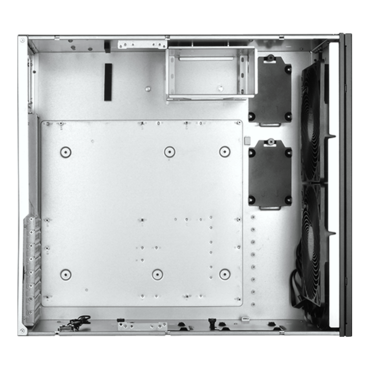

| Drive Bay | |
| Internal |
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) 2.5" x 4 |
| Power Supply |
Primary PSU slot: PS2 (ATX) / Mini Redundant Secondary PSU slot: SFX (occupies 3.5" bracket) |
| Limitation of PSU |
160mm~190mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
| Cooling system | |

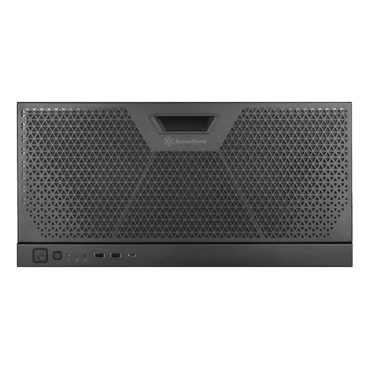

| Front |
120mm x 3 / 180mm x 2 (2 x Air Penetrator 184i PRO fans included) |

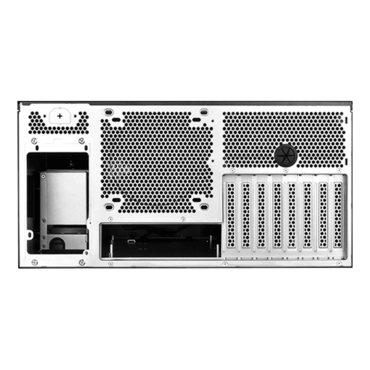

| Rear |
Rear I/O: 120mm x 1 / 140mm x 1 Rear fan cage: 80mm x 2 |
| Radiator support | |
| Front | 120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 (120mm x 3) / 360mm x 1 (180mm x 2) |
| Rear | 120mm x 1 |
| Limitation of CPU cooler |
Height w/ expansion card retainer: 181mm Height w/o expansion card retainer: 192mm |
| Expansion card |
Length: 455mm (without installing front fans and radiators) Width w/ expansion card retainer: 157mm Width w/o expansion card retainer: 198mm |
| Expansion Slot | 8 |
| Front I/O Port |
USB Type-C x 1 USB 3.0 x 2 |
| LED indicator |
Power status x 1 HDD activity x 1 LAN activity x 2 |
| Dimension |
Incl. rear fan cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters Excl. rear fan cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters Incl. rear fan cage: 17.3" (W), 8.66" (H), 20.87" (D) Excl. rear fan cage: 17.3" (W), 8.66" (H), 19.1" (D) |
| Net Weight | 10.6 kg |
| Extra | Side switch for chassis intrusion security |
