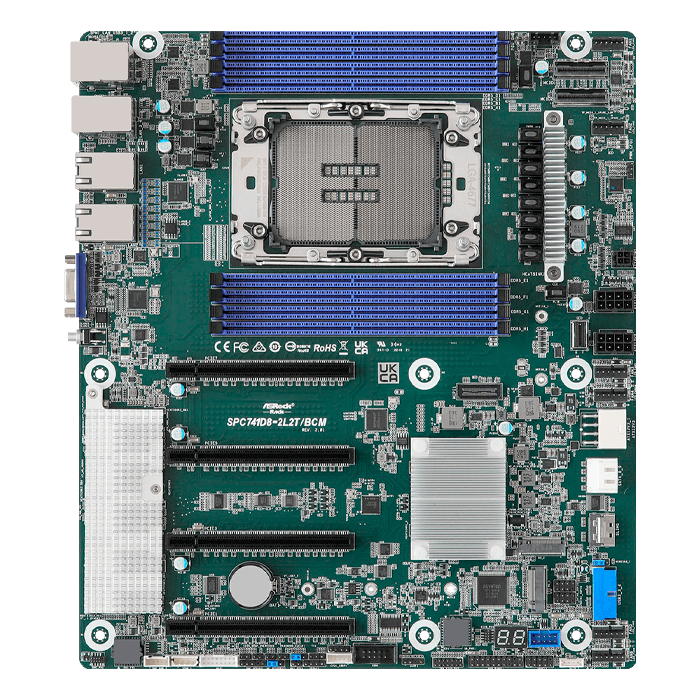

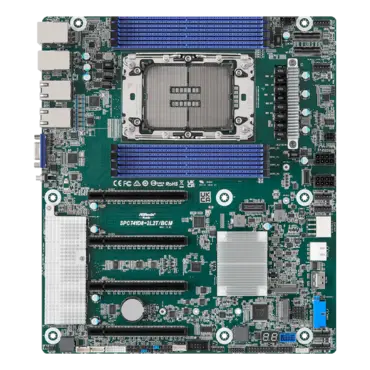

SPC741D8-2L2T/BCM, Intel® C741, LGA 4677, DDR5-4800 512GB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 2, 1GbLAN / 2, 10GbLAN / 2, CEB Retail
Quantity:
- SKU: 16109130
- Manufacturer: ASROCK
- MPN: SPC741D8-2L2T/BCM
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$807.28
- CEB (12'' x 10.5'')
- Supports 4th Gen Intel® Xeon® Scalable Processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
- 4 PCIe5.0 / CXL1.1 x16
- 1 MCIO (PCIe3.0 x4 or 4 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
- 2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)
- Up to 12 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- Remote Management (IPMI)
| Physical Status | |
| Form Factor | CEB |
| Dimensions | 12'' x 10.5'' (304.8 x 266.7 mm) |
| Processor System | |
| CPU | Supports 4th Gen Intel® Xeon® Scalable Processors |
| Socket | Single Socket E (LGA 4677) |
| Thermal Design Power | 350W |
| Chipset | Intel® C741 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | 288-pin DDR5 RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM |
RDIMM: 64GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB |
| Max. DIMM Frequency | 4800 MT/s |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 |
SLOT7: PCIe5.0 / CXL1.1 x16 [CPU] SLOT5: PCIe5.0 / CXL1.1 x16 [CPU] SLOT3: PCIe5.0 / CXL1.1 x16 [CPU] SLOT1: PCIe5.0 / CXL1.1 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot |
1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH] 1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH] |
| Others |
2 MCIO (PCIe5.0 x8) [CPU] 1 MCIO (PCIe3.0 x4 or SATA 6Gb/s) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage |
Intel® C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10): 1 MCIO 4i for 4 SATA, 8 SATA via optional M2U2-HD-4G M.2 device |
| Ethernet | |
| Additional GbE Controller |
2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller |
ASPEED AST2600: 1 DB15 (VGA) |

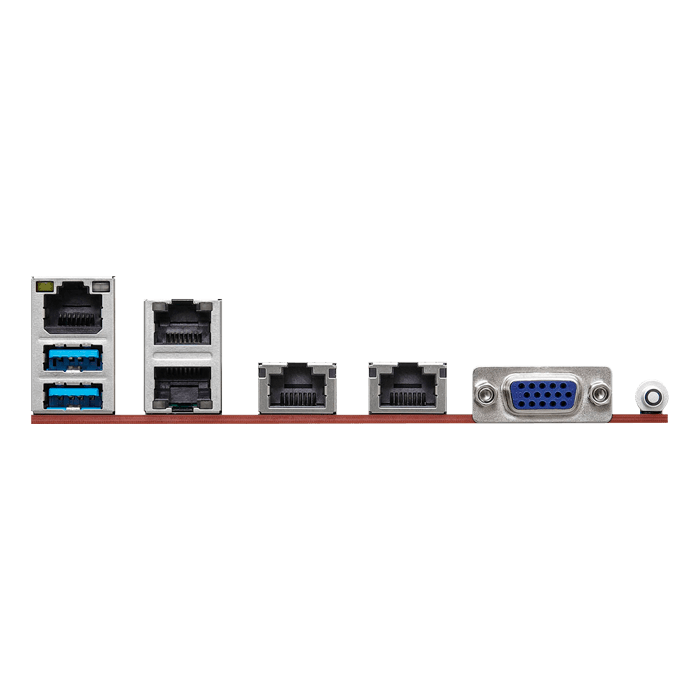

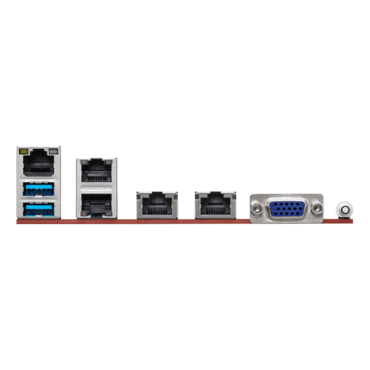

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 Micro-Fit (4-pin, ATX PSU signal), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| Speaker Header | 1 (4-pin) |
| Fan Header | 6 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| SGPIO Header | 2 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1 Temperature sensing |
| Fan |
Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
