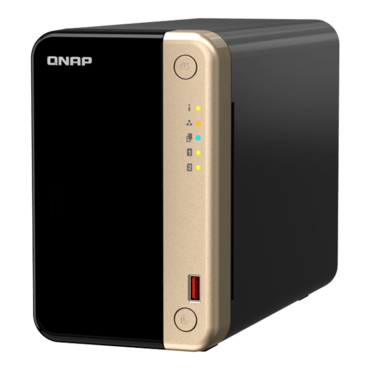

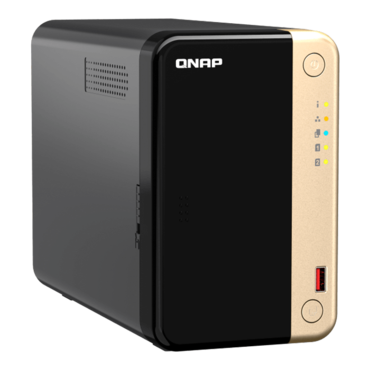

TS-264-8G, 2-bay NAS Server, Intel® Celeron® N5095, 4-core 2.9GHz processor, 8GB RAM (not expandable), SATA 6Gb/s, 2.5GbLAN / 2, Type-A USB 3.2 Gen 2 / 2, 65W PSU
Quantity:
- SKU: 15305043
- Manufacturer: QNAP
- MPN: TS-264-8G-US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$478.12
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | ✔ |
| Encryption Engine | ✔(AES-NI) |
| Hardware-accelerated Transcoding | ✔ |
| System Memory | 8 GB on board (non-expandable) |
| Maximum Memory | 8 GB |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay |
2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
| SSD Cache Acceleration Support | ✔ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | ✔ |
| Jumbo Frame | ✔ |
| PCIe Slot |
1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | ✔(Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 168 × 105 × 226 mm |
| Weight (Net) | 1.55 kg |
| Weight (Gross) | 2.68 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 65W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 18.288 W |
| Power Consumption: Operating Mode, Typical |
29.086 W
Tested with drives fully populated.
|
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✔ |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
