Low-Cost HDMI Quad Screen Splitter/Multiviewer

SKU: 12224879

Manufacturer: NTI

MPN: splitmux-hd-4lc

Availability: Unknown


Price: $540.97
or as low as $17/month
Quantity:

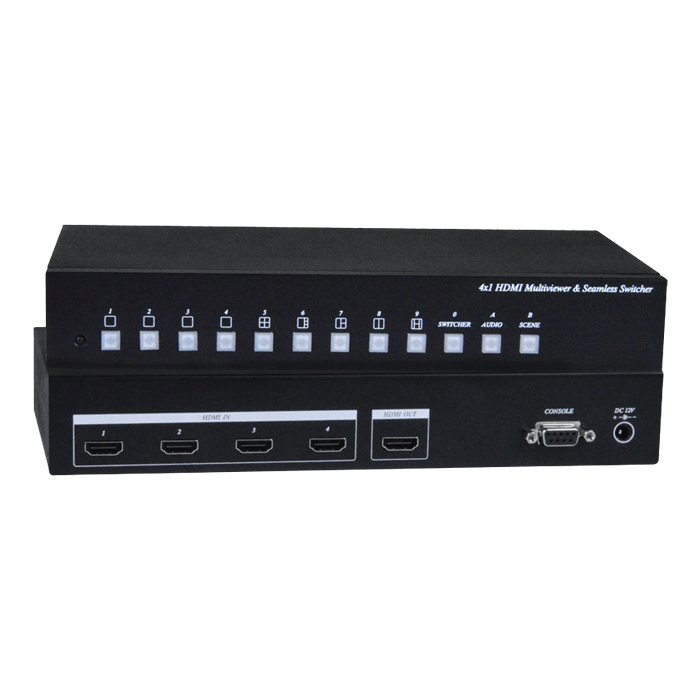

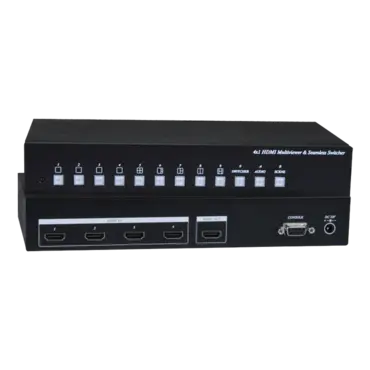

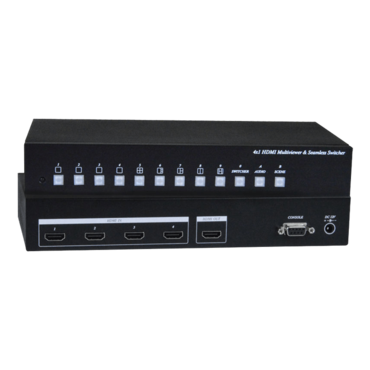

Low-Cost HDMI Quad Screen Splitter/Multiviewer
  • Low-Cost HDMI Quad Screen Splitter/Multiviewer allows you to simultaneously display real-time HDMI video from four different sources on a single monitor
  • Quad, Dual, Picture in Picture, and Full Screen display modes
  • Supports HDTV resolutions to 1080p
  • Specifications
  • Video Input
    • Four female HDMI connectors
    • Input resolutions: 480p, 576i, 720p, 1080i, 1080p.
    • Supports digital HDMI devices such as DVD/Blu-Ray players, satellite receivers and HDTV tuners.
    • A DVI source can be connected by using the
      DVI-HD-xx-MM cable (not included).
    • Supports HDCP 1.2
    Video Output
    • One female HDMI connector.
    • Output resolutions: 720p, 1080p.
    • Supports HDCP 1.2
    Power
    • Input: 100 to 240 VAC at 50 to 60 Hz via AC adapter. (US AC adapter included.)
      • Optional universal power plug adapters available (not included).
    • Output: 12 VDC, 1A
    • Power consumption: 7W.
    Dimensions
    • WxDxH (in): 9.96x5.66x1.57 (253x144x40 mm)
    Regulatory Approvals
    • CE, RoHS
    • TAA compliant
    Environmental
    • Operating temperature: 14 to 158°F (-10 to 70°C).
    • Storage temperature: -4 to 185°F (-20 to -85°C).
    • Operating and storage relative humidity: 95% non-condensing RH.
    Cables
    • Use HD-xx-MM HDMI cables to connect to an HDMI source or display up to 100 feet away from the multiviewer.
      • Video Input: Supports HDMI cables up to 75ft
      • Video Output: Supports HDMI cables up to 100ft
    • Use DVI-HD-xx-MM cables to connect a DVI or HDMI source to the multiviewer.
    • Cables not included.
    Warranty
    • Two years
    Package Includes
    • One HDMI multiviewer
    • One 12V, 1A power supply
    • One IR remote
    • Wall mount screws
    • User manual
