Radeon™ RX 7700 XT Steel Legend 12GB OC, 2276 - 2599MHz, 12GB GDDR6, Graphics Card

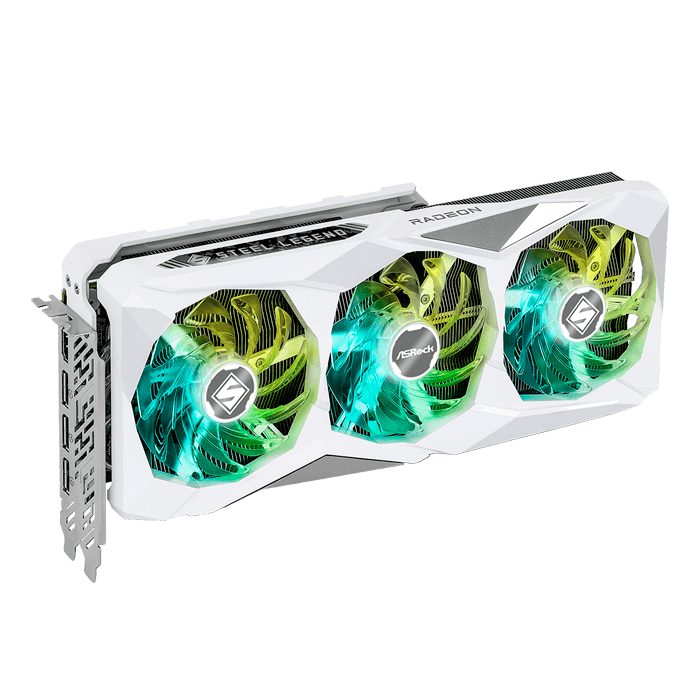

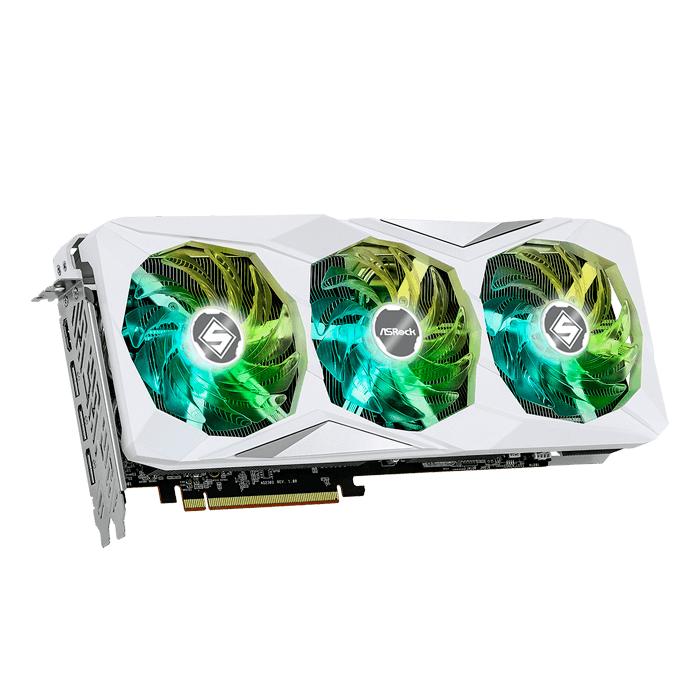

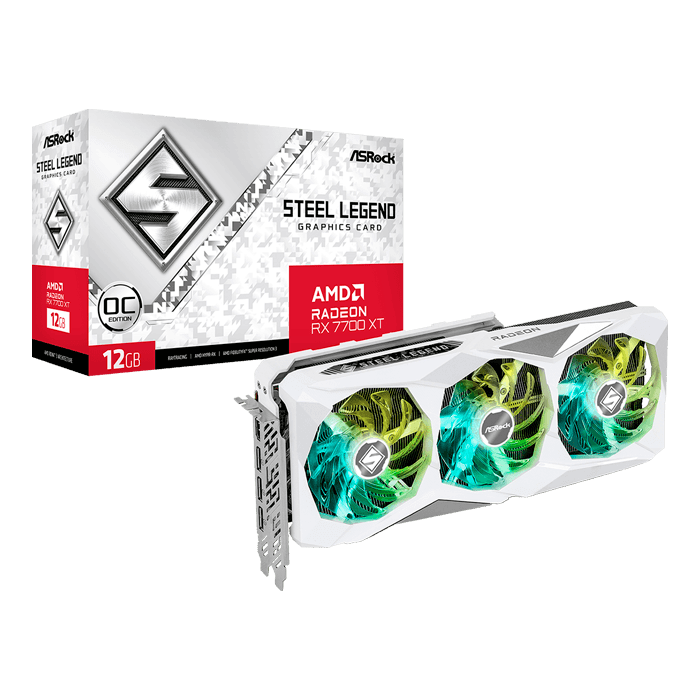

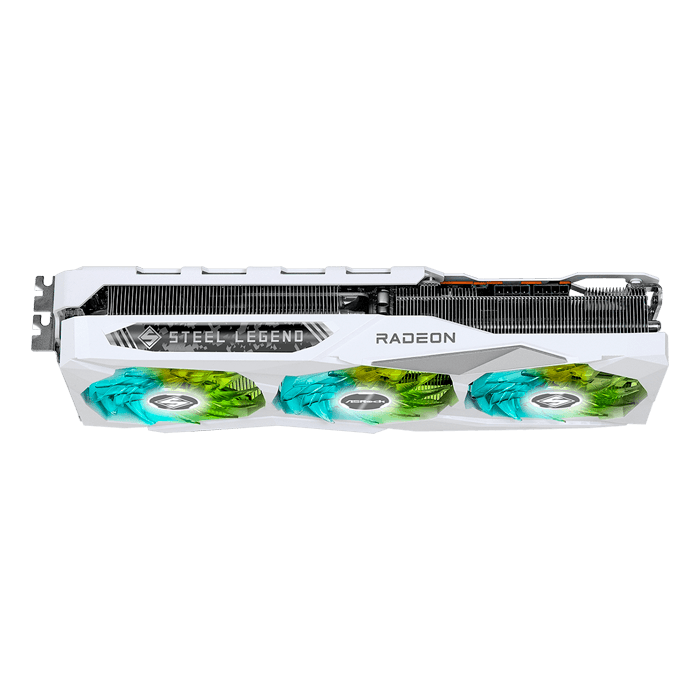

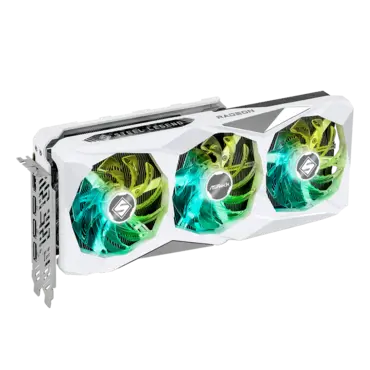

ASRock Radeon™ RX 7700 XT Steel Legend 12GB OC (RX7700XT SL 12GO). With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
Clock: GPU / Memory
- Boost Clock*: Up to 2599 MHz / 18 Gbps
- Game Clock**: 2276 MHz / 18 Gbps
Key Specification
- AMD Radeon™ RX 7700 XT GPU
- 12GB GDDR6 on 192-Bit Memory Bus
- 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 48MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
Key Features
- Polychrome SYNC

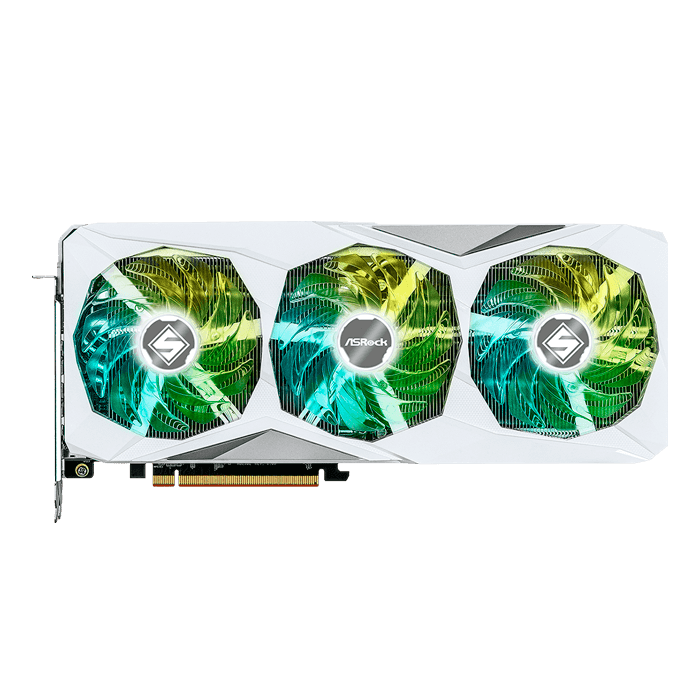

- Triple Fan Design

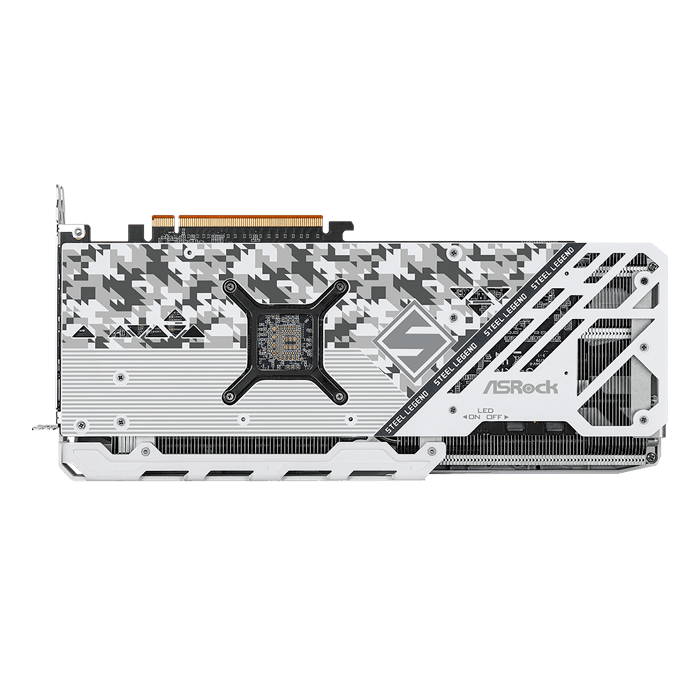

- Stylish Metal Backplate
- Reinforced Metal Frame
- Striped Axial Fan
- Air Deflecting Fin
- Ultra-fit Heatpipe
Graphics Engine | - AMD Radeon™ RX 7700 XT |
Bus Standard | - PCI® Express 4.0 x16 |
DirectX | - 12 Ultimate |
OpenGL | - 4.6 |
Memory | - 12GB GDDR6 |
Engine Clock |
- Boost Clock*: Up to 2599 MHz - Game Clock**: 2276 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Stream Processors | - 3456 |
Memory Clock | - 18 Gbps |
Memory Interface | - 192-bit |
Resolution | - Digital Max Resolution: 7680 x 4320 |
Interface |
- 3 x DisplayPort™ 2.1* - 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously. |
HDCP | - Yes |
Multi-view | - 4 |
Recommended PSU | - 750W |
Power Connector | - 1 x 8-pin |
Accessories | - 1 x Quick Installation Guide |
Dimensions | - 304 x 131 x 56 mm, 2.8-slot |
Net Weight | - 1242 g |
