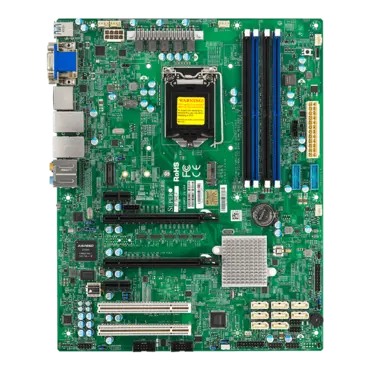

X11SAE-F, Intel C236, LGA 1151, DDR4-2133 64GB ECC UDIMM / 4, HDMI, M.2, USB 3.1, GbLAN / 2, ATX Retail

SKU: 10159087

Manufacturer: SUPERMICRO


Availability: Available

Price: $302.43
or as low as $10/month
  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5,
    Intel® 6th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • 2x PCI-E 3.0 x16 (run at 16/NA or 8/8), 2x PCI-E 3.0 x1, and 2x 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
  • 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
  • I/O: 1x VGA, 2x COM, TPM header
  • 6x USB 3.0 (2 rear + 4 via header)
    6x USB 2.0 (2 rear + 4 via headers)
    2x USB 3.1 (10Gbps, rear)
Physical Stats:
  • Form Factor: ATX
  • Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
  • Intel® 6th Generation Core™ i3 series
  • Intel® 6th Generation Core™ i5 series
  • Intel® 6th Generation Core™ i7 series
  • Intel® Xeon® processor E3-1200 v5 series
  • Socket H4 (LGA 1151) supported; CPU TDP support Up to 95W TDP
System Memory:
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    4x 288-pin DDR4 DIMM slots, Up to 64GB DDR4 ECC UDIMM
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
  • DIMM Sizes: 4GB, 8GB, 16GB
  • Memory Voltage: 1.2 V
  • Corrects single-bit errors
    Detects double-bit errors (using ECC memory)
On-Board Devices:
  • Chipset: Intel® C236
  • SATA: Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10; + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid support)
  • Network Controllers:Single LAN with Intel® Ethernet Controller I210-AT
    (Share with IPMI)
    Single LAN with Intel® PHY I219LM LAN controller
  • Audio: ALC 888S HD Audio
  • Graphics: Aspeed AST2400 BMC
  • USB:
    • 6 USB 2.0 ports (2 rear, 4 via header)
    • 6 USB 3.0 ports (2 rear, 4 via header)
    • 2 USB 3.1 ports (2 rear)
  • Video Output:
    • 1 DVI - D, 1 DP (DisplayPort), 1 HDMI, 1 VGA
      1 Aspeed AST2400 BMC
      ***VGA is for IPMI only***
  • Serial Port/Header: 2 COM Ports (2 headers)
  • TPM: 1 TPM 2.0 Header
Expansion Slots:
  • 2 PCI-E 3.0 x16
  • 2 PCI-E 3.0 x1
  • 2 - 5V PCI 32bit
    ***2 PCIe x16 slots are running at x16/NA or x8/x8 ***
System BIOS:
  • BIOS Features:
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
  • Software: IPMI2.0, SPM, SuperDoctor® 5, Watchdog
  • Power Configurations:
    • ACPI Power Management
    • Keyboard Wakeup from Soft-Off
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
PC Health Monitoring:
  • Voltage: +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
  • FAN:
    • Total of 5 fan headers supporting up to 5 fans
      Fan speed control
      Overheat LED indication
  • Temperature:
    • CPU thermal trip support
      I2C temperature sensing logic
      Thermal Monitor 2 (TM2) support
  • LED:
    • CPU / System Overheat LED
      Suspend static indicator LED
      UID/Remote UID
  • Other Features:
    • 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
