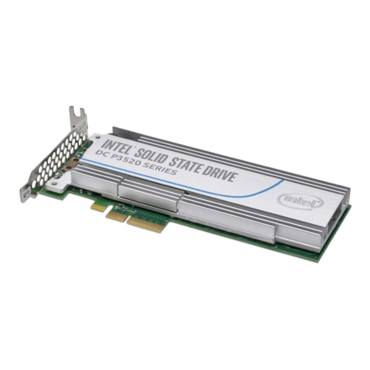

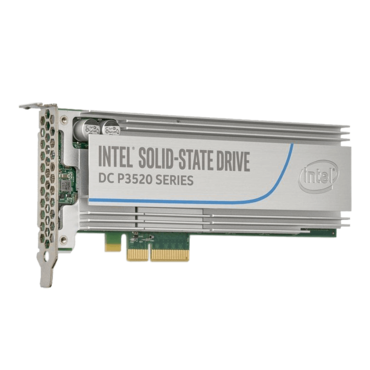

1.2TB DC P3520, 1700 / 1300 MB/s, 3D NAND MLC, PCIe 3.0 x4 NVMe, AIC SSD

  • SKU: 10768615
  • Manufacturer: INTEL
  • MPN: SSDPEDMX012T701
  • Availability: LOW STOCK
Starting At
Capacity 1200 GB
Status Launched
Launch Date Q3'16
Lithography Type 3D NAND G1 MLC
Sequential Read (up to) 1700 MB/s
Sequential Write (up to) 1300 MB/s
Random Read (100% Span) 320000 IOPS
Random Write (100% Span) 26000 IOPS
Latency - Read 20 µs
Latency - Write 20 µs
Power - Active Avg. 11W (Write), 9W (Read)
Power - Idle 4W
Vibration - Operating 2.17 GRMS
Vibration - Non-Operating 3.13 GRMS
Shock (Operating and Non-Operating) 1000 G/0.5msec
Operating Temperature Range 0°C to 55°C
Endurance Rating (Lifetime Writes) 1480 TBW
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Warranty Period 5 yrs
Package Specifications
Weight Up to 190gm
Form Factor HHHL (CEM2.0)
Interface PCIe NVMe 3.0 x4
Advanced Technologies
Enhanced Power Loss Data Protection Yes
Hardware Encryption AES 256 bit
High Endurance Technology (HET) No
Temperature Monitoring and Logging Yes
End-to-End Data Protection Yes
