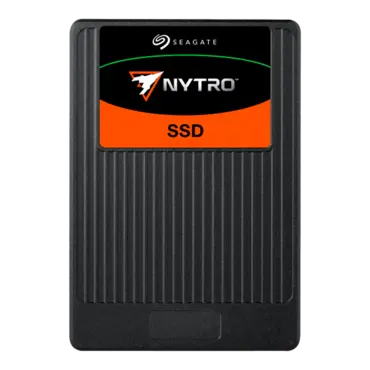

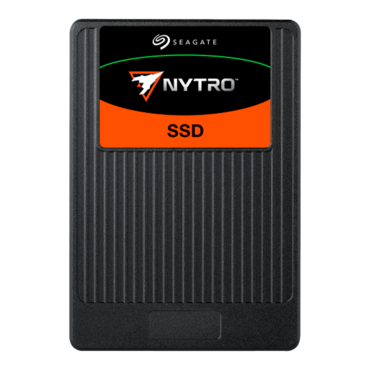

1.6TB Nytro 5560S 15mm, 14900 / 4300 MB/s, 3D eTLC NAND, PCIe NVMe 5.0 x4, SED, TCG Enterprise SSC, U.2 2.5" SSD
- SKU: 18637988
- Manufacturer: SEAGATE
- MPN: XP1600LE70046
- Availability: CONTACT US
Price
$606.04
| Specifications | Nytro 5560S 2.5-inch—Mixed Use |
| Capacity | 1.6TB |
| SED Model | XP1600LE70046 |
| Features | |
| Interface (Single Port) |
PCIe Gen5 x4, NVMe™ 2.0 |
| Interface (Dual Port) | - |
| NAND Flash Type | 3D eTLC |
| Form Factor | 2.5 in × 15 mm |
| Performance | |
|
Sequential Read (MB/s) Sustained, 128 KB |
14,900 |
|
Sequential Write (MB/s) Sustained, 128 KB |
4,300 |
| Random Read (IOPS) Sustained, 4 KB | 2,400,000 |
| Random Write (IOPS) Sustained, 4 KB | 450,000 |
| Average Read Latency (μs), 4 KB QD1 | 60 |
| Average Write Latency (μs), 4 KB QD1 | 10 |
| Endurance/Reliability | |
|
Lifetime Endurance (Drive Writes per Day) |
3 |
| Total Bytes Written (TB) | 8,700 |
|
Non-recoverable Read Errors per Bits Read |
1 per 10E18 |
|
Mean Time Between Failures (MTBF, hours) |
2,500,000 |
| Limited Warranty (years) | 5 |
| Power Management | |
| 12V Average Active Power - Read (W) | 16 |
| 12V Average Active Power - Write (W) | 15 |
| Average Idling Power (W) | 5 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0 to 70 |
| Temperature, non-operating | –40 to 85 |
| Temperature Change Rate/Hr, Max (°C) | 30 |
| Shock, 0.5ms (Gs) | 1,500 |
| Physical | |
| Height (mm/in, max) | 14.9/0.587 |
| Width (mm/in, max) | 70.1/2.760 |
| Depth (mm/in, max) | 100.4/3.953 |
| Weight (g/lb, max) | 190/0.419 |
| Carton Unit Quantity | 10 |
