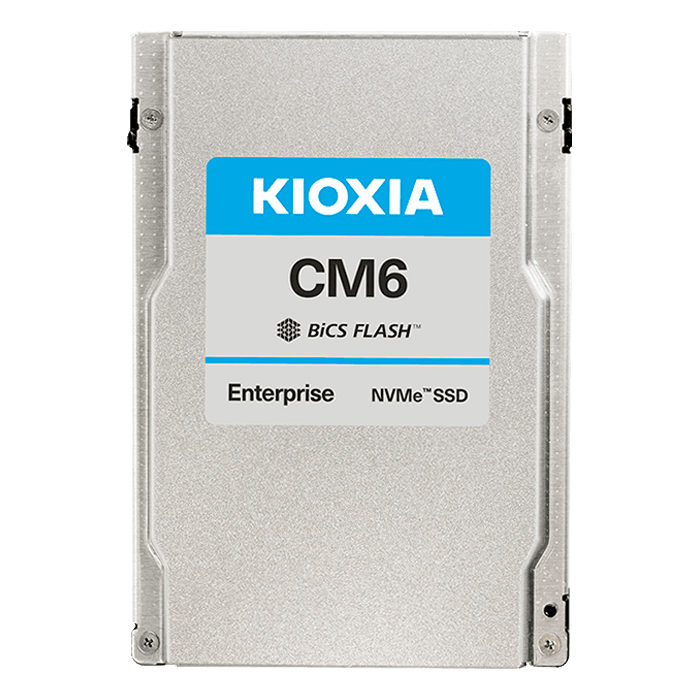

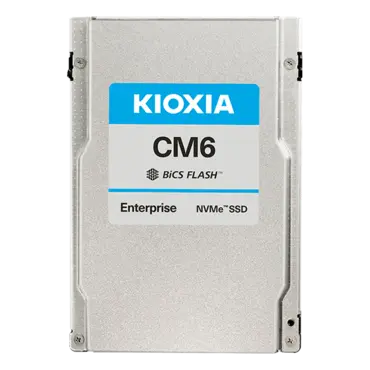

1.92TB CM6-R 15mm, 6900 / 2800 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, SED, TCG Enterprise/Opal SSC, U.3 2.5" SSD
KIOXIA 1.92TB KCM6DRUL1T92. The CM6-R series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 4.0 and NVMe™ 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.
- PCIe® 4.0, NVMe™ 1.4 specification compliant
- Form factor: 2.5-inch, 15 mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASHTM 96-layer 3D TLC memory
- SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes
- Dual-port design for high availability applications
- 6th generation, two-die failure recovery and double parity protection
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Data security options: SIE, SED, FIPS 140-2[1, 2, 3, 4, 5]
- Six power mode settings
SED Model Number | KCM6DRUL1T92 |
Capacity | 1,920 GB |
Physical | |
Interface Specification | PCIe® 4.0, NVMe™ 1.4 |
Interface Speed | 64 GT/s (Gen4 1x4, 2x2) |
Memory Type | BiCS FLASH™ TLC |
Performance in single port (1x4) mode(Up to) | |
Sustained 128 KiB Sequential Read | 6,900 MB/s |
Sustained 128 KiB Sequential Write | 2,800 MB/s |
Sustained 4 KiB Random Read | 1,300,000 IOPS |
Sustained 4 KiB Random Write | 100,000 IOPS |
Power Requirements | |
Supply Voltage | 12 V ± 10%, 3.3 Vaux ± 15% |
Power Consumption (Active) | 16 W Typ. |
Power Consumption (Ready) | 5.0 W Typ. |
Reliability | |
MTTF | 2,500,000 hours |
Warranty | 5 years |
DWPD | 1 |
Mechanical | |
Height | 15.0 mm + 0, - 0.5 mm |
Width | 69.85 ± 0.25 mm |
Length | 100.45 mm Max |
Weight | 130 g Max. |
Environmental | |
Temperature (Operating) | 0 °C to 70 °C |
Humidity (Operating) | 5 % to 95 % R.H. |
Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) |
Shock (Operating) | 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) |
