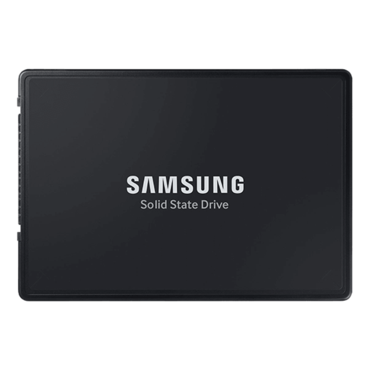

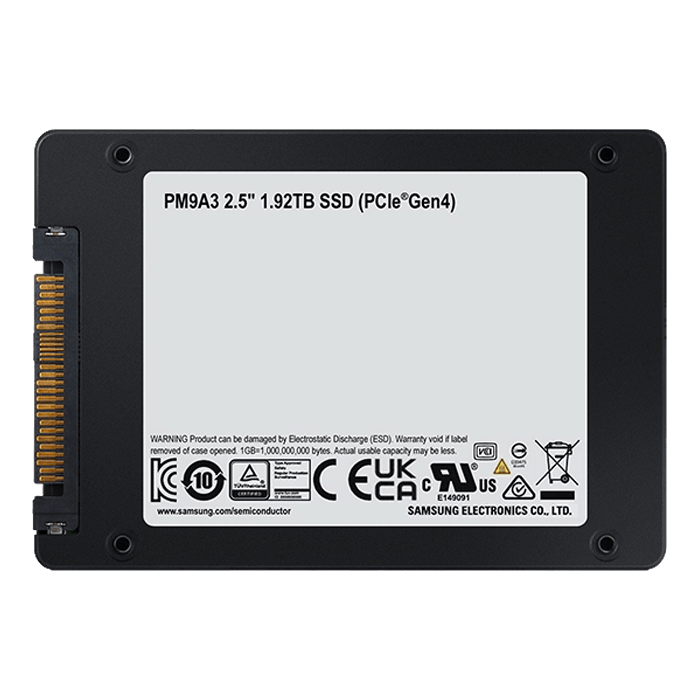

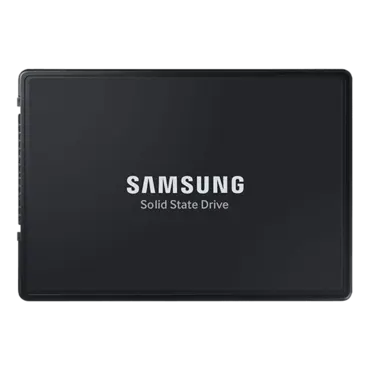

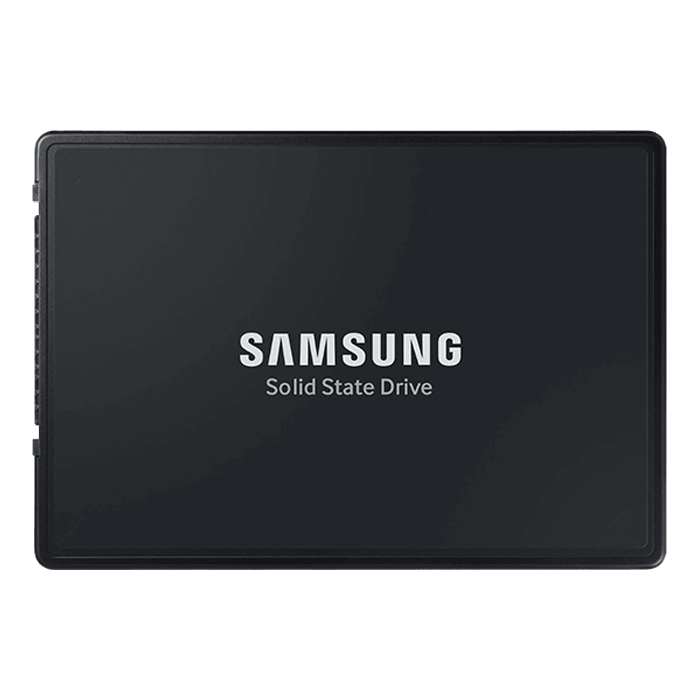

1.92TB PM9A3 7mm, 6800 / 2700 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, TCG Opal SSC, U.2 2.5" SSD

  • SKU: 15024627
  • Manufacturer: SAMSUNG
  • MPN: MZ-QL21T900
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Interface PCIe 4.0 x4 NVMe 1.4
Series PM9A3
Data Center Yes
Capacity 1.92TB
Key Features
Sequential Read Speed Up to 6,800 MB/s
Sequential Write Speed Up to 2,700 MB/s
Random Read Speed Up to 850,000 IOPS
Random Write Speed Up to 130,000 IOPS
Controller Samsung Elpis Controller
NAND Flash Samsung V-NAND TLC
Cache Memory Samsung Low Power SDRAM
Trim Support Yes
AES Encryption AES 256-bit Encryption
Security TCG/Opal (Class 0)
S.M.A.R.T. Support Yes
GC (Garbage Collection) Auto Garbage Collection Algorithm
WWN Support NGUID Supported
Power Consumption (W) Active (Read/Write): 10.0 W / 12.5 W
Idle: Max. 3.5 W
Voltage 12.0V ± 10% Allowable voltage
Reliability (MTBF) 2.0 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature 0 - 70 °C Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Form Factor
Product U.2 2.5-inch 7mmT
Dimensions (W x H x D)
Product 100 X 69.85 X 6.8 (mm)
Product Max 90.0 g
Management SW Samsung SSD DC Tool kit
Product 5 Year Limited Warranty or 3,504 TBW Limited Warranty
